Fiber Optic ATR-Probe for Harsh Environment (Diamond ATR)
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2014
Description

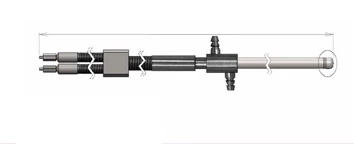

This is a Fiber Optic ATR-Probe designed specifically for harsh environments
art photonics' FlexiSpec® probe assemblies include new type of Attenuated Total Reflection (ATR-) probes designed for harsh application conditions. HT-ATR immersion IR-fiber probes can be used for process-spectroscopy in near-IR & mid-IR range to monitor reactions in-line in a broad temperature range from -100° to +250°C.
They can resist to high pressures up to 200 bar and used with FTIR or any other IR-spectrometers and spectral sensors in automated process control with process-interfaces.

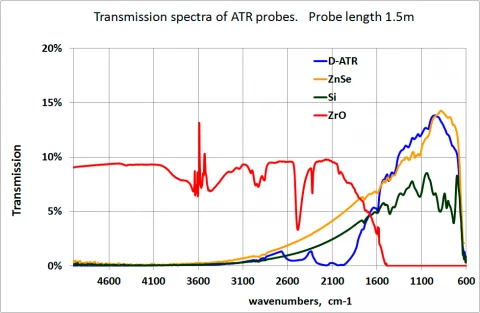

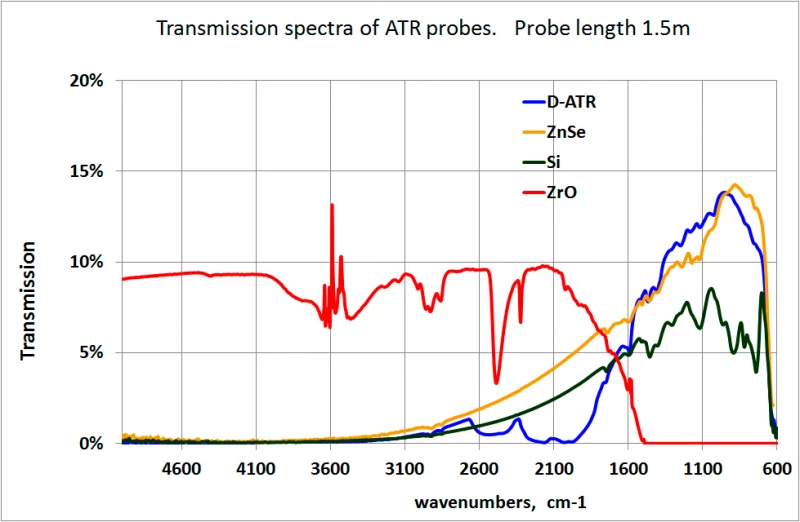

art photonics offers several different models of these probes as follows
Di- ATR (this model)
Transmission range: 5.2-17μm (600-1900 cm-1)
Fiber type: PIR-900/1000 (Silver Halide)
Temperature range: -150°C / +250°C
Pressure (max): 200 Bar
Si- ATR
Transmission range: 3.2-17μm (600-3100 cm-1)
Fiber type: PIR-900/1000 (Silver Halide)
Temperature range: -150°C / +250°C
Pressure (max): 100 Bar
ZrO₂- ATR
Transmission range: 1.1-6.5μm (1550-9000 cm-1)
Fiber type: IR-500/550 (Chalcogenide glass)
Temperature range: -150°C / +200°C
Pressure (max): 100 Bar
ZnSe-ATR
Transmission range: 3.2-17μm (600-3100 cm-1)
Fiber type: PIR-900/1000 (Silver Halide)
Temperature range: -150°C / +250°C
Pressure (max): 10 Bar
Please inquire using the "REQUEST QUOTE" button above.
Fiber Optic ATR-Probe for Harsh Environment (Diamond ATR)
Specifications |
|
|---|---|
| Transmission: | 5.2 – 17 um |
| Temperature Range: | -100 – 250 C |
| Cooling Air Flow Parameters: | Excess pressure 0.5Bar, Flow 2300l/h |
| Shaft Length: | 300 mm |
| Shaft Material: | Hastelloy C22 |
| Protective Tube Material: | Liquid Tight SS-Conduit, KOPEX-Tube |
| Fiber Type: | PIR-900/1000 Silver Halide |
| Total Length: | 1.5 m |
| Input / Output Connectors: | Long SMA |
| Inner Temperature Control: | Inside shaft to control ATR tip temperature |
| Shaft Diameter: | 12 mm |
| Length Of Legs: | 500 mm |
| Minimal Bending Radius: | 130 mm |
| Pressure (max): | 200 Bar |
Features
Fiber Optic ATR-Probe for Harsh Environment (Diamond ATR) offer significant benefits:
- High throughput in selected parts of near-IR and mid-IR spectra
- ATR-tip shaped for immersion in liquid flow without dead zone
- Robust for industrial applications in harsh environment up to 250°C
- Resistant to high pressure
- Compatible with all spectrometers and automated process-interfaces
Applications
art photonics' Fiber Optic ATR-Probe for Harsh Environment is an ideal choice for the following applications:
- Remote Reaction Monitoring in-line in temperature range -100/+250°C
- PAT applications in lab, pilot plant or industry with process-interfaces for automated process control
- Polymerization Process Control
- In-situ IR-Spectroscopy for PAT in Chemical, Petrochemical, Atomic, Bio-pharmaceutical & Food Industry
Frequently Asked Questions
A Fiber Optic ATR-Probe is a device used for process-spectroscopy in near-IR and mid-IR range to monitor reactions in-line in a broad temperature range from -100° to +250°C.
The transmission range of the Di-ATR model is 5.2-17μm (600-1900 cm-1).
The maximum pressure that the ZnSe-ATR model can resist is 10 Bar.
The Fiber Optic ATR-Probe for Harsh Environment is ideal for remote reaction monitoring in-line in temperature range -100/+250°C, PAT applications in lab, pilot plant or industry with process-interfaces for automated process control, polymerization process control, and in-situ IR-Spectroscopy for PAT in Chemical, Petrochemical, Atomic, Bio-pharmaceutical & Food Industry.
The temperature range of the ZrO₂-ATR model is -150°C / +200°C.
