Page 2 - Fiber Optic Switch

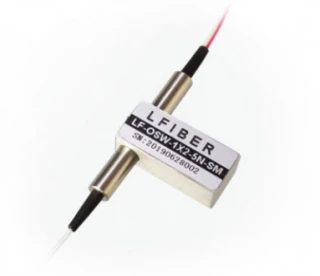

Fiber Optical Switch 1x2
Lfiber Optic Limited
Add to watch list
Fiber Optical Switch 1x2
Compare
Fiber Optical Switch (single-mode or multimode fiber switch) are passive components that selectively transmit, redirect or block optical signals from a given input port to a given output port in an optical fiber transmission line. These Fiber Optical Switch are important devices for optical communication systems where they are ...

Specifications
Number Of Ports: 1-2
Wavelength Range: 1260-1620nm
Insertion Loss (typical): ≤0.6 dB
Return Loss: ≥50 dB
Connector: None, FC/PC, FC/APC, SC/PC, SC/APC, LC/PC, LC/APC, Others
...
Data Sheet
Rack-Mounted Optical Switch
Lfiber Optic Limited
Add to watch list
Rack-Mounted Optical Switch
Compare
A fiber optic switch represents the single most dynamic element in an optical network which traditionally can switch data between different ports of a network. Lfiber’s rack-mounted optical switch is a good choice for deployment in optical switching-based or demultiplexing-based systems, with some of them incorporated in ...

Specifications
Number Of Ports: 1-128
Wavelength Range: 400-2000nm
Insertion Loss (typical): 0.5 dB
Return Loss: SM (9/125) ≥ 50; MM (50/125, 62.5/125) ≥ 30 dB
Connector: None, LC/PC, LC/APC, SC/PC, SC/APC, FC/PC, FC/APC, Custom
...
Data Sheet
Polarization Maintaining Fiber Optical Switch
Lfiber Optic Limited
Add to watch list
Polarization Maintaining Fiber Optical Switch
Compare
Redirects or blocks optical signals from a given input port to a given output port in an optical fiber transmission line. At the same time, by using Panda PM fibers it’s able to maintain a well-defined state of polarization (SOP) of the light. Lfiber’s polarization maintaining (PM) fiber optical switch features less than ...

Specifications
Number Of Ports: 1-256
Wavelength Range: 400-2000nm
Insertion Loss (typical): 0.6 dB
Return Loss: ≥ 50 dB
Fiber Type: Panda PM fibers
...
Data Sheet

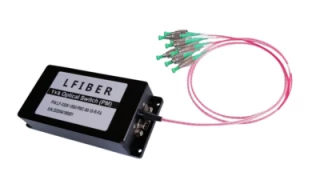

PM Fiber Optical Switch
Lfiber Optic Limited
Add to watch list
PM Fiber Optical Switch
Compare
LFIBER\'s polarization maintaining fiber switches (PM fiber optical switches) are passive optical devices that open or close an optical circuit, or switch the light beam from one fiber to another one. By utilizing high-precision optics and mechanical technology, LFIBER designs and manufactures polarization maintaining fiber optical ...

Specifications
Number Of Ports: 1-256
Wavelength Range: 400-2000nm
Insertion Loss (typical): ≤ 1.0 dB
Return Loss: ≥ 50 dB
Fiber Type: Panda PM fibers
...
Data Sheet
FSP 3000 OpenFabric OTN Fabric Switch
ADVA Optical Networking
Add to watch list
FSP 3000 OpenFabric OTN Fabric Switch
Compare
Our FSP 3000 OpenFabric™ is an innovative open OTN fabric switch with a fully flexible and open front plane. Proprietary adapters are no longer needed. Services can be connected directly or via standard OTN-based transponders. With a 400Gbit/s switching capacity and seven pluggable interfaces within a one-slot module, our OpenFabric™ ...

Specifications
Number Of Ports: 1-7
Wavelength Range: 500-1700nm
Insertion Loss (typical): - dB
Return Loss: - dB
Data Sheet
Nanona High Speed And Low Loss Optical Switch
Boston Applied Technologies Inc
Add to watch list
Nanona High Speed And Low Loss Optical Switch
Compare
Boston Applied Technologies, Inc. (BATi)’s NanonaTM ultra-fast optical switch redirects the optical signal from one channel to another at speeds faster than 50ns. The switch utilizes the breakthrough OptoCeramic™ electro-optic material developed by BATI researchers for a variety of light-control applications. Combining the ...

Specifications
Number Of Ports: 1-1
Wavelength Range: 1310-1550nm
Insertion Loss (typical): 1 dB
Return Loss: 0.2 dB
Data Sheet
FiberLink 3514
Communications Specialties Inc
Add to watch list
FiberLink 3514
Compare
FiberLink® is one of the industry’s largest selections of fiber optic transmission products for use in the most demanding of broadcast and professional video applications. Designed and engineered by broadcast engineers for broadcast and professional AV applications, FiberLink delivers robust performance without breaking the ...

Specifications
Number Of Ports: 1-4
Wavelength Range: 1511-1571nm
Insertion Loss (typical): -- dB
Return Loss: -- dB
Data Sheet
Edge 640 Optical Circuit Switch
Calient Technologies
Add to watch list
Edge 640 Optical Circuit Switch
Compare
CALIENT’s Edge|640™ Optical Circuit Switch is a variant of the S-Series product family that is purpose built for reconfiguring connectivity between network or device domains. Like the S‑Series Optical Circuit Switch, the Edge|640™ is transparent to data speed and is protocol agnostic. Consequently, it offers very high bandwidth and ...

Specifications
Number Of Ports: 320-640
Wavelength Range: 400-1600nm
Insertion Loss (typical): -- dB
Return Loss: -- dB
Data Sheet
S Series Optical Circuit Switch
Calient Technologies
Add to watch list
S Series Optical Circuit Switch
Compare
The explosion of data driven by video, AR/VR, and new high-bandwidth 5G-enabled services is accelerating the demand for flexible, scalable, high-bandwidth networks. As a direct consequence, Data Centers and Network Service Providers are under constant pressure to deliver more bandwidth and computing power at lower and lower cost per ...

Specifications
Number Of Ports: 80-320
Wavelength Range: 400-1600nm
Insertion Loss (typical): -- dB
Return Loss: -- dB
Data Sheet
Fiber Optic Switches
Fibersense & Signals Inc
Add to watch list
Fiber Optic Switches
Compare
FIBERSENSE’s switches provide highly accurate switching for reliable routing of channels in fiber optic networks and systems. They are also ideal for use in system and network  testing, fault location instrumentation and testing, and sensor systems. The large channel  configurations available provide switching architecture ...

Specifications
Number Of Ports: 1-1
Wavelength Range: 1000-1600nm
Insertion Loss (typical): -- dB
Return Loss: -- dB
Data Sheet
SwitchBox FC 9-125 Duplex Singlemode Fiber Optic A-B Desktop Switch SBXD-S3
Fiber Plus International
Add to watch list
SwitchBox FC 9-125 Duplex Singlemode Fiber Optic A-B Desktop Switch SBXD-S3
Compare
The SwitchBox® Mechanical Fiber Optic A/B Switch is a device that accepts optical inputs from a primary path and a secondary path to provide manual switching in the event that the primary path signal is broken or otherwise disrupted. Easily switch both transmit and receive fibers to a backup path. No optical to electrical conversion ...

Specifications
Number Of Ports: 1-6
Wavelength Range: 400-1600nm
Insertion Loss (typical): 0.25 dB
Return Loss: -- dB
Data Sheet
SwitchBox FC 9-125 Duplex Singlemode Fiber Optic A-B Desktop Switch SBXD-S2
Fiber Plus International
Add to watch list
SwitchBox FC 9-125 Duplex Singlemode Fiber Optic A-B Desktop Switch SBXD-S2
Compare
The SwitchBox® Mechanical Fiber Optic A/B Switch is a device that accepts optical inputs from a primary path and a secondary path to provide manual switching in the event that the primary path signal is broken or otherwise disrupted. Easily switch both transmit and receive fibers to a backup path. No optical to electrical conversion ...

Specifications
Number Of Ports: 1-6
Wavelength Range: 400-1600nm
Insertion Loss (typical): 0.25 dB
Return Loss: -- dB
Data Sheet
SwitchBox FC 9-125 Duplex Singlemode Fiber Optic A-B Desktop Switch SBXD-S1
Fiber Plus International
Add to watch list
SwitchBox FC 9-125 Duplex Singlemode Fiber Optic A-B Desktop Switch SBXD-S1
Compare
The SwitchBox® Mechanical Fiber Optic A/B Switch is a device that accepts optical inputs from a primary path and a secondary path to provide manual switching in the event that the primary path signal is broken or otherwise disrupted. Easily switch both transmit and receive fibers to a backup path. No optical to electrical conversion ...

Specifications
Number Of Ports: 1-6
Wavelength Range: 400-1600nm
Insertion Loss (typical): 0.25 dB
Return Loss: -- dB
Data Sheet
Optical Switch
Kylia
Add to watch list
Optical Switch
Compare
The Optical Switch (OSW) is a manual device that enables to switch from one input fiber to 8 output fibers.

Specifications
Number Of Ports: 1-8
Wavelength Range: 1520-1620nm
Insertion Loss (typical): 1 dB
Return Loss: 35 dB
Data Sheet
Optical A-B Switch OS-3121
Liteway Inc
Add to watch list
Optical A-B Switch OS-3121
Compare
The LuxLink OS-3121 is a fiber optic switch that can be controlled remotely or through a front panel switch. The optical path through the unit is purely optical; That is, there is no optical to electrical to optical conversion. There is no electrical loss or electrical bandwidth limit on the fiber optic path. The optical path ...

Specifications
Number Of Ports: 3-7
Wavelength Range: 850-1550nm
Insertion Loss (typical): 1.3 dB
Return Loss: -50 dB
Data Sheet
Optical Bypass Switch OS-3122
Liteway Inc
Add to watch list
Optical Bypass Switch OS-3122
Compare
The LuxLink OS-3122 is a \"fiber optic relay\" that can be electrically controlled. The optical path through the units is purely optical; i.e. there is no optical to electrical to optical conversion. There is no electrical loss or electrical bandwidth limit on the fiber optic path. The optical path can be select via a front ...

Specifications
Number Of Ports: 3-7
Wavelength Range: 850-1550nm
Insertion Loss (typical): 1.1 dB
Return Loss: -50 dB
Data Sheet
Optical A-B Switch OS-5111
Liteway Inc
Add to watch list
Optical A-B Switch OS-5111
Compare
The LuxLink OS-5111 is a fiber optic relay that can be electrically controlled remotely or through a front panel switch.. The optical path through the units is purely optical. There is no optical to electrical to optical conversion. There is no electrical loss or electrical bandwidth limit on the fiber optic path. The optical ...

Specifications
Number Of Ports: 3-7
Wavelength Range: 850-1550nm
Insertion Loss (typical): 1.3 dB
Return Loss: -50 dB
Data Sheet
OP720 High Channel Count Optical Switch
Santec Corporation
Add to watch list
OP720 High Channel Count Optical Switch
Compare
The OP720 is an optical switch for single mode and multimode applications. This individual 1xN optical switch is available with up to 48 channels in a 2U format and incorporates the latest technology in high-speed switching. With high repeatability and low loss, the OP720 is ideally suited for high channel count optical devices such ...

Specifications
Number Of Ports: 2-48
Wavelength Range: 1-1nm
Insertion Loss (typical): 1.2 dB
Return Loss: -- dB
Data Sheet
OP720 Optical Switch
Santec Corporation
Add to watch list
OP720 Optical Switch
Compare
The OP720 is an optical switch for single mode or multimode applications available in a slim-line, ultra-compact frame. This optical switch is USB powered and incorporates the latest technology in high-speed switching.  With high repeatability and low loss, the OP720 is ideally suited for high channel count optical devices such ...

Specifications
Number Of Ports: 2-24
Wavelength Range: 1-1nm
Insertion Loss (typical): 1.2 dB
Return Loss: -- dB
Data Sheet
Cisco 2911 Router - CISCO2911/K9
UsedCisco.com
Add to watch list
Cisco 2911 Router - CISCO2911/K9
Compare
Cisco 2911 Router - CISCO2911/K9.

Specifications
Number Of Ports: 1-1
Wavelength Range: 1-1nm
Insertion Loss (typical): -- dB
Return Loss: -- dB
Data Sheet
WS-C3750X-48PF-S 48 Ports Catalyst Switch
UsedCisco.com
Add to watch list
WS-C3750X-48PF-S 48 Ports Catalyst Switch
Compare
The Cisco Catalyst 3750-X and 3560-X Series Switches are an enterprise-class lines of stackable and standalone switches, respectively. These switches provide high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as Cisco Stack Power, IEEE 802.3at Power over Ethernet Plus ...

Specifications
Number Of Ports: 1-48
Wavelength Range: 1300-1600nm
Insertion Loss (typical): -- dB
Return Loss: -- dB
Data Sheet
WS-C3750X-48P-S 48 Ports Catalyst Switch
UsedCisco.com
Add to watch list
WS-C3750X-48P-S 48 Ports Catalyst Switch
Compare
The Cisco Catalyst 3750-X and 3560-X Series Switches are an enterprise-class lines of stackable and standalone switches, respectively. These switches provide high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as Cisco Stack Power, IEEE 802.3at Power over Ethernet Plus ...

Specifications
Number Of Ports: 1-48
Wavelength Range: 1300-1600nm
Insertion Loss (typical): -- dB
Return Loss: -- dB
Data Sheet
Model MAC4
Universal Switching Corp
Add to watch list
Model MAC4
Compare
To support signal switching, distribution, and monitoring applications requiring large channel counts, the recommended system may be comprised of several units working in concert. Operation of such an array typically requires application specific control software. The MAC4 (Master Array Controller) is specifically designed to ...

Specifications
Number Of Ports: 10-100
Wavelength Range: 1300-1600nm
Insertion Loss (typical): -- dB
Return Loss: -- dB
Data Sheet
Series G2
Universal Switching Corp
Add to watch list
Series G2
Compare
Versatile and field proven, our Series G2 rack mount product line boasts numerous advanced design features, yet is is simple, compact, and cost effective. The series currently has twenty five types of standard modules, each with various configurations, giving the system designer many approaches to choose from. Any Series G2 module ...

Specifications
Number Of Ports: 10-100
Wavelength Range: 1300-1600nm
Insertion Loss (typical): 1 dB
Return Loss: 1 dB
Data Sheet
MIL-STD-1553 Bus Modular Switch Matrix
Universal Switching Corp
Add to watch list
MIL-STD-1553 Bus Modular Switch Matrix
Compare
Automating “patch panels” is a proven & effective method to reduce facility operating costs by increasing efficiency, productivity, repeatability, and reliability. Our BS1553F(X) unit is a modular high density 5RU automated patch unit that can be configured in symmetric or asymmetric configurations from 8x8 to 64x64 within the ...

Specifications
Number Of Ports: 8-64
Wavelength Range: 1300-1600nm
Insertion Loss (typical): -- dB
Return Loss: -- dB
Data Sheet
