Description

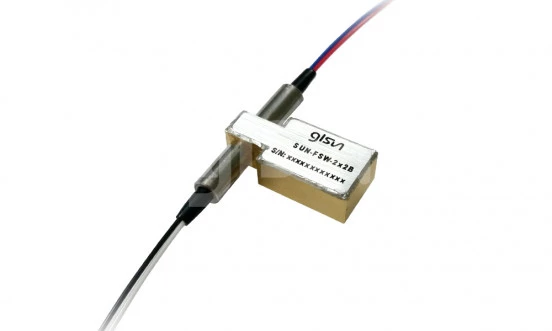

GLSUN SUN-FSW-2x2B Fiber Optic Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0×(W)12.6×(H)8.2mm. It is an ideal component for OADM, OXC, system monitoring and protection. With compact package, it can be easy to integrate into a high-density optical communication system.
GLSUN Optical Switch unifies different switch configurations of 1x1, 1x2, 1x3, 1x4, 1x8, 2x2B, Dual 1x2, Dual 2x2B, 1x1S, 1x2S, 2x2BS for both Single mode and Multimode onto the small package. It is widely used in #OADM,#OXC, monitoring and protection. It features excellent optical characteristics with wide operating wavelength range, fast switch speed, low IL, and low PDL. Its compact structure and small volume can meet the needs of customer\'s various design requires.

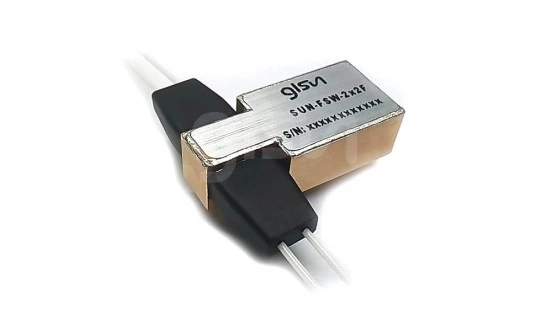

GLSUN 1x1 1x2 2x2 2x2B 1x4 1x8 Fiber Optic Switch
Specifications
Number Of Ports: | 2 – 2 |
---|---|
Wavelength Range: | 850 – 1300 nm |
Insertion Loss (typical): | 0.8 dB |
Return Loss: | 30 dB |
Dimension: | (L)27.0×(W)12.6×(H)8.2 ±0.2 mm |
Repeatability: | 0.02 dB |
Operating Voltage: | 3 or 5 V |
Operating Temperature: | -20 ~ +70 ℃ |
Storage Temperature: | -40 ~ +85 ℃ |
Features
- Low Insertion Loss
- Wide Wavelength Range
- Low Crosstalk
- High Stability, High Reliability
- Epoxy-free on Optical Path
- Latching and Non-latching
Applications
- R&D in Laboratory
- System Monitoring
- OADM
- MAN (Metropolitan Area Network)
- Network Security and Monitoring
Frequently Asked Questions
What are the main features of the optical switch?
The main features of the optical switch include low insertion loss, wide wavelength range, low crosstalk, high stability and reliability, epoxy-free optical path, and options for latching and non-latching.
What applications is the optical switch suitable for?
The optical switch is suitable for R&D in laboratories, system monitoring, optical add-drop multiplexing (OADM), metropolitan area networks (MAN), and network security and monitoring.
What is the wavelength range of the optical switch?
The wavelength range of the optical switch is 850±40 nm / 1300±40 nm and 1260~1650 nm.
What are the insertion loss specifications for the optical switch?
The insertion loss specifications are ≤0.5 dB for 1x1, ≤0.8 dB for 1x2/2x2B, and ≤1.0 dB for D1x2/D2x2B configurations.
What is the operating temperature range for the optical switch?
The operating temperature range for the optical switch is -20°C to +70°C.
How durable is the optical switch?
The optical switch has a durability of ≥10 million cycles.
What are the available connector options for the optical switch?
The available connector options include none, FC/PC, FC/APC, SC/PC, SC/APC, LC/PC, and LC/APC.
