Description
The 1x2 switch is all solid-state switching device without any moving parts. The switching of the optical light is realized by utilizing Faraday Effect. This is achieved using a patent protected non-mechanical configuration with solid-state all-crystal design which eliminates the need for mechanical movement. The microsecond fiber optic switch is designed to meet the most demanding switching requirements of reliability, durability, fast response, and continuous high frequency switching operation.

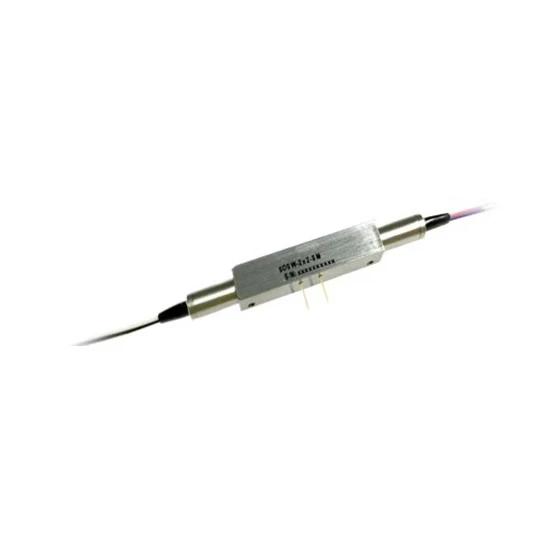

1x2 Solid-State Fiber Optic Switch
Specifications
| Number Of Ports: | 1 – 2 |
|---|---|
| Wavelength Range: | 1310 – 1565 nm |
| Insertion Loss (typical): | 0.9 dB |
| Return Loss: | 50 dB |
| Wavelength Range: | 1310, 1525~1565 nm |
| Insertion Loss: | 0.90 (Typ.); 1.20 (Max) dB |
| PDL: | 0.10 (Typ.); 0.20 (Max) dB |
| Return Loss: | ≥50 dB |
| Cross-talk: | ≥40 dB |
| Extinction Ratio: | ≥18 dB |
| Repeatability: | +/-0.02 dB |
| Durability: | >10 Billions cycles |
| Switching Speed: | <150 μs |
| Switching Type: | Latching |
| Storage Temperature: | -40~85 °C |
| Operating Temperature: | -5~70 °C |
| Maximum Optical Power: | 300 mW |
| Dimension: | 28×8.4×8.4 mm |
| Fiber Type: | SMF-28 |
Download Data Sheet
Features
- Low Insertion Loss
- Wide Wavelength Range
- High Crosstalk
- High Reliability
- Epoxy-free on Optical Path
- Latching
Applications
- Optical blocking
- Configurable operation
- System Monitoring
- Configurable OADM
Frequently Asked Questions
What is the Magneto Optical Switch?
The Magneto Optical Switch is a solid-state 1x2 or 2x1 switching device that operates without any moving parts, utilizing the Faraday Effect for optical light switching.
How does the Magneto Optical Switch work?
The switch uses a patent-protected non-mechanical configuration with a solid-state all-crystal design, eliminating the need for mechanical movement and achieving switching through the Faraday Effect.
What are the key features of the Magneto Optical Switch?
Key features include no moving parts, low insertion loss, wide wavelength range, high crosstalk, high reliability, epoxy-free optical path, and latching capability.
What applications are suitable for the Magneto Optical Switch?
The switch is suitable for applications such as optical blocking, configurable operation, system monitoring, and configurable OADM.
What are the specifications for the 1x2 configuration?
Specifications include a wavelength range of 1310, 1525~1565 nm, insertion loss of 0.90 dB (typical), return loss of ≥50 dB, cross-talk of ≥40 dB, and a switching speed of
What is the durability of the Magneto Optical Switch?
The switch has a durability of over 10 billion cycles.
What are the operating and storage temperature ranges for the switch?
The operating temperature range is -5 to 70°C, and the storage temperature range is -40 to 85°C.
