Description

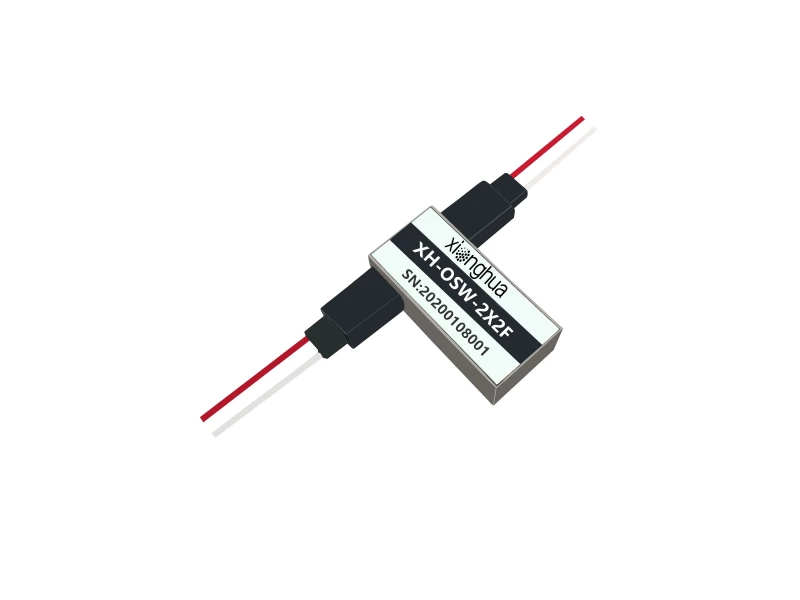

XH-OSW-2X2F optical switch is a kind of optical path control device, which has the function of controlling the optical path and converting the optical path; it can realize the two-way direct and cross function of the optical path. It plays an important role in optical communication applications. Optical switches are mainly used in multi-channel optical monitoring in optical transmission systems, LAN multi-light source/detector automatic switching, and optical sensing multi-point dynamic monitoring system optical test systems for optical fibers, optical devices, networks and field engineering optical cables Test; optical device installation and adjustment.

Specifications

Number Of Ports: 2 – 2
Wavelength Range: 1260 – 1650 nm
Insertion Loss (typical): 0.5 dB
Return Loss: 50 dB
Repeatability (dB): ≤ ±0.02
Switching Time (ms): ≤ 8
Transmission Power (mW): ≤ 500

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low insertion loss, wide wavelength range
  • Low channel crosstalk, high stability, high reliability
  • Simple control, small size, easy to embed in the circuit board
  • Locking and non-locking control types can be selected

Applications

  • Optical Signal Switching and Routing
  • Optical Network Monitoring
  • Testing of Fiber Optic Component
  • OTDR Testing



Frequently Asked Questions

What is the XH-OSW-2X2F optical switch used for?
The XH-OSW-2X2F optical switch is mainly used in optical communication applications such as multi-channel optical monitoring, LAN multi-light source/detector automatic switching, and optical sensing multi-point dynamic monitoring system optical test systems.
What are the features of the XH-OSW-2X2F optical switch?
The XH-OSW-2X2F optical switch has features like low insertion loss, wide wavelength range, low channel crosstalk, high stability, high reliability, simple control, small size, and easy embedding in the circuit board. It also offers locking and non-locking control types.
What is the switching time of the XH-OSW-2X2F optical switch?
The switching time of the XH-OSW-2X2F optical switch is less than or equal to 8 milliseconds.
What is the operating temperature range of the XH-OSW-2X2F optical switch?
The XH-OSW-2X2F optical switch can operate within a temperature range of -20 to +70 degrees Celsius.
How can I control the XH-OSW-2X2F optical switch?
The XH-OSW-2X2F optical switch can be controlled through the control circuit design reference provided. The control model can be selected based on your requirements.
