Description
The 1x2 optical switch is one of the most basic types of optical switches in the fields of optical communications and photonics. Its core function is to switch one input optical signal between two output ports. It is widely used in scenarios such as optical network routing, optical path switching, and equipment testing.

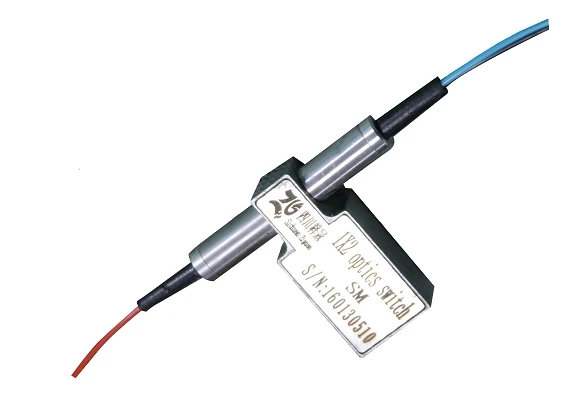

Mechanical fiber optical switch 1x2
Specifications
| Number Of Ports: | 1 – 2 |
|---|---|
| Wavelength Range: | 850 – 1550 nm |
| Insertion Loss (typical): | 0.8 dB |
| Return Loss: | 55 dB |
| Switch Type: | Non-Latching or Latching |
| Operation Wavelength: | 1260-1650nm,850nm/980nm/1064nm |
| Durability (times): | 10Million |
Download Data Sheet
Features
- Low insertion loss
- Low channel crosstalk
- High Reliability and Stability
- High dynamic range
Applications
- Optical fiber sensor
- Optical fiber communications
- Optical fiber device testing
- Optical Network Monitoring
Frequently Asked Questions
What's the function of Ziguan's 1x2 fiber optical switch?
Ziguan's fiber optical switch is an optical path control device that controls and converts the optical path. It allows for 2 optical signal inputs and selects the signal output of one of them.
What's the switching time of Ziguan's 1x2 fiber optical switch?
The switching time of Zigaun's 1x2 Fiber Optical Switch is less than 10 ms.
What are the features of Ziguan's 1x2 fiber optical switch?
Ziguan's 1x2 fiber optical switch has low insertion loss, low channel crosstalk, high Reliability and Stability, high dynamic range
What are the applications of Ziguan's 1x2 fiber optical switch?
Ziguan's 1x2 fiber optical switch is used for protection, restoration, optical fiber sensor, optical fiber communications, optical fiber device testing, optical Network Monitoring
What's the operation temperature of Ziguan's 1x2 fiber optical switch?
Ziguan's 1x2 fiber optical switch has an operating temperature range of -20°C to +70°C.
