What are the main components inside a ROSA and what roles do they play in signal reception?

A typical ROSA contains an optical interface (ferrule, receptacle, or molded lens), a photodiode (PIN or APD), a TIA, and often a limiting amplifier or equalizer in higher-speed designs. The optical interface couples light from the fiber into the photodiode, which converts photons to current; the TIA converts this low-level current into a voltage and sets the overall sensitivity, bandwidth, and noise performance of the receiver path.

What are the typical types of ROSA (e.g., PIN vs APD, single- vs multi-rate) and how do they differ in performance and use cases?

PIN ROSAs use a PIN photodiode and are common for short- to medium-reach links (e.g., 10GBASE-SR, LR) where moderate sensitivity is sufficient and cost and simplicity are priorities. APD ROSAs use an avalanche photodiode and provide higher sensitivity and longer reach (e.g., 10GBASE-ER/ZR, 25G/100G long-reach), but they require bias control, have higher noise and complexity, and are more sensitive to temperature and supply variations. Multi-rate ROSAs are designed with bandwidth, linearity, and CDR compatibility to support multiple data rates (e.g., 1–11.3 Gbps), whereas single-rate ROSAs are optimized for a specific line rate with tighter performance at that target speed.

Which key electrical and optical parameters should I evaluate when selecting a ROSA for my design?

Critical parameters include wavelength range (e.g., 850 nm, 1310 nm, 1550 nm), sensitivity (minimum optical power at a given BER), overload (maximum input power without degradation), and bandwidth or supported data rate. You should also review input optical return loss, photodiode responsivity, TIA gain and input-referred noise, output signal format (differential, AC/DC coupling), and power supply requirements to ensure compatibility with your host SERDES and link budget.

How do package form factor and interface standards (e.g., SFP, QSFP, CFP) influence ROSA choice and integration?

ROSA devices are often designed to meet mechanical and interface requirements for specific module standards such as SFP/SFP+, QSFP/QSFP28, CFP, or custom TOSA/ROSA cans. The chosen form factor dictates the optical receptacle style (LC, MPO), footprint, pin-out, thermal path, and EMI shielding, so the ROSA must match both your mechanical constraints and the electrical interface expectations of the target transceiver platform.

What are typical lead times, customization possibilities, and main cost drivers for ROSA products?

Standard catalog ROSAs for common data rates and wavelengths often have lead times in the range of 4–8 weeks, while custom designs with specific wavelength, package, or TIA characteristics can extend to 10–16 weeks depending on complexity and volume. Cost is mainly driven by photodiode type (PIN vs APD), supported data rate and bandwidth, integration level (bare ROSA vs ROSA with limiting amp/equalizer), packaging complexity, and required compliance testing (e.g., Telcordia, extended temperature).

How can I efficiently find, compare, and request quotes for ROSA products on FindLight without creating an account?

On FindLight, you can navigate to Fiber Optics → Optical Networking → ROSA and then filter listings by wavelength, data rate, package type, and photodiode technology to narrow down suitable options. Each product page provides detailed datasheets and specifications; you can compare multiple items by opening them in separate tabs and then use the built-in “Request Quote” or contact form on each listing to send technical and commercial inquiries directly to suppliers without registration.

Filter Products

ROSA Optical Receiver Modules for Networking

100Gbps 1310nm PIN-TIA LC ROSA Optical Receiver

Request Quote

Sold by: Friend Laser Photonics Co.,Ltd. Ships from: China

Specifications
Responsivity:	0.6 A/W
Sensitivity:	-6.1 dBm
Peak Sensitivity Wavelength:	1310 nm
Input Optical Wavelength:	1260 - 1360 nm
Supply Voltage:	2.9 - 3.5 V

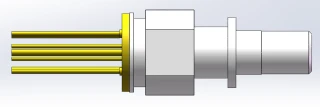

50Gbps PAM4 LC ROSA APD-TIA Receiver Module

Request Quote

Sold by: Friend Laser Photonics Co.,Ltd. Ships from: China

Specifications
Responsivity:	4 A/W
Sensitivity:	-15.5 dBm
Peak Sensitivity Wavelength:	1310 nm
Storage Temperature:	-40 to 85 ℃
Operating Temperature:	-40 to 85 ℃

Did You Know?

Did you know that in a high‑speed ROSA (Receiver Optical Sub-Assembly), the limiting factor is often the photodiode capacitance—typically on the order of 0.1–0.3 pF—combined with the transimpedance amplifier input, which directly caps the achievable bandwidth and thus the line rate? To reliably detect signals at 25–50 Gbaud, ROSAs rely on carefully engineered impedance matching and minimized bond-wire inductance so that the overall electro-optic response approximates a flat, low‑jitter transfer function. A common misconception is that ROSA sensitivity is dominated only by photodiode responsivity; in practice, input-referred noise of the TIA and layout-driven parasitics can shift receiver sensitivity by several dB, often more than changing the detector material itself.

Related Resources

Frequently Asked Questions

A ROSA (Receiver Optical Sub-Assembly) is the front-end photonic module that converts an incoming optical data signal on fiber into an electrical signal for further processing in an optical transceiver. It typically integrates an optical receptacle or lens, a photodiode, and a transimpedance amplifier (TIA), providing a conditioned differential electrical output to the host IC while maintaining defined optical and electrical interfaces.

What is a ROSA in Optical Networking?

A Receiver Optical Sub-Assembly (ROSA) is the optoelectronic front end of an optical receiver, converting modulated optical signals in fiber into electrical signals. A typical ROSA integrates a photodiode, transimpedance amplifier (TIA), optical coupling optics, and package with fiber or receptacle interface. In high-speed links, the ROSA defines sensitivity, bandwidth, and overall link margin.

On FindLight, ROSA products address fiber-optic communication across metro, access, data center, and telecom systems. They are commonly used in SFP/SFP+, QSFP, and custom transceiver designs.

Typical ROSA Specifications

When evaluating a ROSA, engineers focus on parameters that govern signal integrity and compatibility with the target link budget:

Data rate / bandwidth: Common ROSA designs support rates from 1 Gb/s up to 10 Gb/s, 25 Gb/s, or higher per lane.
Wavelength: Optimized for 850 nm (MM), 1310 nm, or 1550 nm windows, with variants for CWDM/DWDM grids.
Photodiode type: PIN or APD ROSA, with APD types offering higher sensitivity at the cost of bias control complexity.
Sensitivity and overload: Specified in dBm at a target BER, defining minimum and maximum input optical power.
Responsivity and NEP: Indicate optical-to-electrical conversion efficiency and noise performance.
TIA characteristics: Transimpedance gain, input noise current, bandwidth, and output swing.
Package and interface: CAN, TO, butterfly, or miniature ROSA packages with pigtail fiber, LC/SC receptacle, or board-mount interfaces.
Operating temperature: Commercial, industrial, or extended temperature ROSA options for field deployments.

Use Cases for ROSA Modules

ROSA modules on FindLight are used in optical transceivers, line cards, test instruments, and custom fiber links. Typical applications include Ethernet, Fibre Channel, PON, and proprietary backplane or fronthaul links where deterministic receiver performance is required.

Buyer Guidance on FindLight

When comparing ROSA options, match data rate, wavelength, and photodiode type to your link design, then examine sensitivity, overload, and TIA specs against your power budget and jitter tolerance. Review package style and connectorization for mechanical and PCB integration.

On FindLight, you can browse ROSA products, compare specifications side by side, and request detailed quotations or technical confirmations directly from suppliers. No registration is required to send an inquiry, enabling rapid evaluation and sourcing for your optical networking projects.
