Description
The 1x2 Nanosecond optical switch is connected to the optical path by connecting or blocking the optical signal. the switch has non-mechanical configurations and activated via an electrical control signal. Products are widely used in aerospace and military equipment.

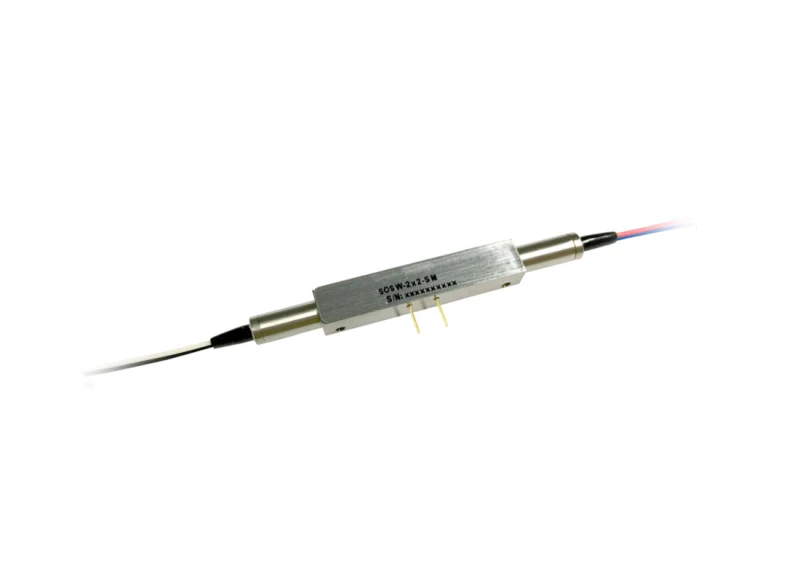

1×2 Nanosecond Fiber Optic Switch
Specifications
| Number Of Ports: | 1 – 2 |
|---|---|
| Wavelength Range: | 1525 – 1565 nm |
| Insertion Loss (typical): | 0.6 dB |
| Return Loss: | 50 dB |
| Wavelength: | 1525~1565 nm |
| Insertion Loss: | 0.60 dB (Typ.); 1.20 dB (Max) |
| PDL: | 0.10 dB (Typ.), 0.20 dB (Max) |
| Return Loss: | ≥50 dB |
| Crosstalk: | ≥20 dB |
| Repeatability: | +/-0.01 dB |
| Durability: | >10^12 Cycles |
| Switching Speed: | <300 ns |
| Switching Type: | Non-Latching |
| Driving Voltage: | 300-400 V |
| Drive Current: | <0.5 mA |
| Operating Temperature: | -5~70 °C |
| Storage Temperature: | -40~85 °C |
| Maximum Optical Power: | 300 mW |
| Dimension: | (L)37×(W)8.5×(H)9.7±0.2 mm |
| Fiber Type: | SMF-28 |
Download Data Sheet
Features
- Solid-State
- High speed
- Ultra-high reliability
- Low insertion loss
- Compact
Applications
- Optical blocking
- Configurable operation
- Instrumentation
Frequently Asked Questions
What is the Optical Switches Electro 1x2 Nanosecond optical switch used for?
The 1x2 Nanosecond optical switch is used to connect or block optical signals in the optical path. It is widely used in aerospace and military equipment.
What are the key features of the 1x2 Nanosecond optical switch?
The key features include solid-state design, high speed, ultra-high reliability, low insertion loss, and compact size.
What applications can the 1x2 Nanosecond optical switch be used in?
It can be used in Metropolitan Area Networks, R&D in laboratories, system monitoring, and configurable Optical Add-Drop Multiplexers (OADM).
What is the typical insertion loss of the 1x2 Nanosecond optical switch?
The typical insertion loss is 0.60 dB, with a maximum of 1.20 dB.
What is the operating temperature range for the 1x2 Nanosecond optical switch?
The operating temperature range is from -5°C to 70°C.
What is the switching speed of the 1x2 Nanosecond optical switch?
The switching speed is less than 300 nanoseconds.
What is the maximum optical power the 1x2 Nanosecond optical switch can handle?
The maximum optical power it can handle is 300 mW.
