Description
The Industrial Fiber Media Converter provides cost-effective, entry-level media conversion between 1×10/100/1000Base-TX ports and 1000Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and with it is small size, it is ideal for locations where space is limited. It is able to operate under temperatures ranging from -40°C to 75 °C and is with IP40 rugged case to make sure continuous operation in harsh environments such as transportation, factories, outdoors, and places where extremely low or high temperatures can be experienced.

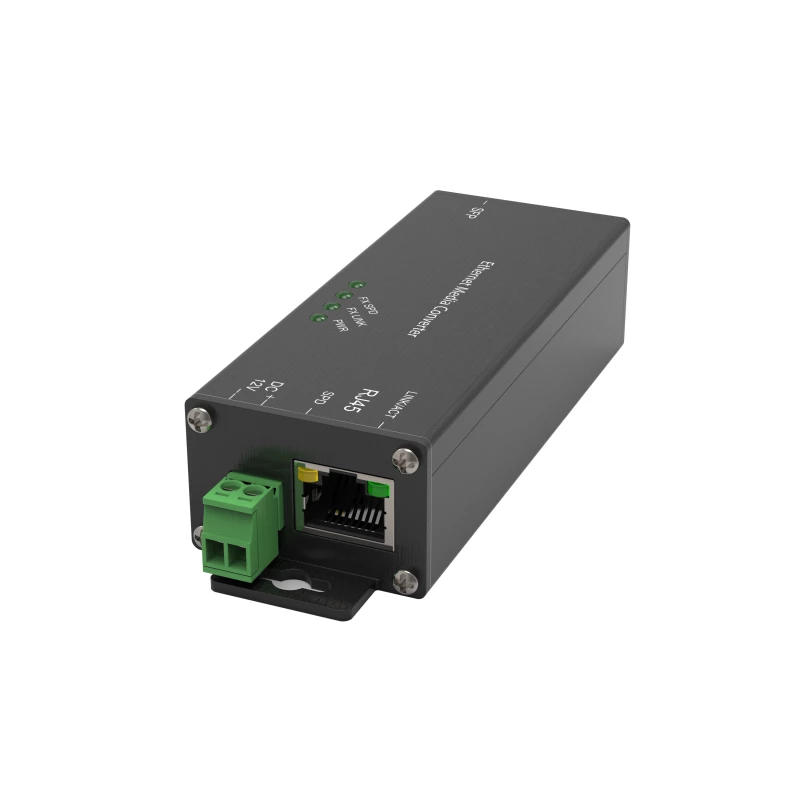

Mini Industrial Fiber Media Converter
Specifications
| Number Of Ports: | 1 – 2 |
|---|---|
| Wavelength Range: | 850 – 1550 nm |
| Insertion Loss (typical): | 1.1 dB |
| Return Loss: | -50 dB |
Download Data Sheet
Features
- 10/100/1000Mbps Full/Half Duplex, AutoNegotiation and Auto-MDI/MDIX
- Choice of LC SFP Connectors for MM & SM
- Robust IP40 Aluminum Metal Enclosure for Harsh Environments
- Operate stably under the Temperature Range of -40 – 75℃
- LED Indicates Diagnostic & DIP-switch Ethernet OAM
- Support IEEE 802.3x Flow Control
- Both Desktop and Wall Mounting installation
