Description
Gigabit PoE PSE Media Converter is a 10/100/1000Base-TX to 1000Base-X (also can be forced to 100Base-FX) media converter complied with IEEE802.3at or IEEE802.3af standard, the internal AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfer over optical fibre, providing 15.4W or 30W to powered device (PD) over CAT5e/CAT6 copper cable (cable length up to 100meters / 330feets).

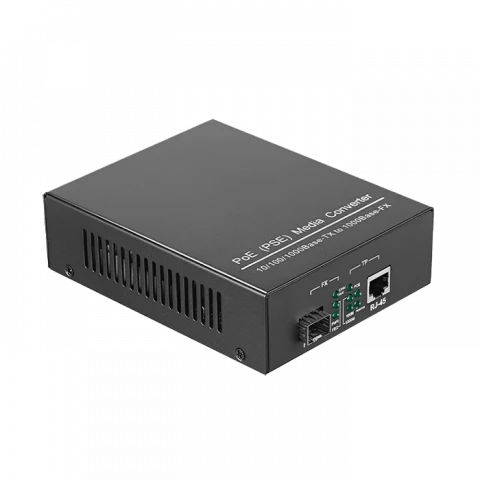

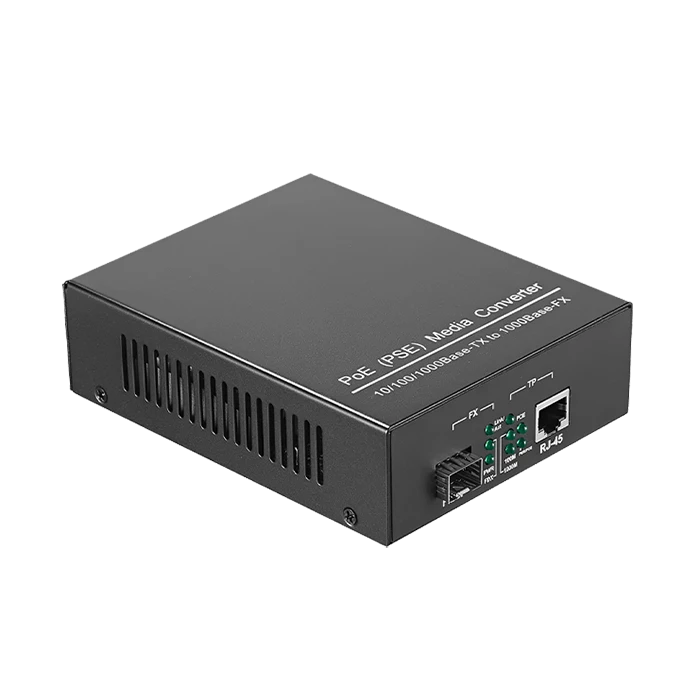

Gigabit PoE Media Converter
Specifications
Number Of Ports: | 1 – 2 |
---|---|
Wavelength Range: | 850 – 1550 nm |
Insertion Loss (typical): | 1.1 dB |
Return Loss: | -50 dB |
Features
- Ideal for confined spaces, and provides highly cost-effective solutions
- Auto-Negotiation – automatically determines the best connection speed
- Wall mountable using the integrated mounting holes
- Single or Dual IEEE 802.3at 30W PoE+ port
- Fast or Gigabit ethernet, SFP or 1X9 transceiver supports single-mode and multimode, single or dual fiber options up to 120km
- Supports Jumbo Frames up to 9.6K bytes
- Intelligent features(DIP Switch/Media Converter) supported including link fault pass-through, automatic laser shutdown, SFP reset and SFP speed selection
