Description
OE photonics’s Polarization Maintaining Mechanical Switch is an industry proven fiber optic switch with excellent durability and reliability. It allows channel selection between input fibers and output fibers. It is widely used in optical network fields such as OLP and switch module.

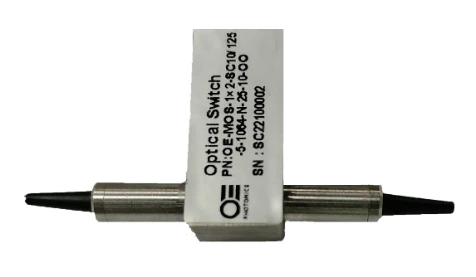

PM Mechanical Optical Switch (1x2)
SHENZHEN OE Photonics Co.,Ltd
Specifications
| Number Of Ports: | 1 – 256 |
|---|---|
| Wavelength Range: | 1260 – 1625 nm |
| Insertion Loss (typical): | 0.5 dB |
| Return Loss: | 50 dB |
| Speed: | ≤ 8 ms |
| PER: | ≥ 18 dB |
| Crosstalk: | ≥ 55 dB |
| Wavelength: | 1310/1550 dB |
Download Data Sheet
Features
- Low Insert Loss
- High Repeatability and Stability
- Latching and Non-latching
- Meets GR-1073, GR-1209 and GR-1221 standards
Applications
- OADM Fiber Monitoring
- Optical Network Protection
- Measurement Equipment
Frequently Asked Questions
Wavelength selection
Customized
Channel selection
1-256 channel
MOQ
1pcs
Price range
20-100 USD
