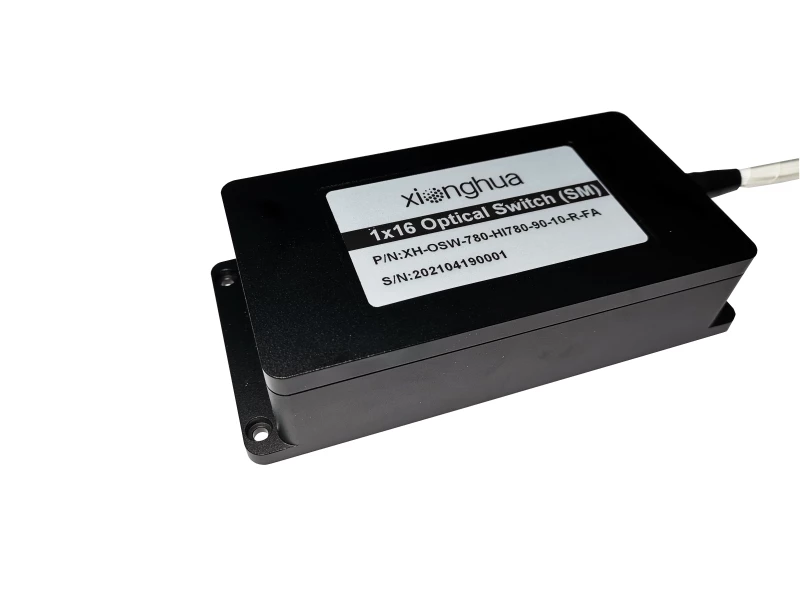

Thumbnail of Xionghua Photonics Fiber Optic Switches 1X16 photo 1

Description

XH-OSW-1X16 optical switch is an optical path control device, which has the role of controlling the optical path and converting the optical path. It has an important role in optical communication applications.


The optical switch is mainly used in optical transmission system for multiple optical monitoring, LAN multi-source/detector automatic switching and optical sensing multi-point dynamic monitoring system optical test system for optical fiber, optical devices, network and field engineering optical cable testing; optical device installation and adjustment.

Xionghua Photonics Fiber Optic Switches 1X16

Visit the Xionghua photoelectric Store

Specifications

Number Of Ports: 1 – 16
Wavelength Range: 1260 – 1650 nm
Insertion Loss (typical): 1 dB
Return Loss: 50 dB
Connector: FC, LC, SC, ST
Control: TTL, RS232
Transmission Power: 500 mW
Working Current: 500 mA
Operating Voltage: 5 V

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low insertion loss, wide wavelength range
  • Low channel crosstalk, high stability, high reliability
  • Proprietary technology, no glue in the optical path
  • Locking and non-locking control types are available

Applications

  • Ring Network
  • Remote Monitoring in Optical Network
  • Testing of Fiber Optical Component

Frequently Asked Questions

What is the XH-OSW-1X16 optical switch used for?
The XH-OSW-1X16 optical switch is mainly used in optical transmission systems for multiple optical monitoring, LAN multi-source/detector automatic switching, and optical sensing multi-point dynamic monitoring systems.
What are the features of the XH-OSW-1X16 optical switch?
The XH-OSW-1X16 optical switch has low insertion loss, a wide wavelength range, low channel crosstalk, high stability, high reliability, and proprietary technology with no glue in the optical path. It also offers locking and non-locking control types.
What is the wavelength range of the XH-OSW-1X16 optical switch?
The XH-OSW-1X16 optical switch has a wavelength range of 532~1064nm and 1260~1650nm.
What is the switching time of the XH-OSW-1X16 optical switch?
The switching time of the XH-OSW-1X16 optical switch is ≤8ms.
What connectors are available for the XH-OSW-1X16 optical switch?
The XH-OSW-1X16 optical switch is available with FC, LC, SC, and ST connectors.

Got more questions? Use the inquiry form to ask the supplier directly.
