Description
The XH-OSW-6X36 matrix optical switch module is a kind of optical path control device, which can be arbitrarily interconnected among multiple groups of input ports and multiple groups of output ports. Due to its advantages such as good environmental performance, it is mainly used in optical communication for cross-connection of backbone optical nodes, multi-dimensional online monitoring, etc.

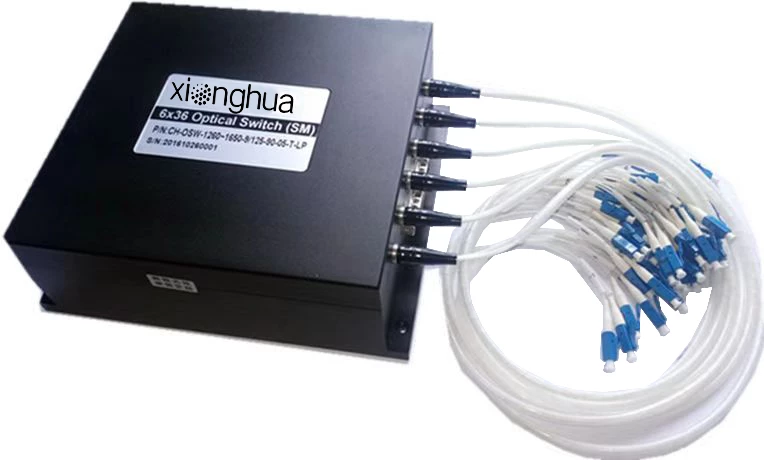

MXN Matrix Optical Switch
Specifications
| Number Of Ports: | 6 – 36 |
|---|---|
| Wavelength Range: | 1260 – 1650 nm |
| Insertion Loss (typical): | 1 dB |
| Return Loss: | 50 dB |
| Transmission Power: | ≤500 mW |
| Connector: | FC, LC, SC, ST |
| Control: | TTL, RS232 |
| Operating Voltage: | 5V |
Download Data Sheet
Features
- Low insertion loss, wide wavelength range
- Low channel crosstalk, high stability, high reliability
- Proprietary technology, no glue in the optical path
- Locking and non-locking control types are available
Applications
- Ring Network
- Remote Monitoring in Optical Network
- Testing of Fiber Optical Component
Frequently Asked Questions
What is the XH-OSW-6X36 matrix optical switch module used for?
The XH-OSW-6X36 matrix optical switch module is mainly used in optical communication for cross-connection of backbone optical nodes, multi-dimensional online monitoring, etc.
What are the advantages of the XH-OSW-6X36 matrix optical switch module?
The XH-OSW-6X36 matrix optical switch module has low insertion loss, wide wavelength range, low channel crosstalk, high stability, high reliability, and proprietary technology with no glue in the optical path.
What are the applications of the XH-OSW-6X36 matrix optical switch module?
The applications of the XH-OSW-6X36 matrix optical switch module include ring network, remote monitoring in optical network, and testing of fiber optical components.
What is the maximum number of channels that can be customized for the XH-OSW-6X36 matrix optical switch module?
The maximum number of channels that can be customized for the XH-OSW-6X36 matrix optical switch module is M≤64, N≤64.
What is the operating temperature range for the XH-OSW-6X36 matrix optical switch module?
The operating temperature range for the XH-OSW-6X36 matrix optical switch module is -5°C to 55°C.
