Description
XH-OSW-MXN MEMS Matrix optical switch module is a kind of optical control equipment, which can be interlinked between multi-group input port and multi-group output port, it has the advantages of small size, high switching speed, high reliability and good environmental performance. It is mainly used in optical communication for cross-connection of backbone optical nodes and multi-dimensional on-line monitoring.

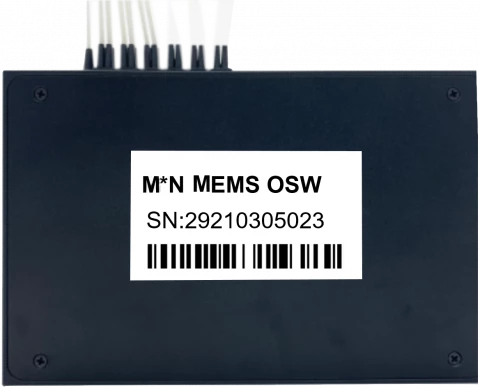

MXN MEMS Matrix Optical Switch
Specifications
| Number Of Ports: | 1 – 256 |
|---|---|
| Wavelength Range: | 1260 – 1650 nm |
| Insertion Loss (typical): | 2.1 dB |
| Return Loss: | 50 dB |
| Luminous Power: | ≤500 mW |
| Power Supply: | 5 V |
Download Data Sheet
Features
- Small insertion loss
- Fast switching
- Support for semi-crossover/full-crossover customization
- Support Input/output port power monitoring customization
- High stability and high reliability
Applications
- FITL
- Automatic Measurement
- Optical Network Remote Monitoring
- Cable Monitoring and Maintaining system
Frequently Asked Questions
What is the MXN MEMS Matrix Optical Switch used for?
The MXN MEMS Matrix Optical Switch is mainly used in optical communication for cross-connection of backbone optical nodes and multi-dimensional on-line monitoring.
What are the advantages of the MXN MEMS Matrix Optical Switch?
The MXN MEMS Matrix Optical Switch has the advantages of small size, high switching speed, high reliability, and good environmental performance.
Can the MXN MEMS Matrix Optical Switch support customization?
Yes, the MXN MEMS Matrix Optical Switch supports semi-crossover/full-crossover customization and input/output port power monitoring customization.
What is the maximum channel capacity of the MXN MEMS Matrix Optical Switch?
The MXN MEMS Matrix Optical Switch can support a maximum of 64 channels.
What is the operating temperature range for the MXN MEMS Matrix Optical Switch?
The MXN MEMS Matrix Optical Switch can operate within a temperature range of -5 to 55 degrees Celsius.
