Description
XH-FSW-1X8-U rackmount optical switch is a kind of optical path control equipment, which can control optical path manually, proximity and remote via keypad, serial communication and Ethernet communication. The FSW-1XN-U rackmount optical switch is a kind of optical path control equipment, which can control optical path switching manually, near-range and remotely through keypad, serial communication and Ethernet communication. It plays an important role in optical communication applications. Optical switches are mainly Optical switch is mainly used in optical transmission system for multiple optical monitoring, LAN multiple light sources / detectors automatic switching and optical sensing multi-point dynamic monitoring The optical switch is used in optical fiber, optical device, network and field engineering optical cable testing; optical device installation and adjustment.

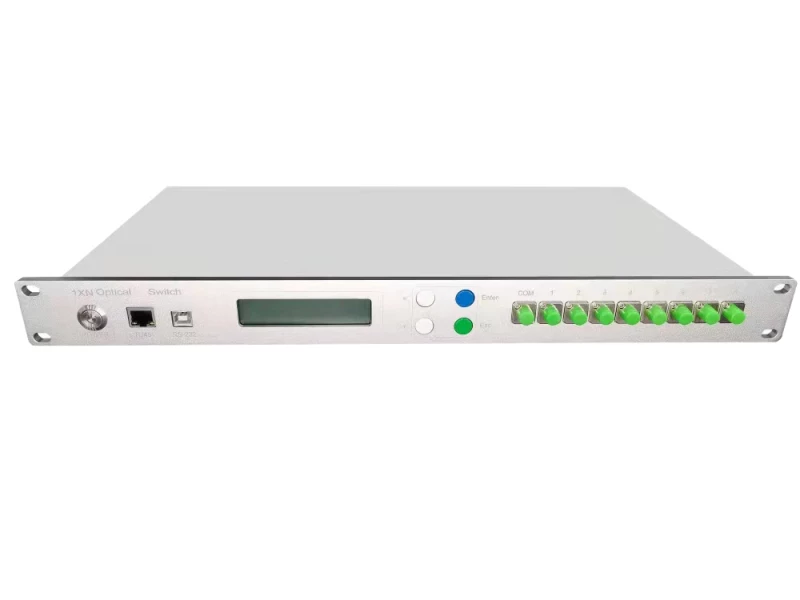

xionghua photonics 1X8 Rack Mount Optical Switch
Specifications
Number Of Ports: | 1 – 8 |
---|---|
Wavelength Range: | 1260 – 1650 nm |
Insertion Loss (typical): | 1.2 dB |
Return Loss: | 50 dB |
Fiber Type: | 9/125 um |
Monitoring Port: | RJ45,RS232 |
Operating Power: | AC:100~240 V |
Features
- With small insertion loss and fast switching speed, etc.
- The internal circuit of the optical switch is self-detecting, and the fault alarm informs.
- The serial port adopts FT-232 industrial-grade USB to RS-232 chip.
- LCD display is adopted to display the status of the optical circuit very intuitively, which is convenient for the user's operation.
- Can send commands through the key and serial port, network port to control the light path switching settings. And the key operation can be locked through the serial command.
Applications
- Optical Signal Switching and Routing
- Optical Network Monitoring
- Testing of Fiber Optic Component
- Military Communications
Frequently Asked Questions
What is the XH-FSW-1X8-U rackmount optical switch used for?
The XH-FSW-1X8-U rackmount optical switch is used for optical path control in optical communication applications.
What are the control options for the optical switch?
The optical switch can be controlled manually, through proximity, and remotely via keypad, serial communication, and Ethernet communication.
What are the main applications of the optical switch?
The main applications of the optical switch include optical signal switching and routing, optical network monitoring, testing of fiber optic components, and military communications.
What are the features of the optical switch?
The optical switch has small insertion loss, fast switching speed, self-detecting internal circuit with fault alarm, FT-232 industrial-grade USB to RS-232 chip for serial communication, LCD display for intuitive status display, and the ability to control light path switching settings through key, serial port, and network port.
What are the performance parameters of the optical switch?
The performance parameters of the optical switch include wavelength range of 1260~1650nm, insertion loss of ≤1.2dB, repeatability of ≤0.02dB, return loss of ≥50dB, crosstalk of ≥70dB, WDL of ≤0.25dB, PDL of ≤0.05dB, fiber type of SM (9/125um), and operating temperature range of -10~+60 degrees Celsius.
