32X32 Matrix Optical Switch | Xionghua Photonics - Get a price quote from Xionghua photoelectric

Name: 32X32 Matrix Optical Switch | Xionghua Photonics
Brand: Xionghua photoelectric
Availability: InStock

Description

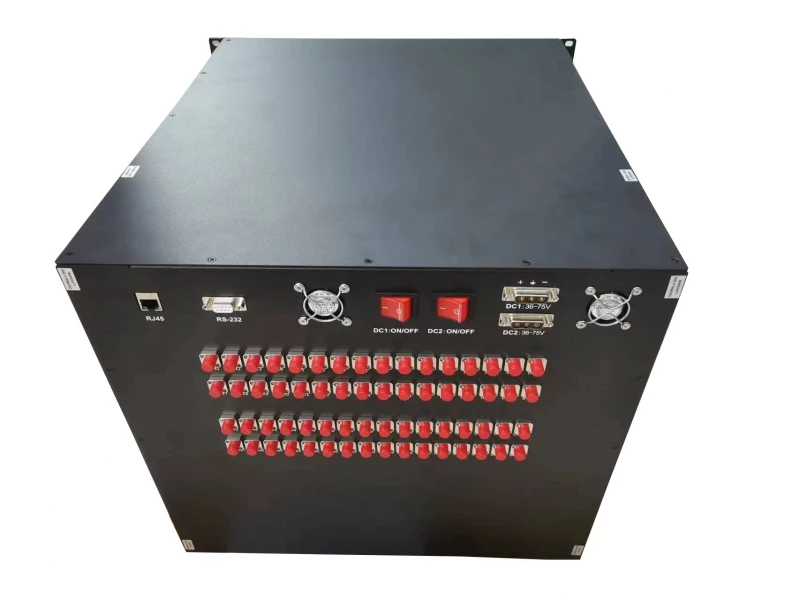

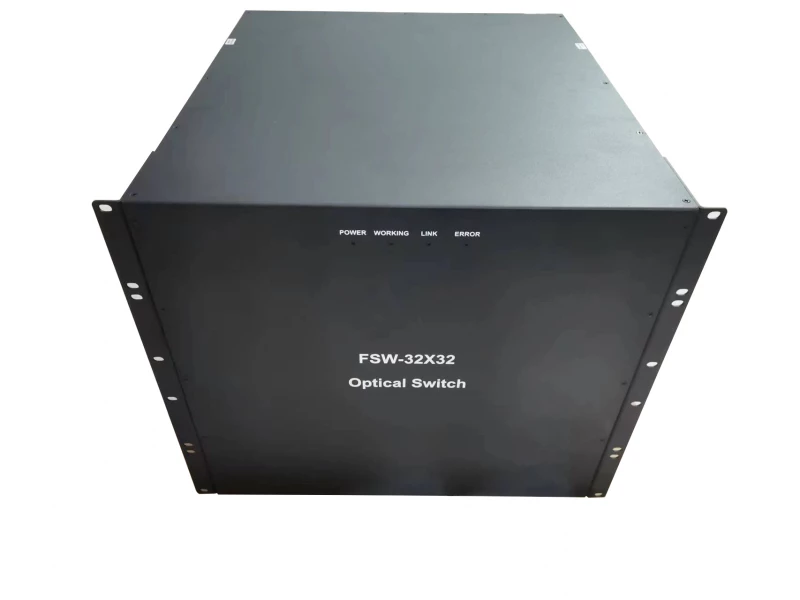

XH-FSW-32X32 Matrix optical switch is a product that uses optical switches to realize optical path conversion. The device provides serial port RS-232 , Ethernet RJ45 interface, through the TCP / IP protocol connection to send commands to control optical path switching, and finally realize 32 (input) X 32 (output) full-switching non-blocking bidirectional fiber routing Cross-connect plays an important role in optical communication applications.

Optical switches are mainly used in multi-channel optical monitoring in optical transmission systems, automatic switching of LAN multi-light sources/detectors, and optical sensing multi-point dynamic monitoring systems; optical testing systems are used for optical fibers, optical devices, networks and field engineering optical cables Testing; Optical device adjustment.

Specifications

Number Of Ports:	1 – 256
Wavelength Range:	1260 – 1650 nm
Insertion Loss (typical):	1.2 dB
Return Loss:	50 dB
Fiber Type:	9/125 um
Switching Time:	≤15 ms (Adjacent channel)
Control Interface:	RJ45; RS-232
Connector Type:	FC/PC
Operating Power:	100~240 VAC

Download Data Sheet

Features

Network port serial port communication interface command control

Fully switched non-blocking two-way cross-connect

Equipped with LC precision flange, the insertion loss is small

The insertion loss is small, the switching speed is fast, the signal stability is high, and there is no crosstalk between adjacent channels

Applications

FITL

Automatic Measurement

Optical Network Remote Monitoring

Cable Monitoring and Maintaining system

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

Xionghua photoelectric

On FindLight:

since 2023

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the XH-FSW-32X32 Matrix optical switch used for?

The XH-FSW-32X32 Matrix optical switch is used for optical path conversion in optical communication applications.

What communication interfaces does the device have?

The device has a serial port RS-232 and an Ethernet RJ45 interface.

How is the optical path switching controlled?

The optical path switching is controlled through the TCP/IP protocol connection by sending commands via the serial port or Ethernet interface.

What are the main applications of optical switches?

Optical switches are mainly used in multi-channel optical monitoring, automatic switching of LAN multi-light sources/detectors, and optical sensing multi-point dynamic monitoring systems.

What are the key features of the XH-FSW-32X32 Matrix optical switch?

The key features of the XH-FSW-32X32 Matrix optical switch include fully switched non-blocking two-way cross-connect, small insertion loss, fast switching speed, high signal stability, and no crosstalk between adjacent channels.
