Description

XH-OSW-1X32 optical switch is an optical path control device, which has the role of controlling the optical path and converting the optical path. It has an important role in optical communication applications. The optical switch is mainly used in optical transmission system for multiple optical monitoring, LAN multi-source/detector automatic switching and optical sensing multi-point dynamic monitoring system optical test system for optical fiber, optical devices, network and field engineering optical cable testing; optical device installation and adjustment.

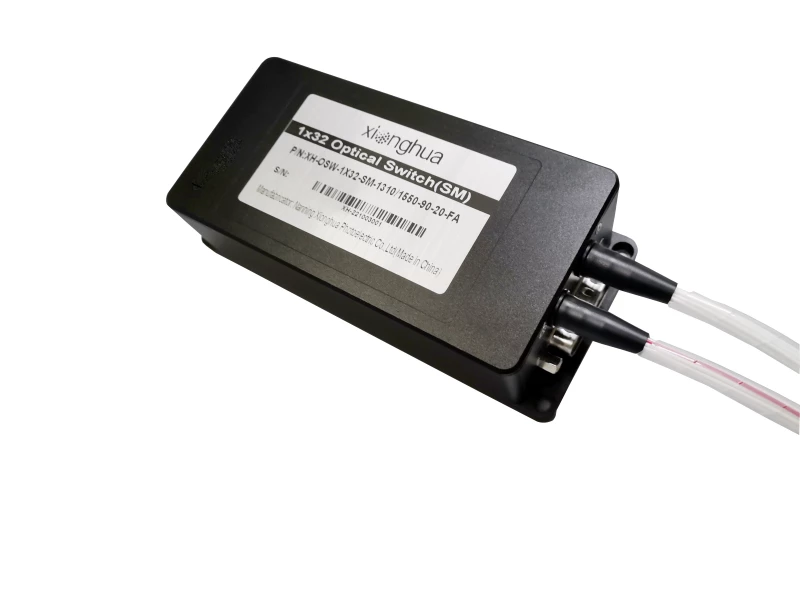

1X32 Fiber Optical Switch

Specifications

Number Of Ports: 1 – 32
Wavelength Range: 1260 – 1650 nm
Insertion Loss (typical): 1 dB
Return Loss: 50 dB
Switching Time: ≤8 ms
Transmission Power: ≤500 mW
Connector: FC, LC, SC, ST
Control: TTL, RS232

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low insertion loss, wide wavelength range
  • Low channel crosstalk, high stability, high reliability
  • Proprietary technology, no glue in the optical path
  • Locking and non-locking control types are availablea

Applications

  • Ring Network
  • Remote Monitoring in Optical Network
  • Testing of Fiber Optical Component

Frequently Asked Questions

What is the function of the XH-OSW-1X32 optical switch?
The XH-OSW-1X32 optical switch controls the optical path and converts the optical path in optical communication applications.
What are the main applications of the XH-OSW-1X32 optical switch?
The main applications of the XH-OSW-1X32 optical switch include multiple optical monitoring in optical transmission systems, LAN multi-source/detector automatic switching, and optical sensing multi-point dynamic monitoring system in optical testing systems.
What are the features of the XH-OSW-1X32 optical switch?
The XH-OSW-1X32 optical switch features low insertion loss, wide wavelength range, low channel crosstalk, high stability, high reliability, and proprietary technology with no glue in the optical path.
What is the switching time of the XH-OSW-1X32 optical switch?
The switching time of the XH-OSW-1X32 optical switch is ≤8ms for adjacent channels.
What are the available control types for the XH-OSW-1X32 optical switch?
The XH-OSW-1X32 optical switch is available in both locking and non-locking control types.

Got more questions? Use the inquiry form to ask the supplier directly.
