Description

XH-OSW-1x128 mechanical optical switch is an optical path control device, which has the role of controlling the optical path and converting the optical path. It has an important role in optical communication applications.

The optical switch is mainly used in optical transmission system for multiple optical monitoring, LAN multi-source/detector automatic switching and optical sensing multi-point dynamic monitoring system optical test system for optical fiber, optical devices, network and field engineering optical cable testing; optical device installation and adjustment.

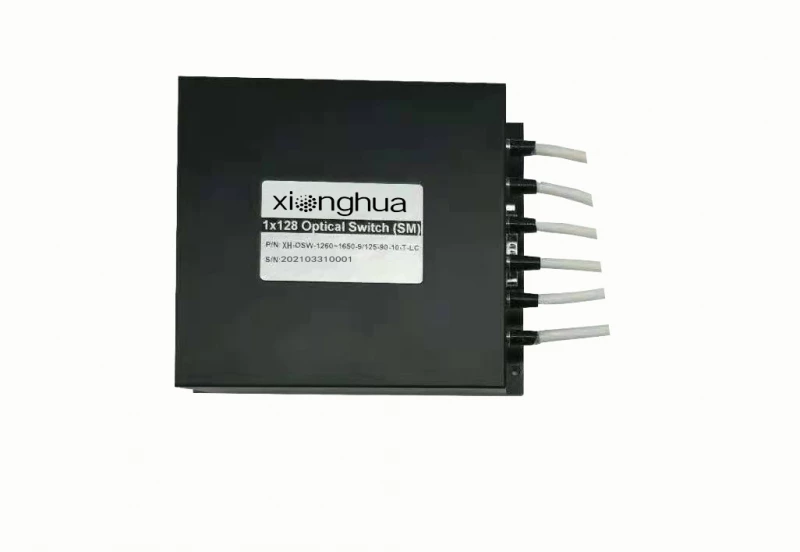

1X128 Mechanical Optical Switch

Specifications

Number Of Ports: 1 – 128
Wavelength Range: 1260 – 1650 nm
Insertion Loss (typical): 1 dB
Return Loss: 50 dB
Connector: FC、 LC、 SC、 ST
Control Mode: TTL/RS232

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low insertion loss, wide wavelength range
  • Low channel crosstalk, high stability, high reliability
  • Proprietary technology, no glue in the optical path
  • Locking and non-locking control types are available

Applications

  • Ring Network
  • Remote Monitoring in Optical Network
  • Testing of Fiber Optical Component

Frequently Asked Questions

What is the XH-OSW-1x128 mechanical optical switch used for?
The XH-OSW-1x128 mechanical optical switch is used for optical path control and conversion in optical communication applications.
What are the features of the XH-OSW-1x128 mechanical optical switch?
The XH-OSW-1x128 mechanical optical switch has low insertion loss, wide wavelength range, low channel crosstalk, high stability, high reliability, and proprietary technology with no glue in the optical path.
What are the applications of the XH-OSW-1x128 mechanical optical switch?
The XH-OSW-1x128 mechanical optical switch is used in ring networks, remote monitoring in optical networks, and testing of fiber optical components.
What is the insertion loss of the XH-OSW-1x128 mechanical optical switch?
The insertion loss of the XH-OSW-1x128 mechanical optical switch is typically 0.8dB and maximum 1.5dB.
What is the operating temperature range of the XH-OSW-1x128 mechanical optical switch?
The XH-OSW-1x128 mechanical optical switch has an operating temperature range of -20℃ to +70℃.

Got more questions? Use the inquiry form to ask the supplier directly.
