Description
XH-OSW-1X64 optical switch is an optical path control device, which has the role of controlling the optical path and converting the optical path. It has an important role in optical communication applications. The optical switch is mainly used in optical transmission system for multiple optical monitoring, LAN multi-source/detector automatic switching and optical sensing multi-point dynamic monitoring system optical test system for optical fiber, optical devices, network and field engineering optical cable testing; optical device installation and adjustment.

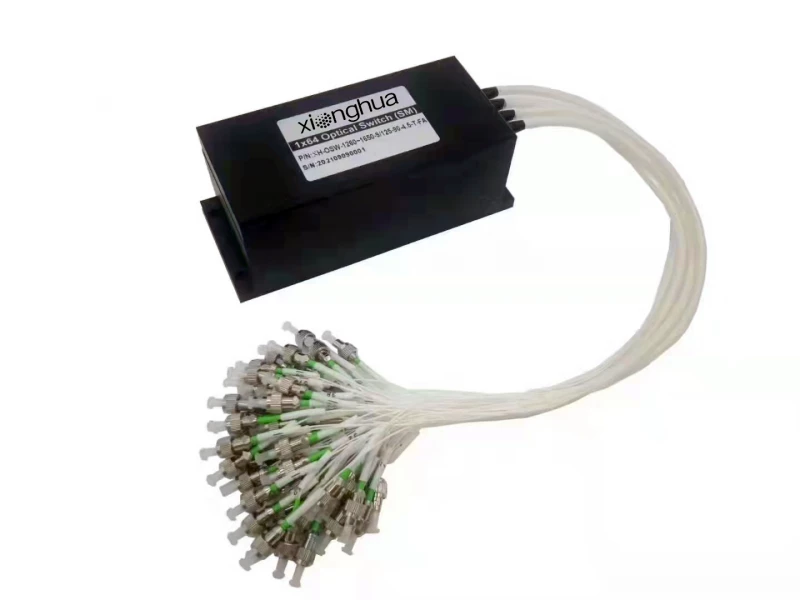

1X64 Mechanical Optical Switch Module
Specifications
Number Of Ports: | 1 – 64 |
---|---|
Wavelength Range: | 1260 – 1650 nm |
Insertion Loss (typical): | 1 dB |
Return Loss: | 50 dB |
Switching Time: | ≤8 ms |
Transmission Power: | ≤500 mW |
Connector: | FC, LC, SC, ST |
Control: | TTL, RS232 |
Operating Voltage: | 5V |
Features
- Low insertion loss, wide wavelength range
- Low channel crosstalk, high stability, high reliability
- Proprietary technology, no glue in the optical path
- Locking and non-locking control types are available
Applications
- Ring Network
- Remote Monitoring in Optical Network
- Testing of Fiber Optical Component
Frequently Asked Questions
What is the XH-OSW-1X64 optical switch used for?
The XH-OSW-1X64 optical switch is mainly used in optical transmission systems for multiple optical monitoring, LAN multi-source/detector automatic switching, and optical sensing multi-point dynamic monitoring systems.
What are the features of the XH-OSW-1X64 optical switch?
The XH-OSW-1X64 optical switch has low insertion loss, a wide wavelength range, low channel crosstalk, high stability, high reliability, and proprietary technology with no glue in the optical path. It also offers both locking and non-locking control types.
What are the applications of the XH-OSW-1X64 optical switch?
The XH-OSW-1X64 optical switch is used in ring networks, remote monitoring in optical networks, and testing of fiber optical components.
What is the insertion loss of the XH-OSW-1X64 optical switch?
The insertion loss of the XH-OSW-1X64 optical switch is typically 0.5dB, with a maximum of 1.0dB.
What is the operating temperature range of the XH-OSW-1X64 optical switch?
The XH-OSW-1X64 optical switch can operate within a temperature range of -20°C to +70°C.
