Description
GLSUN 1xN MEMS optical switch is based on low-loss MEMS chips with transparent wavelength and multi-channel collimators. The operating wavelength range is from 1260 to 1670nm. The intelligent management of the control of system realizes the optical switching from COM port to any channel, its flexible configuration can meet various applications. A single device (non-cascaded) can be up to 128 channels.
Product Model
Single-mode
1xN (N<64) : 1x2 / 1x8 / 1x16 / 1x32 / 1x48 / 1x64
1xN (N≤128) : 1x80 / 1x96 / 1x128
Multimode
1xN (N≤12): 1x4 / 1x8 / 1x12

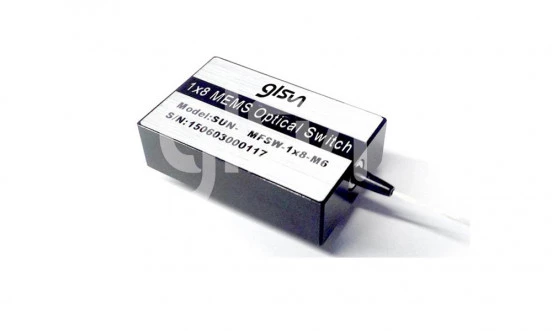

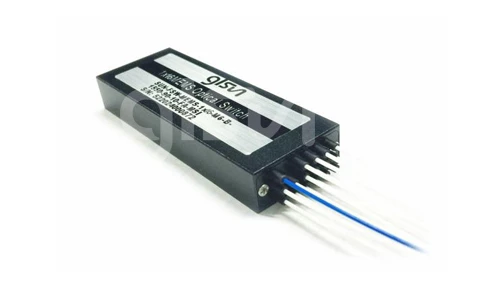

GLSUN 1xN MEMS Optical Switches
Specifications
| Number Of Ports: | 1 – 128 |
|---|---|
| Wavelength Range: | 1310 – 1550 nm |
| Insertion Loss (typical): | 0.6 dB |
| Return Loss: | 40 dB |
| Storage Temperature: | -40~+85 ℃ |
| WDL: | ≤0.3 dB |
| PDL: | ≤0.15 dB |
| Crosstalk: | ≥40 50dB |
| Repeatability: | ≤±0.05 dB |
| Operating Temperature: | -5~+70 ℃ |
| Storage Temperature: | -40~+85 ℃ |
Download Data Sheet
Features
- Fast Response
- Low Insertion Loss
- Transparent Wavelength
- Flexible Configuration of Channel Number
Applications
- Intelligent Optical Cross Network
- ROADM
- Automatic Test System
Frequently Asked Questions
What is the operating wavelength range of the GLSUN 1xN MEMS optical switch?
The operating wavelength range is from 1260 to 1670nm.
How many channels can a single GLSUN 1xN MEMS optical switch support?
A single device can support up to 128 channels.
What are the features of the GLSUN 1xN MEMS optical switch?
The features include fast response, low insertion loss, transparent wavelength, and flexible configuration of channel number.
What are the applications of the GLSUN 1xN MEMS optical switch?
The applications include intelligent optical cross networks, ROADMs, and automatic test systems.
What are the specifications of the GLSUN 1xN MEMS optical switch?
The specifications include parameters such as wavelength range, insertion loss, return loss, crosstalk, durability cycles, and operating temperature.
