Description

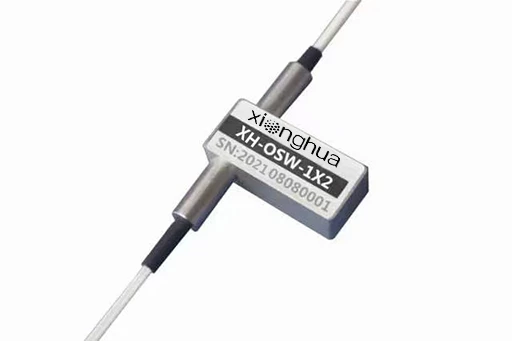

XH-OSW-1X2 optical switch is an optical path control device with the function of controlling the optical path and converting the optical path; it can realize 2 optical signal inputs and select the signal output of one of them (supporting bidirectional use). It has an important role in optical communication applications.

Optical switch is mainly used for multiple optical monitoring of optical transmission system, automatic switching of multiple sources/detectors in LAN, and multi-point dynamic monitoring system of optical sensing Optical test system is used for optical fiber, optical devices, network and field engineering for optical cable testing; installation and commissioning of optical devices.

1X2 Optical Switch

Visit the Xionghua photoelectric Store

Specifications

Number Of Ports: 1 – 2
Wavelength Range: 1260 – 1650 nm
Insertion Loss (typical): 0.5 dB
Return Loss: 50 dB
Transmission Power: ≤ 500 mW
Operating Voltage (V): 3 or 5

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  •  Low insertion loss, wide wavelength range
  •  Low channel crosstalk, high stability, high reliability
  •  Simple control, small size, easy to embed in circuit boards
  •  Selectable locking and non-locking control types

Applications

  • Optical Signal Switching and Routing
  • Optical Network Monitoring
  • Testing of Fiber Optic Component
  • OTDR Testing

Frequently Asked Questions

What is the function of the XH-OSW-1X2 optical switch?
The XH-OSW-1X2 optical switch is an optical path control device that can control and convert the optical path. It allows for 2 optical signal inputs and selects the signal output of one of them.
What are the applications of the XH-OSW-1X2 optical switch?
The XH-OSW-1X2 optical switch is mainly used for optical signal switching and routing, optical network monitoring, testing of fiber optic components, and OTDR testing.
What are the features of the XH-OSW-1X2 optical switch?
The XH-OSW-1X2 optical switch has low insertion loss, wide wavelength range, low channel crosstalk, high stability, high reliability, simple control, small size, and is easy to embed in circuit boards. It also offers selectable locking and non-locking control types.
What is the insertion loss of the XH-OSW-1X2 optical switch?
The insertion loss of the XH-OSW-1X2 optical switch is typically 0.5dB and maximum 1.0dB.
What is the operating temperature range of the XH-OSW-1X2 optical switch?
The XH-OSW-1X2 optical switch has an operating temperature range of -20°C to +70°C.
