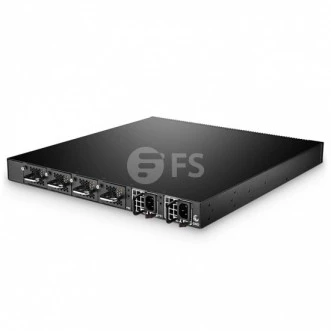

S5850-48T4Q Switch

Specifications

Number Of Ports: 4 – 48
Wavelength Range: 0 – 0 nm
Document icon Download Data Sheet Download icon

Features


  • High-Performance Switching: The S5850-48T4Q offers full line-rate switching at L2/L3 with 48x 10GBase-T ports and 4x 40G uplinks in a compact 1RU form factor.

  • Comprehensive System Software: Comes with complete system software with comprehensive protocols and applications for rapid service deployment and management in both traditional L2/L3 networks.

  • Advanced Features Support: Supports advanced features like MLAG, VXLAN, NVGRE, SNMP, making it ideal for traditional or fully virtualized data centers.

  • Cost-Effective Ethernet Aggregation: Designed for demanding workloads, providing a cost-effective Ethernet aggregation platform for data center applications.

  • High Availability: Features pluggable redundant fans and high-quality electronic components for enhanced reliability.

  • Switch Fabric Capacity: 1.28 Tbps with a forwarding rate of 952.32 Mpps.

  • Robust Hardware Design: Real-time monitoring of temperature and status of fans and power supply, with intelligent speed control for energy efficiency.

  • Metro Ethernet Network Features: Supports QinQ, VlanTranslation, MSTP, ERPS, and various operating rates (1Gbit/s, 10Gbit/s, 40Gbit/s, 100Gbit/s).

  • Open System Design: Programmatic access via Python, Open API, OpenStack Neutron (cloud agent), and OVSDB for VLAN/Tunnel configuration.

  • Traffic Visibility and Troubleshooting: Features CPU Traffic Limit, traffic classification, and behaviors including access control, traffic policing, and class-based packet queuing.

  • Jumbo Frame Support: Supports jumbo frames up to 9600 Bytes.

  • Power Efficiency: Typical/Max Power Draw of 350 W with front-to-back airflow direction.

  • Rack Mountable: 1 RU design with dimensions of 440 x 420 x 44 mm and a unit weight of 8.3 kg.

  • Extended Warranty: Comes with a 5-year warranty for peace of mind.

  • Operating Temperature Range: 0 to 45 ºC (long term) and -5 to 55 ºC (short term).

  • Flexible Power Supply Options: Supports both AC (100-240VAC) and DC (36-75V

Applications


  • Data Center Applications: The S5850-48T4Q is designed for high-performance ToR/Leaf switching in data centers, supporting both traditional and fully virtualized environments.

  • Enterprise Network Requirements: Ideal for enterprise networks requiring robust L2/L3 switching capabilities.

  • Ethernet Aggregation: Cost-effective platform for Ethernet aggregation, suitable for demanding workloads.

  • High Availability: Features such as pluggable redundant fans and high-quality electronic components ensure reliability.

  • Advanced Networking Features: Supports MLAG, VXLAN, NVGRE, and SNMP for enhanced network management and deployment.

  • Traffic Management: Offers traffic visibility and troubleshooting with features like CPU traffic limit, traffic classification, and policing.

  • Open System Design: Supports programmatic access via Python, Open API, OpenStack Neutron, and OVSDB for VLAN/Tunnel configuration.

  • Metro Ethernet Network Features: Includes support for QinQ, VLAN Translation, MSTP, ERPS, and various operating rates (1Gbit/s, 10Gbit/s, 40Gbit/s, 100Gbit/s).
