Description
- High precise ball screw provides high-performance and high-accuracy
- High-load capacity was acceptable for the high precise linear slide guide in vertical movement
- The simple design with the high-performance is very popular for both our home and abroad customers
- Z, XY, XZ, XYZ or Multi-axis stages for special demanding can be achieved by the model
- For longer travels can be designed

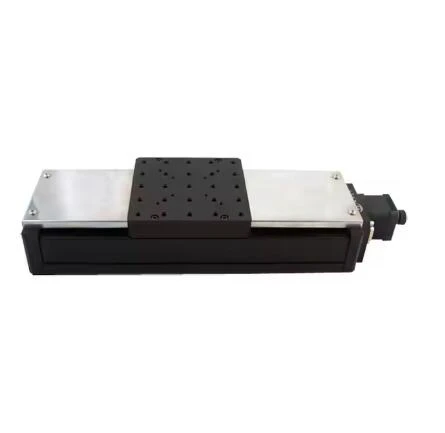

Miniature Motorized High Precision Linear Stages PT-GD105
Beijing PDV Instrument Co., Ltd

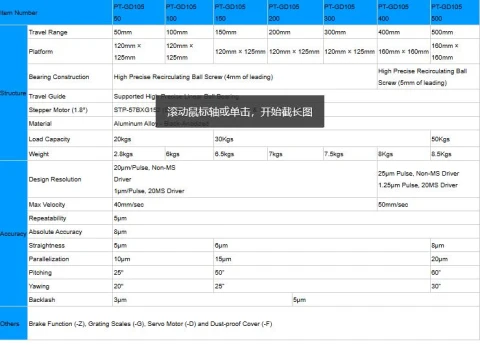

Specifications
| Axes Of Motion: | One |
|---|---|
| Travel Range: | 50 mm |
| Load Capacity (Horizontal): | 20 kg |
| Load Capacity (Vertical): | 20 kg |
| Max Speed: | 40 mm/s |
| Weight: | 2.8 kg |
| Guiding Mechanism: | Other |
| Travel Range: | 50 - 300 mm |
| Platform: | 90x90 mm or 120x120 mm |
| Ball Screw Leading: | 4 mm |
| Stepper Motor: | 42 stepper motor - SHINANO |
| Material: | Aluminum Alloy - Black-Anodized |
| Load Capacity: | 5 - 15 kgs |
| Weight: | 2.75 - 6.3 kgs |
| Design Resolution: | 20 μm/Pulse |
Download Data Sheet
Features
- High Precision Ball Screw: Ensures high-performance and accuracy in movement.
- Versatile Travel Range: Available in travel ranges from 50mm to 300mm, suitable for various applications.
- Stackable Design: Can be configured in XY, XZ, and XYZ stages by stacking 2 or 3 units, providing flexibility in setup.
- Positioning and Protection: Equipped with original position and limit switches at both ends for precise positioning and enhanced protection.
- Stepper Motor: Features a 42 stepper motor from SHINANO with a 1.8° step angle for reliable motion control.
- Durable Construction: Made from black-anodized aluminum alloy for strength and durability.
- Load Capacity: Supports loads ranging from 5kgs to 15kgs, depending on the model.
- Compact and Lightweight: Weighs between 2.75kgs and 6.3kgs, making it easy to integrate into various systems.
- Design Resolution: Offers a design resolution of 20μm per pulse for fine control over position.
Applications
- Robotics and automation
- Spectroscopy
- Imaging
- Inspection and metrology
- Biomedical applications
Frequently Asked Questions
What is a Motorized Linear Stage?
A Motorized Linear Stage is a precision device used for linear positioning applications, typically featuring a high precise ball screw and linear ball bearings, with travel ranges from 50mm to 300mm.
What are the travel ranges available for the Motorized Linear Stages?
The Motorized Linear Stages are available in travel ranges of 50mm, 100mm, 150mm, 200mm, and 300mm.
What type of motor is used in the Motorized Linear Stage?
The Motorized Linear Stage uses a 42 stepper motor from SHINANO with a 1.8° step angle.
What material is the Motorized Linear Stage made of?
The Motorized Linear Stage is made of black-anodized aluminum alloy.
What is the load capacity of the Motorized Linear Stages?
The load capacity varies with the travel range: 15kgs for 50mm, 10kgs for 100mm, 7kgs for 150mm, 5kgs for 200mm, and 5kgs for 300mm.
Can Motorized Linear Stages be combined for multi-axis movement?
Yes, XY, XZ, and XYZ stages can be stacked by using 2 or 3 pieces of the Motorized Linear Stage model.
What is the design resolution of the Motorized Linear Stage?
The design resolution of the Motorized Linear Stage is 20μm per pulse.
