Linear Motorized Stages

The Motorized XY Positioning Stage LSDP-50-JG-2, crafted by Jiangxi Liansheng Technology Co., Ltd, offers precision and reliability for various industrial applications. Located at No 1015, Jinsha Third Road in the Xiaolan Economic Development Zone of Nanchang, Jiangxi Province, the company excels in developing advanced motion control ...

Specifications

Axes Of Motion: Two
Travel Range: 50mm in X & Y Axis mm
Load Capacity (Horizontal): 10 kg
Load Capacity (Vertical): 10 kg
Max Speed: 5 mm/s
...
Data Sheet
The Linear35-z Low Temperature Piezo Linear stage is a compact and high-performance piezoelectric motion unit designed for low temperature (LT) applications. The piezo-linear stage features a closed-loop control system and supports  a built-in position sensing. It provides smooth and accurate movement. The Linear35-z  is ...

Specifications

Axes Of Motion: One
Travel Range: 8 mm
Load Capacity (Horizontal): 0.5 kg
Load Capacity (Vertical): -- kg
Max Speed: 2 mm/s
...
Data Sheet

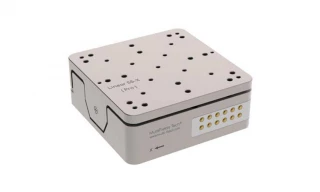

The Linear55-x-Pro Low Temperature Piezo Best motion linear stage is a compact and high-performance piezoelectric motion unit designed for room temperature (LT) applications. The piezo-linear stage features a closed-loop control system and supports  a built-in position sensing.  It provides smooth and accurate movement. ...

Specifications

Axes Of Motion: One
Travel Range: 25 mm
Load Capacity (Horizontal): 0.5 kg
Load Capacity (Vertical): / kg
Max Speed: ~2 mm/s
...
Data Sheet
The Linear55-x-Slim Low Temperature Piezo Linear stage is a compact and high-performance piezoelectric motion unit designed for low temperature (LT) applications. The piezo-linear stage features a closed-loop control system and supports  a built-in position sensing. It provides smooth and accurate movement. The Linear55-x-Slim ...

Specifications

Axes Of Motion: One
Travel Range: 30 mm
Load Capacity (Horizontal): 2.5 kg
Load Capacity (Vertical): -- kg
Max Speed: 2 mm/s
...
Data Sheet
The Linear35-x Low Temperature Piezo Linear stage is a compact and high-performance piezoelectric motion unit designed for low temperature (LT) applications. The piezo-linear stage features a closed-loop control system and supports  a built-in position sensing. It provides smooth and accurate movement. The Linear35-x  is ...

Specifications

Axes Of Motion: One
Travel Range: 20 mm
Load Capacity (Horizontal): 2.5 kg
Load Capacity (Vertical): / kg
Max Speed: ~2 mm/s
...
Data Sheet
The Linear25-z-LR Low Temperature Piezo Linear stage is a compact and high-performance piezoelectric motion unit designed for low temperature (LT) applications. The piezo-linear stage features a closed-loop control system and supports  a built-in position sensing. It provides smooth and accurate movement. The Linear25-z-LR ...

Specifications

Axes Of Motion: One
Travel Range: 16 mm
Load Capacity (Horizontal): 0.3 kg
Load Capacity (Vertical): / kg
Max Speed: ~2 mm/s
...
Data Sheet
The Mx series motorized positioning systems by Zolix are designed to provide flexible adjustments and precise positioning in limited spaces. These systems are based on four-axis or more-axis motorized combinations, offering high integration and customization options. They are ideal for applications such as fine optical path ...

Specifications

Axes Of Motion: Three
Travel Range: 400 mm
Load Capacity (Horizontal): 10 kg
Load Capacity (Vertical): -- kg
Max Speed: 10 mm/s
...
Data Sheet
Zolix Instruments presents slim motorized linear stages for customers in scientific and industrial environments who are looking for precision motion control.  The key parts of TSA-C series slim motorized linear stages include grinding ball screws, cross-roller guides and high-quality shaft coupling. This configuration ensures ...

Specifications

Axes Of Motion: One
Travel Range: 30-50 mm
Load Capacity (Horizontal): 10 kg
Load Capacity (Vertical): 3 kg
Max Speed: 10 mm/s
...
Data Sheet

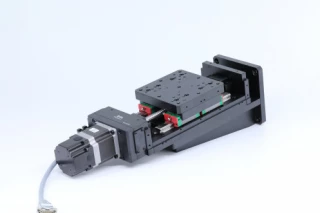

The PAxx-Z series precise motorized vertical-motion stages are newly developed products based on Zolix's standard PA-11-X series motorized linear stages. These stages feature the addition of a set of right-angle fixing blocks and a power-failure protection unit. Apart from the motion direction and loading capability, all other ...

Specifications

Axes Of Motion: One
Travel Range: 50 mm
Load Capacity (Horizontal): -- kg
Load Capacity (Vertical): 15 kg
Max Speed: 40 mm/s
...
Data Sheet

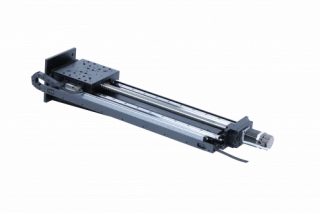

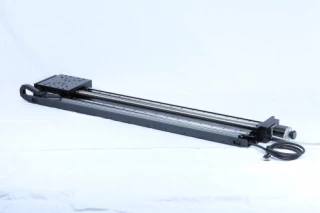

KAxx-Z series high-precision motorized vertical-motion stages are derivative models of Zolix's KA-11-X products. An added right-angle fixing block and a set of power-failure protection unit ensure KAxx-Z series stages can be used as high-precision vertical-motion carriers. Except for motion direction and loading capability, others ...

Specifications

Axes Of Motion: One
Travel Range: 50 mm
Load Capacity (Horizontal): -- kg
Load Capacity (Vertical): 15 kg
Max Speed: 40 mm/s
...
Data Sheet

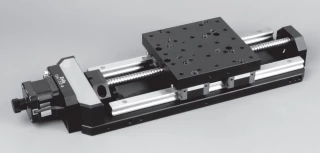

The TSA-B series motorized linear stages are designed with a square guide as the core part of their guiding system. These stages feature industrial-grade ball screws and high-quality elastic shaft coupling, ensuring high performance and reliability. Equipped with mechanical position-limit switches and an origin-point sensor, these ...

Specifications

Axes Of Motion: One
Travel Range: 50 mm
Load Capacity (Horizontal): 30 kg
Load Capacity (Vertical): 5 kg
Max Speed: 40 mm/s
...
Data Sheet

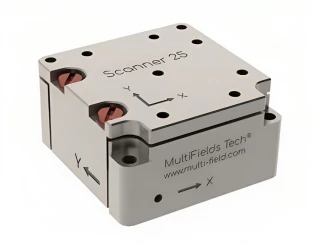

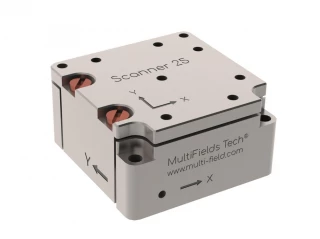

The Scanner25-xy Piezo-Linear Stage is a high-load scanner stage designed for low-temperature (LT) applications. It is part of the "25 mm Series" by MultiFields Technologies and offers precise and reliable motion control in extreme environments. The piezo-linear stage features a compact design and closed-loop control system, making ...

Specifications

Axes Of Motion: Two
Travel Range: 0.12 mm
Load Capacity (Horizontal): 0.2 kg
Load Capacity (Vertical): 0.1 kg
Max Speed: 2 mm/s
...
Data Sheet

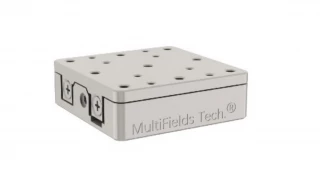

The LS25x.Lab.R Piezo-Linear Stage is a compact and high-performance piezoelectric motion unit designed for room temperature (RT) applications. It is part of the "Lab Series" by MultiFields Technologies and offers precise and reliable motion control. The piezo-linear stage features a closed-loop control system and supports ...

Specifications

Axes Of Motion: One
Travel Range: 8-30 mm
Load Capacity (Horizontal): 0.2 kg
Load Capacity (Vertical): 0.1 kg
Max Speed: 20 mm/s
...
Data Sheet
The Ambient Temperature · 3-D Piezoelectric Scanning Table is a high-precision motion control device designed for scanning and positioning in applications such as precision optics and semiconductor characterization. With three degrees of freedom and exceptional accuracy, this scanning table offers precise and reliable ...

Specifications

Axes Of Motion: Three
Travel Range: 0.15 mm
Load Capacity (Horizontal): 0.5 kg
Load Capacity (Vertical): 0.5 kg
Max Speed: not specified mm/s
...
Data Sheet
The Txx series motorized supporting frame systems are engineered with advanced configurations, including dual-X and dual-Z axes, as well as versatile combinations of both, to cater to diverse motion control requirements. These systems feature a sophisticated dual-side driven mechanism, meticulously designed to ensure unparalleled ...

Specifications

Axes Of Motion: One
Travel Range: 50-1200 mm
Load Capacity (Horizontal): 20 kg
Load Capacity (Vertical): 20 kg
Max Speed: 20 mm/s
...
Data Sheet

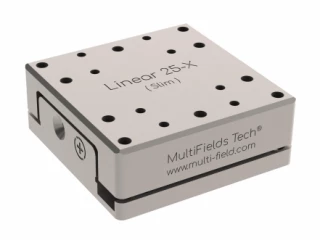

Linear 25-x series piezo stage combines a compact size with excellent motion performance. They can be used in ultra-high vacuum and very low-temperature environments, they are made of non-magnetic material composed of pure Ti and BeCu. It is ideal for nano-positioning applications.

Specifications

Axes Of Motion: One
Travel Range: 6 mm
Load Capacity (Horizontal): 0.5 kg
Load Capacity (Vertical): 0.3 kg
Max Speed: 3 mm/s
...
Data Sheet

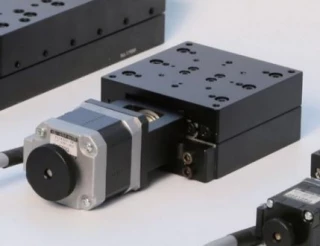

CXP series linear stages are high-precision motorized linear stages designed and manufactured by Zolix, especially for the use cases where small-size and high frequency of operation are of high importance. Hard Aluminum Body: This family of products is made of hard aluminum alloy with black anodic-oxidation surface ...

Specifications

Axes Of Motion: One
Travel Range: 15-100 mm
Load Capacity (Horizontal): 5-30 kg
Load Capacity (Vertical): 3-5 kg
Max Speed: 20 mm/s
...
Data Sheet

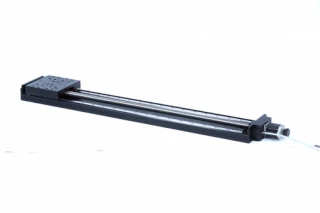

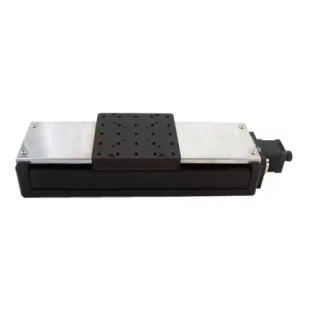

Zolix Instrument presents PS Series Precise Motorized Linear Stages Our PA series products are designed as middle-size and middle-travel-range precise motorized stages. The base plates in this series employ high-rigidity U-type structure to ensure this product line would be suitable for the operations in the circumstances of ...

Specifications

Axes Of Motion: One
Travel Range: 50-1000 mm
Load Capacity (Horizontal): 30-80 kg
Load Capacity (Vertical): null kg
Max Speed: 50 mm/s
...
Data Sheet
The SD15/30.x.C  is a compact and high-performance piezoelectric motion unit designed for room temperature (RT) applications.  The piezo-linear stage features a closed-loop control system and supports resistance type position sensing. With its ultra-quiet motion and 20 kHz drive frequency, it provides smooth and accurate ...

Specifications

Axes Of Motion: One
Travel Range: 0.015-0.030 mm
Load Capacity (Horizontal): -- kg
Load Capacity (Vertical): -- kg
Max Speed: -- mm/s
...
Data Sheet

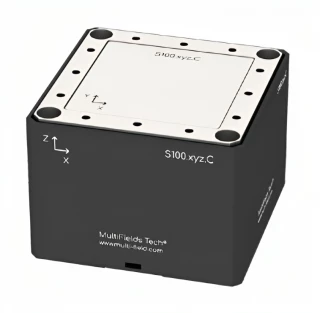

The S100.xyz.C — 2D/3D Scanning Stage is a compact and high-performance piezoelectric motion unit designed for room temperature (RT) applications. It is part of the "Lab Series" by MultiFields Technologies and offers precise and reliable motion control. The piezo-linear stage features a closed-loop control system and supports ...

Specifications

Axes Of Motion: Two, Three
Travel Range: 0.1 mm
Load Capacity (Horizontal): -- kg
Load Capacity (Vertical): -- kg
Max Speed: -- mm/s
...
Data Sheet

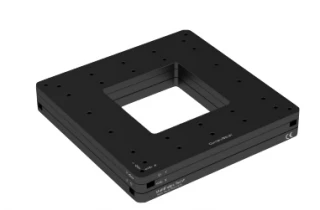

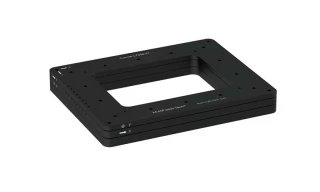

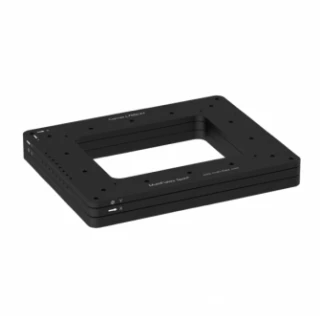

The Carrier.L7550.XY,2D linear stage is a compact and high-performance piezoelectric motion unit designed for room temperature (RT) applications. It is part of the "Lab Series" by MultiFields Technologies and offers precise and reliable motion control. The piezo-linear stage features a closed-loop control system and supports ...

Specifications

Axes Of Motion: One
Travel Range: 75 mm
Load Capacity (Horizontal): 2 kg
Load Capacity (Vertical): / kg
Max Speed: 10 mm/s
...
Data Sheet
The S300.x.C — Single-Axis Scanning Motion Piezoelectric Stage is a compact and high-performance piezoelectric motion unit designed for room temperature (RT) applications.  The piezo-linear stage features a closed-loop control system and supports resistance type position sensing. With its ultra-quiet motion and 20 kHz ...

Specifications

Axes Of Motion: One
Travel Range: 0.3 mm
Load Capacity (Horizontal): 0.5 kg
Load Capacity (Vertical): -- kg
Max Speed: -- mm/s
...
Data Sheet

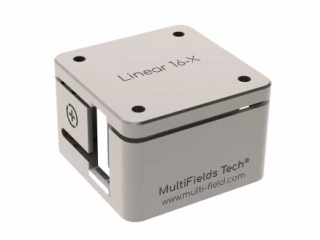

The Linear16-x Low Temperature Piezo Linear stage is a compact and high-performance piezoelectric motion unit designed for low temperature (LT) applications. The piezo-linear stage features a closed-loop control system and supports  a built-in position sensing. It provides smooth and accurate movement.The Linear16-x  is ...

Specifications

Axes Of Motion: One
Travel Range: 3 mm
Load Capacity (Horizontal): 0.05 kg
Load Capacity (Vertical): / kg
Max Speed: 2 mm/s
...
Data Sheet
The SH30.xyz.C is a compact and high-performance piezoelectric motion unit designed for room temperature (RT) applications.  The piezo-linear stage features a closed-loop control system and supports resistance type position sensing. With its ultra-quiet motion and 20 kHz drive frequency, it provides smooth and accurate ...

Specifications

Axes Of Motion: One
Travel Range: 0.03 mm
Load Capacity (Horizontal): 10 kg
Load Capacity (Vertical): -- kg
Max Speed: -- mm/s
...
Data Sheet

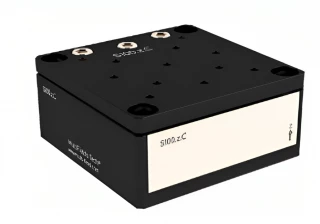

The S100.z.C / S — Single-Axis Scanning Motion Linear Stage is a compact and high-performance piezoelectric motion unit designed for room temperature (RT) applications.  The piezo-linear stage features a closed-loop control system and supports resistance type position sensing. With its ultra-quiet motion and 20 kHz drive ...

Specifications

Axes Of Motion: One
Travel Range: 0.1 mm
Load Capacity (Horizontal): 0.5 kg
Load Capacity (Vertical): -- kg
Max Speed: -- mm/s
...
Data Sheet

Frequently Asked Questions

Almost invariably all motorized linear stages have gear mechanisms (dove-tail bearings, crossed-roller slides, etc.) which are lubricated by special grease. Depending on the type of the grease they may or may not evaporate under low pressure. Special types of grease, O-rings and sealants are used for vacuum compatible stages to survive extremely low pressure environments.

The main difference between a servo motor and stepper motor is in the fashion of motion. In a servo motor the motion happens on a continuous fashion and requires a special encoder and a feedback loop to precisely know the position of the translation stage at any given point in time. In contrast, stepper motor operates in a discrete fashion, moving from one position to another and thus can locate the position by simply counting the steps.

The main advantage of the servo motor is the continuously smooth movement along the motion axis. Built correctly they can offer the ultimate performance for the most demanding motion control applications. This advantage comes with a cost of a more complicated set up that requires an encoder and a feedback loop to measure the position accurately. Understandably it also comes with a higher price tag. With the same token, the stepper motors are simpler in construction and are usually cheaper.

In the context of linear motorized stages, they simply mean the position of the driver shaft relative to the body of the stage. If the shaft is pushing the translation stage from the center, it is referred to as center-driven. Likewise for left/right aligned shafts they are called left-driven or right-driven.

Most manufacturers will quote both the horizontal and vertical load capacities. It is very important to operate those stages within these specified values. Otherwise all other parameters, such as reproducibility, accuracy, velocity linearity, etc. will become void. In extreme cases you might even stall or even damage the drive train.

Yes it is possible to stack two or more linear motorized stages to achieve multi-axis motion control. However in doing so, you should carefully calculate the load capacities to ensure that you are staying with the manufacturer specified ranges.

Motorized linear stages are highly precise sophisticated instruments. Depending on their specifications, construction material, type of motor used the prices will vary from under $1,000 to upwards of $10,000. Price will be higher if you include a separate controller and other accessories. For any specific product posted on FindLight please contact the respective supplier form the specific product page.

Encoders are electronic feedback devices that give precise information about the location of the drive shaft during the motion of stage. This is an important component in a servo motor driven motorized stage.

There are 122 different Linear Motorized Stages from suppliers and manufacturers listed in this category. In just a few clicks you can compare different Linear Motorized Stages with each other and get an accurate quote based on your needs and specifications. Please note that the prices of Linear Motorized Stages vary significantly for different products based on various factors including technical parameters, features, brand name, etc. Please contact suppliers directly to inquire about the details and accurate pricing information for any product model. Simply navigate to the product page of interest and use the orange button to directly reach out to the respective supplier with one click.

Did You know?

Linear Motorized Stages are linear translation stages controlled by a motor (often by a DC step motor). They provide highly precise positioning along one or more axes. Most stages in the optomechanics domain are also equipped with a precise highly sensitive encoder that measures the position of the translation stage at any given point in time. Combined with an appropriate motion controller these devices can offer in-vivo motion control in numerous experimental settings. From spectroscopy pump-probe experiments to scanning of optics in a Monochromator these precise devices offer precise motion control and feedback into the experimental set up. Several new parameters come into consideration when selecting the proper motorized linear stage. This includes the position stability and accuracy, repeatability, encoder sensitivity and reading accuracy, acceleration and linearity of velocity, vertical and horizontal load capacities. Depending on your application you might want to pay close attention to these specs and choose a motorized stage that fits your application. You will probably also need a separate motion controller, which is often sold separately. On FindLight you will find motorized linear translation stages from world leading manufacturers and suppliers.
