Description
The TSA-B Series Motorized Linear Stages are designed for precision motion control in demanding applications. These stages feature square guides for superior load-bearing capabilities and high stability.
With industrial-grade ball screws, these stages deliver smooth, precise motion and are equipped with two-phase stepping motors for optimal performance. The TSA-B Series offers a range of travel lengths from 50 mm to 300 mm, making them versatile for various heavy-load applications.
These stages are equipped with mechanical position-limit switches and an origin-point sensor, ensuring reliable and protected operation. The black anodic-oxidation aluminum-alloy construction provides durability and smooth motion. The stages also feature easy integration with Zolix’s other systems through standard electrical and mechanical interfaces.
The TSA-B series is ideal for high-performance applications requiring stability, accuracy, and heavy-load capabilities, such as research and industrial automation.

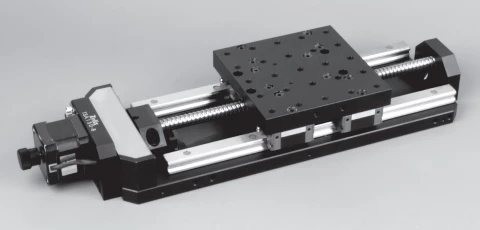

TSA50-B Square Guide Motorized Linear Stage
Specifications
| Axes Of Motion: | One |
|---|---|
| Travel Range: | 50 mm |
| Load Capacity (Horizontal): | 30 kg |
| Load Capacity (Vertical): | 5 kg |
| Max Speed: | 40 mm/s |
| Weight: | 3.4 kg |
| Guiding Mechanism: | High-Precision Profiled Rails |
| Voltage Requirement: | Not Specified |
| Table Dimensions: | 120x120 mm |
| Torque Of Motor: | 0.42 N·m |
| Working Current: | 1.7 A |
| Motor And Its Stepping Angle (°): | Two-phase 42 stepping motor, 0.9 |
| Backlash Clearance: | ≤7 µm |
| Repositioning Accuracy: | ≤±5 µm |
| Resolution (step/half-step: | 10/5 µm |
| Transmission Mechanism: | Ball screws |
| Guiding Mechanism: | Linear-slider guides |
Download Data Sheet
Features
- Heavy Load Capability: Supports up to 30 kg in horizontal direction for stable performance
- High-Precision Motion: 4 mm lead pitch industrial-grade ball screws for smooth, precise movement
- Versatile Travel Range: Available in travel ranges from 50 mm to 300 mm
- Stepping Motor Driven: Two-phase stepping motor for optimal performance and cost efficiency
- Standard Interfaces: Easy signal communication and compatibility with other Zolix products
- Durable Construction: Black anodic-oxidation aluminum-alloy body for long-lasting use
- Positioning Accuracy: High-resolution stepper motor with ≤±5 µm repositioning accuracy
- Safety Features: Built-in position-limit and origin-point sensors for reliable operation
Applications
- Research Laboratories: Ideal for high-precision alignment and positioning in scientific experiments
- Industrial Automation: Used in heavy-load applications requiring precise motion control
- Manufacturing and Testing: Perfect for systems requiring stable running and minimal mechanical backlash
- Multi-Axis Systems: Easily integrates with other stages for advanced motion control setups
- Optical and Microscopy Systems: Provides stable, precise motion for positioning optical components in advanced imaging systems
Frequently Asked Questions
What are the main features of the TSA-B series motorized linear stages?
The TSA-B series motorized linear stages feature industrial-grade ball screws, high-quality elastic shaft coupling, mechanical position-limit switches, and an origin-point sensor. They also have standard electrical and mechanical interfaces for easy signal communications and can be operated manually using a handwheel.
What are the applications of the TSA-B family of motorized linear stages?
The TSA-B family of motorized linear stages is most applicable in heavy-loading and stable-running scenarios. They are suitable for various applications that require heavy-load capabilities.
What are the dimensions and weight of the TSA-B series motorized linear stages?
The dimensions and weight of the TSA-B series motorized linear stages vary depending on the model. The table dimensions range from 120x120mm to 300mm, and the weight ranges from 3.4kg to 5.3kg.
What is the highest speed and repositioning accuracy of the TSA-B series motorized linear stages?
The highest speed of the TSA-B series motorized linear stages is 40mm/s. The repositioning accuracy is ≤±5µm.
What are the electrical specifications of the TSA-B series motorized linear stages?
The TSA-B series motorized linear stages are equipped with a two-phase stepping motor with a stepping angle of either 0.9° or 1.8°. The working current is 1.7A, and the torque of the motor is 0.42N·m.
