How do motion generation and feedback work in vacuum compatible stages?

Motion is typically generated by vacuum-rated stepper motors, brushless DC motors placed outside the chamber with magnetic or mechanical feedthroughs, or in-vacuum piezo actuators for fine positioning. Position feedback is provided by vacuum-compatible encoders (e.g., optical linear scales with low-outgassing components or magnetic encoders) or integrated piezo position sensors, with all sensors and cables designed for bake-out temperatures and minimal outgassing.

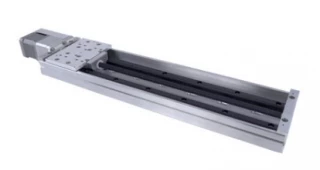

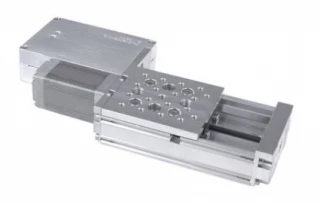

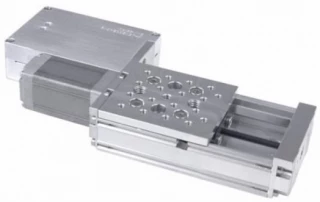

What are the main sub-types of vacuum compatible motorized stages and their typical use cases?

Common sub-types include linear stages for translational positioning, rotary stages for azimuthal adjustment, and goniometers or tilt stages for angular alignment of optics, wafers, or samples. There are also piezo-driven nanopositioners for sub-nanometer resolution in beamlines and microscopy, and crossed-roller or flexure-guided stages for high stiffness and zero backlash under vacuum conditions.

Which key specifications should I focus on when selecting a custom vacuum compatible stage for my application?

Critical parameters include vacuum rating (e.g., 10⁻⁶ vs 10⁻⁹ mbar), load capacity, travel range, resolution, repeatability, and usable speed at your pressure and temperature conditions. You should also check bake-out temperature limits, allowable particle generation, cable and feedthrough configuration, and whether the drive and encoder technology match your required precision and duty cycle.

How do design and construction choices (bearings, lubricants, materials) impact performance in vacuum environments?

Bearing type (crossed-roller, ball, or flexure) affects stiffness, friction, and particle generation; flexure systems offer frictionless motion but limited travel, while crossed-roller stages provide higher load capacity at the cost of more complex lubrication. Solid lubricants (e.g., MoS₂ coatings), dry-running bearings, and stainless steel or aluminum alloys with appropriate surface treatments reduce outgassing and stick-slip, but may trade off lifetime or maximum speed versus oil-lubricated, atmosphere-only designs.

What are typical lead times and cost drivers for custom vacuum compatible motorized stages?

Lead times are often in the 8–16 week range, depending on the degree of customization, the need for UHV qualification, and any special materials or encoders. Major cost drivers include vacuum rating (HV vs UHV), travel length, positioning accuracy, motor and encoder type, cleanliness requirements (e.g., ISO class, particle testing), and whether the design is a modification of a standard platform or a fully custom assembly.

How can I find, compare, and request quotes for custom vacuum compatible motorized stages on FindLight without creating an account?

On FindLight, navigate to Motion Control → Motorized Stages → Custom Vacuum Compatible and use the filters for travel range, load capacity, vacuum level, and actuator type to narrow options. You can also compare technical specifications, and use the built-in inquiry form on each listing to send your specifications directly to the supplier without registration.
