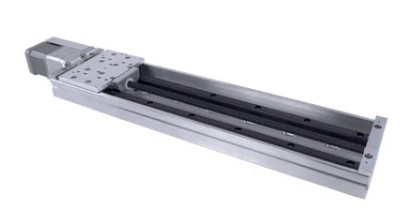

High Vacuum Motorized Linear Stage X-LSM150B-SV2
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
The X-LSM-SV2 Series by Zaber represents a leap forward in the realm of motorized linear stages, specifically designed for high-vacuum environments. These compact devices integrate a built-in controller, facilitating seamless operation without the need for additional hardware. With a sleek profile of just 21 mm in height, the X-LSM-SV2 is ideal for applications demanding minimal space without compromising on performance.
Crafted with vacuum-compatible materials, these stages are engineered to minimize outgassing, significantly reducing pump down times. This makes them an excellent choice for environments where maintaining a high vacuum is critical. The X-LSM-SV2 Series is designed to be user-friendly, embodying Zaber's commitment to 'plug and play' solutions, which ensures that setup and operation are straightforward and efficient.
The versatility of the X-LSM-SV2 is further enhanced by its connectivity options. These stages can be easily connected to a computer via RS-232 or USB ports. Moreover, they support daisy-chaining with other Zaber products, allowing multiple devices to share a single power supply. This feature not only simplifies power management but also streamlines the integration of multiple devices into a cohesive system.
In summary, the X-LSM-SV2 Series is a robust solution for those seeking reliable, high-performance motorized linear stages suitable for vacuum applications. Its compact design, ease of use, and advanced connectivity options make it a standout choice for professionals looking to optimize their motion control systems.
High Vacuum Motorized Linear Stage X-LSM150B-SV2
Specifications |
|
|---|---|
| Number Of Axes: | One |
| Vacuum Grade: | 10 mbar |
| Vacuum Compatibility: | 10-6 Torr |
| Travel Range: | 25, 50, 100, 150, 200 mm |
| Load Capacity: | 10 kg |
| Maximum Speed: | 100 mm/s |
| Power Supply: | 24-48 VDC |
| Microstep Size: | 0.1905 µm |
| Travel Range: | 152.4 mm |
| Accuracy (unidirectional): | 46 µm |
| Vertical Runout: | < 8 µm |
| Horizontal Runout: | < 12 µm |
Features
- Vacuum Compatibility: Designed for high-vacuum environments, compatible up to 10-6 Torr.
- Varied Travel Options: Available in 25, 50, 100, 150, and 200 mm travel ranges to suit diverse applications.
- High Load Capacity: Supports up to 10 kg, making it ideal for demanding tasks.
- Speed and Thrust: Capable of reaching speeds up to 100 mm/s and generating thrust up to 35 N.
- Integrated Controller: Comes with a built-in controller and can be daisy-chained with other Zaber products for streamlined operation.
- Minimal Wiring: Requires only 4 feedthrough wires to control all units in a daisy-chain via a serial port (with an X-PIB adaptor).
- Compact Design: At just 21 mm high, it's perfect for applications requiring a low profile.
- Easy Connectivity: Connects to RS-232 or USB ports on any computer and shares power in a daisy-chain setup.
- Precision and Accuracy: Features a default microstep size of 0.1905 µm, with unidirectional accuracy of 46 µm and repeatability of less than 4 µm.
- Robust Mechanical System: Equipped with a precision lead screw and needle roller bearing guide type for reliable performance.
- Power Requirements: Operates on a 24-48 VDC power supply, with a maximum current draw of 350 mA.
- Stepper Motor: Utilizes a 2-phase stepper motor with a rated current of 800 mA/phase.
- Durable Construction: Built with vacuum-compatible materials to minimize outgassing and reduce pump-down times.
- Plug and Play: Designed for easy setup and operation, ensuring a hassle-free experience.
Applications
- Vacuum System Automation: Ideal for precise positioning tasks within vacuum chambers requiring low outgassing materials.
- Optical Alignment: Enables accurate and stable positioning of optical components in laser and photonics setups.
- Semiconductor Processing: Suitable for wafer positioning and microfabrication under vacuum conditions.
- Research and Development: Supports precision experiments in physics, materials science, and advanced engineering labs.
- High-Precision Assembly: Facilitates micromechanical assembly with reliable, smooth linear motion control.
Frequently Asked Questions
The X-LSM-SV2 has a load capacity of 10 kg.
The X-LSM-SV2 can reach speeds of up to 100 mm/s.
Yes, the X-LSM-SV2 can be connected to the RS-232 port or USB port of any computer for control.
The X-LSM-SV2 has a compact size and is only 21 mm high.
Yes, the X-LSM-SV2 is designed to be 'plug and play' and is very easy to set up and operate.
