The X-LRQ-SV2 Series by Zaber is a groundbreaking solution in the realm of high-vacuum, computer-controlled motorized linear stages. These devices are engineered to offer exceptional stiffness, load capacity, and extended lifespan, all within a remarkably compact design. Standing at a mere 36 mm in height, these stages are perfect for applications that demand a low-profile setup.
One of the key advantages of the X-LRQ-SV2 Series is its ability to be seamlessly integrated into various systems. These stages connect effortlessly to any computer via RS-232 or USB ports and can be daisy-chained with other Zaber products. This capability not only simplifies the setup process but also allows multiple devices to share a single power supply, enhancing efficiency and reducing clutter.
Designed with user-friendliness in mind, the X-LRQ-SV2 Series is a 'plug and play' solution, making it incredibly easy to set up and operate. The stages are capable of achieving impressive speeds of up to 205 mm/s while supporting loads of up to 100 kg. This makes them ideal for a wide range of applications where performance and reliability are paramount.
Additionally, the X-LRQ-SV2 Series is vacuum compatible up to 10-6 Torr, making it suitable for high-vacuum environments. Its innovative design and robust construction ensure that it meets the rigorous demands of precision motion control applications, while the built-in controller further simplifies operation.
Overall, Zaber's X-LRQ-SV2 Series offers a comprehensive solution for those seeking reliable and efficient motion control in high-vacuum settings. Its compact design, ease of integration, and high performance make it a standout choice for professionals in various industries.

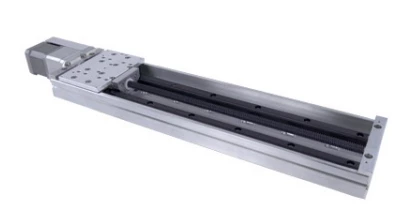

High Vacuum Motorized Linear Stage X-LRQ450AL-SV2
Specifications |
|
|---|---|
| Number Of Axes: | One |
| Vacuum Grade: | 10 mbar |
| Vacuum Compatibility: | 10-6 Torr |
| Travel Range: | 75, 150, 300, 450, 600 mm |
| Load Capacity: | 100 kg |
| Maximum Speed: | 205 mm/s |
| Power Supply: | 24-48 VDC |
| Minimum Speed: | 0.000061 mm/s |
| Speed Resolution: | 0.000061 mm/s |
| Communication Interface: | RS-232 |
| Vertical Runout: | < 200 µm |
| Horizontal Runout: | < 62 µm |
Features
- Vacuum Compatibility: Designed for high vacuum environments, compatible up to 10-6 Torr.
- Multiple Travel Options: Available in 75, 150, 300, 450, and 600 mm travel lengths to suit various applications.
- High Load Capacity: Capable of supporting loads up to 100 kg.
- Fast and Powerful: Achieves speeds up to 205 mm/s with a peak thrust of 100 N.
- Integrated Controller: Features a built-in controller that allows daisy-chaining with other Zaber products.
- Efficient Wiring: Requires only four feedthrough wires for controlling all units in a daisy-chain via serial port (with an X-PIB adaptor).
- Compact Design: At just 36 mm high, ideal for low-profile applications.
- Plug and Play: Easy to set up and operate, compatible with RS-232 or USB port connections.
- Precision and Accuracy: Offers a microstep size of 0.09921875 µm, with unidirectional accuracy of 135 µm.
- Robust Construction: Built with a recirculating ball linear guide for high stiffness and durability.
- Flexible Power Options: Operates with a standard 24 V or 48 V power supply, sharing power in daisy-chain configurations.
- Advanced Motion Capabilities: Capable of bolting together into an XY system for multi-axis motion control.
- Environmentally Resilient: Operates effectively within a wide temperature range, suitable for various conditions.
Applications
- Vacuum Systems: Precision positioning for instrumentation inside high-vacuum chambers.
- Semiconductor Manufacturing: Precise wafer handling and alignment tasks.
- Optical Testing and Metrology: Accurate linear translation in optical measurement devices.
- Scientific Research: Laboratory automation requiring clean, vacuum-compatible motion.
- Multi-Axis Automation: Configurable for XY stage setups in complex motion control systems.
Frequently Asked Questions
The X-LRQ-SV2 series has a load capacity of up to 100 kg.
The X-LRQ-SV2 series can achieve speeds of up to 205 mm/s.
Yes, the X-LRQ-SV2 series is vacuum compatible up to 10-6 Torr.
Only 4 feedthrough wires are required to control all units in the daisy-chain via serial port (with an X-PIB adaptor).
Yes, these stages can bolt together into an XY system.
