High Vacuum Motorized Linear Stage X-LRQ300BL-SV2
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
Zaber's X-LRQ-SV2 Series linear stages are a groundbreaking solution for applications requiring high-vacuum environments and precise motion control. These motorized stages are designed with high stiffness and load capacity, ensuring reliability and longevity even in demanding conditions. Despite their robust capabilities, these stages maintain a compact form factor, standing at just 36 mm in height, making them ideal for setups where space is at a premium.
One of the standout features of the X-LRQ-SV2 Series is its ease of integration and operation. Each unit is a stand-alone device that requires only a standard 24 V or 48 V power supply. The stages are equipped with a built-in controller and can be easily connected to the RS-232 or USB port of any computer. Additionally, they support daisy-chaining with other Zaber products, allowing for streamlined power sharing and control through a single interface.
The innovative design of the X-LRQ-SV2 Series allows for impressive performance metrics, with speeds reaching up to 205 mm/s and the ability to support loads up to 100 kg. This makes them suitable for a wide range of applications where high speed and heavy load capacity are essential. Furthermore, the plug-and-play nature of these stages ensures that users can quickly set up and start operating their systems with minimal hassle.
For those looking to construct multi-axis systems, the X-LRQ-SV2 Series offers the flexibility to bolt stages together into an XY configuration. This versatility, combined with their high-vacuum compatibility and precision engineering, makes Zaber's X-LRQ-SV2 Series an excellent choice for advanced motion control applications.

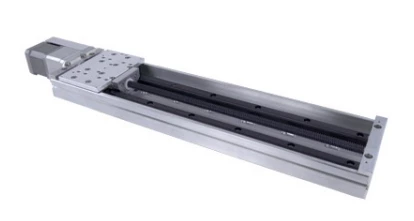

High Vacuum Motorized Linear Stage X-LRQ300BL-SV2
Specifications |
|
|---|---|
| Number Of Axes: | One |
| Vacuum Grade: | 10 mbar |
| Vacuum Compatibility: | 10-6 Torr |
| Travel Range: | 75, 150, 300, 450, 600 mm |
| Load Capacity: | 100 kg |
| Speed: | Up to 205 mm/s |
| Thrust: | Up to 100 N |
| Power Supply: | 24-48 VDC |
| Microstep Size (Default Resolution): | 0.49609375 µm |
| Minimum Speed: | 0.000303 mm/s |
| Speed Resolution: | 0.000303 mm/s |
| Guide Type: | Recirculating Ball Linear Guide |
| Vertical Runout: | < 190 µm |
| Horizontal Runout: | < 31 µm |
| Maximum Current Draw: | 1200 mA |
| Linear Motion Per Motor Rev: | 6.35 mm |
| Motor Steps Per Rev: | 200 |
| Motor Type: | Stepper (2 phase) |
| Motor Rated Current: | 2100 mA/phase |
Features
- Vacuum Compatibility: High vacuum compatibility up to 10-6 Torr, ideal for sensitive environments.
- Travel Options: Available in various travel lengths: 75, 150, 300, 450, and 600 mm.
- Load Capacity: Supports loads up to 100 kg, ensuring robust performance for heavy-duty applications.
- Speed and Thrust: Achieves speeds up to 205 mm/s and thrust up to 100 N for efficient motion control.
- Built-in Controller: Features an integrated controller that allows easy daisy-chaining with other Zaber products.
- Minimal Wiring: Requires only 4 feedthrough wires to control all units in a daisy-chain via serial port with an X-PIB adaptor.
- Compact Design: At just 36 mm high, these stages are perfect for low-profile applications.
- Plug and Play: Designed for easy setup and operation, making it user-friendly and efficient.
- Connectivity: Connects to RS-232 or USB ports for seamless integration with any computer system.
- Power Efficiency: Multiple X-Series products can share a single power supply, optimizing energy use.
- Precision Engineering: Features a precision lead screw and recirculating ball linear guide for smooth and accurate motion.
- Advanced Sensing: Includes magnetic home sensor for precise limit or home sensing.
- Temperature Range: Operates efficiently within a wide temperature range, suitable for various environments.
- Flexible Mounting: Equipped with M6 and M3 threaded holes for versatile mounting options.
Applications
- Vacuum-Compatible Motion Control: Ideal for precision positioning in vacuum chambers down to 10⁻⁶ Torr.
- Semiconductor & Electronics Manufacturing: Supports wafer inspection, alignment, and processing tasks.
- Scientific Research Automation: Enables automated experiments requiring high repeatability and load capacity.
- Optics and Photonics Alignment: Facilitates precise optical component positioning within compact setups.
- Multi-Axis System Integration: Combines easily into XY configurations for complex motion applications.
Frequently Asked Questions
The X-LRQ-SV2 Series linear stage has a load capacity of up to 100 kg.
The X-LRQ-SV2 Series linear stage can achieve speeds up to 205 mm/s.
Yes, the X-LRQ-SV2 Series linear stage can be controlled with a computer via the RS-232 port or USB port.
The X-LRQ-SV2 Series linear stage has a height of only 36 mm, making it ideal for applications where a low profile is required.
Yes, multiple X-LRQ-SV2 Series linear stages can share a single power supply through daisy-chaining.
