Description
The X-LSM-SV2 is a cutting-edge motorized linear stage engineered for low vacuum environments, offering a seamless integration of high performance and compact design. This advanced stage is part of Zaber's renowned X-LSM-SV2 Series, known for its robust construction and outstanding operational capabilities. With a built-in controller, the X-LSM-SV2 ensures a hassle-free setup, requiring only a standard 24 V or 48 V power supply. Its compatibility with RS-232 or USB ports allows for straightforward connectivity to any computer, facilitating easy control and management.
One of the standout features of the X-LSM-SV2 is its ability to daisy-chain with other Zaber products. This innovative feature not only simplifies the wiring process but also enables multiple devices to share a single power supply, enhancing efficiency and reducing clutter. The device's compact form factor, standing at only 21 mm high, makes it ideal for applications where space is at a premium, without compromising on performance.
Designed with vacuum-compatible materials, the X-LSM-SV2 minimizes outgassing, ensuring faster pump-down times and optimal performance in vacuum conditions. Its plug-and-play design further underscores its user-friendly nature, allowing users to quickly set up and operate the device with minimal effort. Whether for research, industrial applications, or complex motion control systems, the X-LSM-SV2 is engineered to deliver precise and reliable performance, simplifying motion control for a wide range of applications.

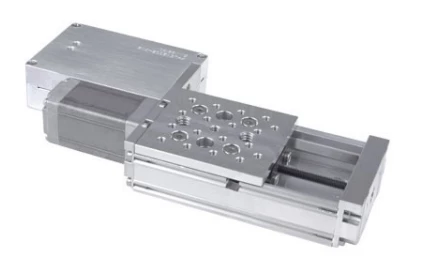

High Vacuum Motorized Linear Stage X-LSM100B-SV2
Specifications
| Number Of Axes: | One |
|---|---|
| Vacuum Grade: | 10 mbar |
| Vacuum Compatibility: | 10-6 Torr |
| Travel Range: | 25, 50, 100, 150, 200 mm |
| Load Capacity: | 10 kg |
| Maximum Speed: | 100 mm/s |
| Microstep Size: | 0.1905 µm |
| Vertical Runout: | < 8 µm |
| Horizontal Runout: | < 12 µm |
| Maximum Current Draw: | 350 mA |
| Power Supply: | 24-48 VDC |
| Motor Rated Current: | 800 mA/phase |
| Inductance: | 3.5 mH/phase |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Vacuum Compatibility: Compatible with vacuum environments up to 10-6 Torr.
- Travel Range Options: Available in 25, 50, 100, 150, and 200 mm travel options.
- Load Capacity: Supports loads up to 10 kg.
- Speed and Thrust: Achieves speeds up to 100 mm/s and thrusts up to 35 N.
- Built-in Controller: Features an integrated controller that allows for easy daisy-chaining with other Zaber products.
- Minimal Wiring: Requires only four feedthrough wires for full control of all units in a daisy-chain via a serial port (with an X-PIB adaptor).
- Compact Design: At just 21 mm high, the stage is ideal for applications needing a small profile.
- Power Efficiency: Daisy-chaining shares power, allowing multiple X-Series products to use a single power supply.
- Easy Setup: Designed for 'plug and play' operation, simplifying installation and use.
- High Precision: Offers a microstep size of 0.1905 µm with a travel range of 101.6 mm (4 inches).
- Accuracy and Repeatability: Unidirectional accuracy of 30 µm and repeatability of less than 4 µm.
- Communication Interface: Connects via RS-232 with support for Zaber ASCII and Zaber Binary protocols.
- Robust Mechanical Design: Utilizes a precision lead screw drive system and needle roller bearing guide type.
- Power Requirements: Operates on a 24-48 VDC power supply.
- Stepper Motor: Equipped with a 2-phase stepper motor rated at 800 mA/phase.
- Durable Materials: Constructed with vacuum-compatible materials to minimize outgassing.
Applications
- Vacuum Chamber Automation: Ideal for positioning and motion tasks in high vacuum experimental setups.
- Semiconductor Manufacturing: Suitable for wafer inspection and precise component alignment in vacuum environments.
- Optical Systems Alignment: Provides accurate linear motion for lens or mirror positioning within compact optical setups.
- Research Laboratories: Enables flexible automation for materials science, physics, and surface analysis experiments.
- Integration with Zaber Systems: Designed to work seamlessly with other Zaber devices for multi-axis motion solutions.
