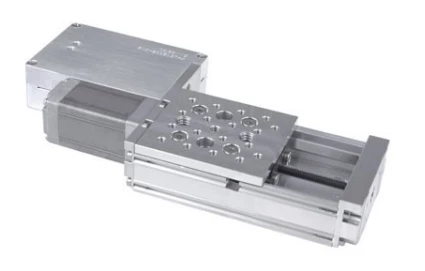

Zaber X-LSM-SV2 Vacuum-Compatible Motorized Linear Stage, 200mm Travel
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
Introducing the X-LSM-SV2, a cutting-edge motorized linear stage designed for low vacuum environments. This advanced stage is equipped with a built-in controller, making it a standalone solution that simplifies integration into your systems. With its compact design and high performance, the X-LSM-SV2 is ideal for applications requiring precise motion control in confined spaces.
The X-LSM-SV2 is engineered to be vacuum compatible, supporting environments up to 10-6 Torr. Its robust construction ensures minimal outgassing, which leads to faster pump down times, enhancing efficiency in vacuum applications. The stage offers a range of travel distances from 25 mm to 200 mm, catering to various application needs.
One of the standout features of the X-LSM-SV2 is its capability to achieve speeds of up to 100 mm/s with a thrust of up to 35 N. Despite its powerful performance, the stage maintains a low profile with a height of just 21 mm, making it suitable for installations where space is at a premium. The integration of a built-in controller allows for seamless daisy-chaining with other Zaber products, reducing the complexity of wiring and power management.
Connectivity is straightforward with the X-LSM-SV2, as it can be linked to any computer via RS-232 or USB ports. This connectivity, combined with the ability to share power across multiple units, makes the X-LSM-SV2 a versatile choice for complex setups. Designed for ease of use, it is truly a 'plug and play' device, ensuring quick and hassle-free setup and operation.
Zaber X-LSM-SV2 Vacuum-Compatible Motorized Linear Stage, 200mm Travel
Specifications |
|
|---|---|
| Number Of Axes: | One |
| Vacuum Grade: | 10 mbar |
Features
- Vacuum Compatibility: Designed for high-vacuum environments with compatibility up to 10-6 Torr.
- Travel Range Options: Available in 25, 50, 100, 150, and 200 mm travel lengths to suit various applications.
- Load Capacity: Supports loads up to 10 kg, making it versatile for different uses.
- High Speed and Thrust: Achieves speeds up to 100 mm/s and provides up to 35 N thrust.
- Integrated Controller: Features a built-in controller and can be daisy-chained with other Zaber products for streamlined control.
- Minimal Wiring: Requires only 4 feedthrough wires to control all units in the daisy-chain via a serial port (with an X-PIB adaptor).
- Compact Design: At just 21 mm high, the stage is ideal for applications requiring a minimal profile.
- Easy Connectivity: Connects to RS-232 or USB ports on any computer, facilitating easy integration.
- Shared Power Supply: Daisy-chain configuration allows multiple X-Series products to share a single power supply.
- Precision and Reliability: Offers a microstep size of 0.1905 µm, with high accuracy and repeatability for precise motion control.
- Plug and Play: Designed for straightforward setup and operation, minimizing downtime and complexity.
- Durable Construction: Made with vacuum-compatible materials to reduce outgassing and accelerate pump-down times.
Applications
- Vacuum Chamber Automation: Ideal for positioning tasks in high vacuum experimental setups.
- Semiconductor Manufacturing: Enables precise wafer lift and positioning under vacuum conditions.
- Optics and Photonics Alignment: Supports high-accuracy optical component positioning in research labs.
- Material Science Research: Suitable for sample manipulation in vacuum material analysis systems.
- Multi-Axis Motion Systems: Easily integrates as a Z-axis stage in complex automated assemblies.
Frequently Asked Questions
The X-LSM-SV2 has a load capacity of 10 kg.
The X-LSM-SV2 has a speed capability of up to 100 mm/s.
The X-LSM-SV2 requires a standard 24 V or 48 V power supply.
Yes, the X-LSM-SV2 can be daisy-chained with any other Zaber products.
The X-LSM-SV2 is only 21 mm high, making it excellent for applications where a small profile is required.
