Zaber's X-LSM-SV2 Series represents a significant advancement in the field of motion control, offering a sophisticated solution for those working with high-vacuum environments. This new iteration of motorized linear stages is designed to simplify the complexities of motion control while ensuring high performance. With its compact and robust design, the X-LSM-SV2 is perfectly suited for applications requiring precise and reliable linear motion.
One of the key highlights of the X-LSM-SV2 Series is its vacuum compatibility, capable of operating efficiently in environments with pressures as low as 10-6 Torr. This makes it an ideal choice for industries and research settings where maintaining a high vacuum is critical. The device's construction utilizes vacuum-compatible materials to minimize outgassing, thereby reducing pump down times and enhancing overall efficiency.
The X-LSM-SV2 Series stands out with its built-in controller, which allows for seamless integration and operation. The stages are designed to connect easily to a computer via RS-232 or USB ports, offering flexibility and ease of use. Furthermore, these stages can be daisy-chained with other Zaber products, enabling a streamlined setup where multiple devices can share a single power supply. This feature reduces the complexity of wiring and power management, making the X-LSM-SV2 an attractive option for scalable systems.
Despite its advanced capabilities, the X-LSM-SV2 maintains a minimal profile, with a height of just 21 mm. This compact size does not compromise its strength or speed, as it can handle loads up to 10 kg with speeds reaching up to 100 mm/s and a thrust of up to 35 N. Such specifications make it suitable for a wide range of applications where space is limited but performance cannot be compromised.
In summary, the X-LSM-SV2 Series by Zaber is designed to provide a high-performance, easy-to-use solution for motion control in vacuum environments. Its innovative design and features make it an excellent choice for professionals seeking precision, reliability, and simplicity in their motion control systems.

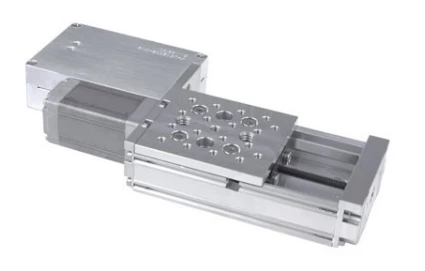

High Vacuum Motorized Linear Stage X-LSM050B-SV2
Specifications |
|
|---|---|
| Number Of Axes: | One |
| Vacuum Grade: | 10 mbar |
| Vacuum Compatibility: | 10-6 Torr |
| Travel Range: | 50.8 mm |
| Load Capacity: | 10 kg |
| Maximum Speed: | 100 mm/s |
| Power Supply: | 24-48 VDC |
| Maximum Current Draw: | 350 mA |
| Microstep Size (Default Resolution): | 0.1905 µm |
| Minimum Speed: | 0.000116 mm/s |
| Speed Resolution: | 0.000116 mm/s |
| Vertical Runout: | < 8 µm |
| Horizontal Runout: | < 12 µm |
| Motor Rated Current: | 800 mA/phase |
| Inductance: | 3.5 mH/phase |
| Default Resolution: | 1/64 of a step |
Features
- Vacuum Compatible: Designed for high-vacuum environments, compatible up to 10-6 Torr.
- Various Travel Ranges: Available in 25, 50, 100, 150, and 200 mm travel options.
- High Load Capacity: Supports loads up to 10 kg.
- Fast and Powerful: Achieves speeds up to 100 mm/s with a thrust of up to 35 N.
- Integrated Controller: Comes with a built-in controller and can daisy-chain with other Zaber products.
- Efficient Wiring: Requires only 4 feedthrough wires to control all units in a daisy-chain via a serial port (with an X-PIB adaptor).
- Compact Design: At only 21 mm high, suitable for applications requiring a small profile.
- Easy Connectivity: Connects to RS-232 or USB ports, sharing power in a daisy-chain setup.
- Precision and Accuracy: Microstep size of 0.1905 µm, with an accuracy of 15 µm and repeatability of < 4 µm.
- Robust Construction: Made with vacuum-compatible materials to minimize outgassing and enhance pump-down times.
- Wide Speed Range: Operates from a minimum speed of 0.000116 mm/s to a maximum of 100 mm/s.
- High Thrust Capabilities: Offers a peak thrust of 15 N and a maximum continuous thrust of 25 N.
- Durable Design: Features a needle roller bearing guide type for reliable performance.
- Multiple Communication Protocols: Supports Zaber ASCII and Zaber Binary communication protocols.
- Power Requirements: Operates with a 24-48 VDC power supply, drawing a maximum current of 350 mA.
- Stepper Motor: Equipped with a 2-phase stepper motor, rated at 800 mA/phase.
- Precision Lead Screw: Utilizes a precision lead screw for mechanical drive.
Applications
- Vacuum Chambers: Precise linear positioning in high-vacuum experimental setups.
- Semiconductor Manufacturing: Automated wafer handling and processing stages.
- Optical Alignment Systems: Fine-tuning and alignment of optical components in vacuum.
- Research Laboratories: Versatile motion control for experimental physics and materials science.
- Microscopy and Metrology: Accurate sample positioning within controlled environments.
Frequently Asked Questions
The X-LSM-SV2 has a load capacity of 10 kg.
The X-LSM-SV2 can reach speeds of up to 100 mm/s.
Yes, the X-LSM-SV2 can be connected to the RS-232 port or USB port of any computer.
Yes, the X-LSM-SV2 can be daisy-chained with other Zaber products and share power, making it possible for multiple X-Series products to share a single power supply.
The X-LSM-SV2 is only 21 mm high, making it excellent for applications where a small profile is required.
