Zaber's X-LSM-SV2 Series introduces a new era in vacuum-compatible, motorized linear stages, offering unparalleled control and precision in motion applications. These devices are engineered to meet the demands of high-vacuum environments, withstanding pressures down to 10-6 Torr. With travel ranges available from 25 mm to 200 mm, these stages provide flexibility for various setups, while maintaining a robust load capacity of up to 10 kg. The X-LSM-SV2 Series is designed to deliver high-speed motion up to 100 mm/s and a peak thrust of 35 N, making it ideal for tasks requiring both speed and strength.
Compact and efficient, the X-LSM-SV2 stages are built with a low profile of only 21 mm height, making them suitable for applications where space is at a premium. The integration of a built-in controller simplifies the setup process, allowing for immediate operation with minimal configuration. These stages can be easily connected to a computer via RS-232 or USB ports, and their daisy-chain capability allows multiple units to share a single power supply, streamlining the power management across your system.
Constructed from vacuum-compatible materials, the X-LSM-SV2 minimizes outgassing, ensuring faster pump-down times and maintaining the integrity of your vacuum environment. The design philosophy of 'plug and play' ensures that these stages are user-friendly, reducing the complexity typically associated with vacuum system setups. Whether you are upgrading existing equipment or developing new systems, the X-LSM-SV2 Series offers a seamless integration experience with Zaber's range of motion control products.

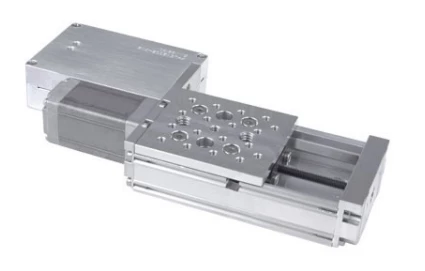

High Vacuum Motorized Linear Stage X-LSM100A-SV2
Specifications |
|
|---|---|
| Number Of Axes: | One |
| Vacuum Grade: | 10 mbar |
| Vacuum Compatibility: | 10-6 Torr |
| Travel Range: | 25, 50, 100, 150, 200 mm |
| Load Capacity: | 10 kg |
| Maximum Speed: | 100 mm/s |
| Power Supply: | 24-48 VDC |
| Vertical Runout: | < 8 µm |
| Horizontal Runout: | < 12 µm |
| Maximum Current Draw: | 350 mA |
| Motor Rated Current: | 800 mA/phase |
| Inductance: | 3.5 mH/phase |
Features
- Vacuum Compatibility: Designed to operate in environments up to 10-6 Torr.
- Travel Range Options: Available in 25, 50, 100, 150, and 200 mm travel lengths.
- Load Capacity: Supports loads up to 10 kg.
- Speed and Thrust: Achieves speeds up to 100 mm/s and thrusts up to 35 N.
- Built-in Controller: Features an integrated controller for streamlined operation.
- Daisy-Chain Capability: Easily connects with other Zaber products using only four feedthrough wires via serial port (X-PIB adaptor required).
- Compact Design: Stands at only 21 mm high, perfect for applications requiring a small profile.
- Power Efficiency: Shares power with other X-Series products, allowing multiple devices to use a single power supply.
- Material and Design: Constructed with vacuum-compatible materials to minimize outgassing and expedite pump down times.
- Plug and Play: Easy setup and operation with a standard 24 V or 48 V power supply.
- Connectivity: Connects to RS-232 or USB ports for versatile control options.
Applications
- Vacuum Chambers: Designed for precision motion control in high-vacuum experimental setups.
- Optical Alignment Systems: Ensures stable and precise optical component positioning.
- Semiconductor and Nanotechnology Research: Ideal for controlled movement in wafer inspection or lithography.
- Laboratory Automation: Automates linear positioning tasks requiring vacuum compatibility.
- Material Science Studies: Enables accurate sample translation within vacuum environments.
Frequently Asked Questions
The X-LSM-SV2 linear stage has a load capacity of 10 kg.
The X-LSM-SV2 linear stage can reach speeds of up to 100 mm/s and has a maximum thrust of 35 N.
Yes, the X-LSM-SV2 linear stage can be connected to the RS-232 port or USB port of any computer and controlled via serial port.
Yes, the X-LSM-SV2 linear stage can be daisy-chained with any other Zaber products, and multiple X-Series products can share a single power supply.
The X-LSM-SV2 linear stage is designed with vacuum compatible materials to minimize outgassing and allow for faster pump down times.
