Vertical Motorized Stages

Suruga Seiki KHE Series motorized vertical stages with a linear ball guide are a great fit for applications which require a good accuracy combined with a relatively large range. These motorized rotary stages are particularly popular in laser optics, spectroscopy, microscopy, and metrology applications. Whether you are working in an ...
  • Load Capacity:  kg
  • Vacuum Compatible: No
  • Microstep Size (default Resolution): 2 um
  • Built-in Controller: Yes
  • Travel Range: 6 mm
  • ...
Data Sheet
CZF series products are precise motorized vertical-motion stages designed and manufactured by Zolix to meet the requirements of applications with high precision and high repeated operation rate.  The materials of main body are hard black anodic-oxidation aluminum alloys which ensure higher durability and ...
  • Vacuum Compatible: Yes
  • Microstep Size (default Resolution): 0.3 um
  • Built-in Controller: No
  • Travel Range: 8-40 mm
  • Accuracy (unidirectional): ± 2 um
  • ...
Data Sheet
Suruga Seiki KHC Series motorized vertical stages with a cross roller guide are a great fit for applications which require a good accuracy combined with a relatively large range. These motorized rotary stages are particularly popular in laser optics, spectroscopy, microscopy, and metrology applications. Whether you are working in an ...
  • Vacuum Compatible: No
  • Microstep Size (default Resolution): 0.25 um
  • Built-in Controller: Yes
  • Travel Range: 4 mm
  • Accuracy (unidirectional): 7 um
  • ...
Data Sheet
Suruga Seiki KS Series motorized vertical stages are a great fit for applications which require a good accuracy combined with a relatively large range. These motorized rotary stages are particularly popular in laser optics, spectroscopy, microscopy, and metrology applications. Whether you are working in an R&D or industrial ...
  • Vacuum Compatible: No
  • Microstep Size (default Resolution): 0.73 um
  • Built-in Controller: Yes
  • Travel Range: 4 mm
  • Accuracy (unidirectional): - um
  • ...
Data Sheet
For more information about the basics of a vacuum system and considerations to keep in mind when gathering requirements for your application, read our technical article, \"Motion Device Design Considerations for Vacuum Applications\". Zaber\'s X-VSR-SV2 Series devices are high-vacuum compatible, computer-controlled, motorized ...
  • Vacuum Compatible: Yes
  • Microstep Size (default Resolution): 0.09525 um
  • Built-in Controller: Yes
  • Travel Range: 40 mm
  • Accuracy (unidirectional): 35 um
  • ...
Data Sheet
For more information about the basics of a vacuum system and considerations to keep in mind when gathering requirements for your application, read our technical article, \"Motion Device Design Considerations for Vacuum Applications\". Zaber\'s X-VSR-SV2 Series devices are high-vacuum compatible, computer-controlled, motorized ...
  • Vacuum Compatible: Yes
  • Microstep Size (default Resolution): 0.09525 um
  • Built-in Controller: Yes
  • Travel Range: 20 mm
  • Accuracy (unidirectional): 35 um
  • ...
Data Sheet

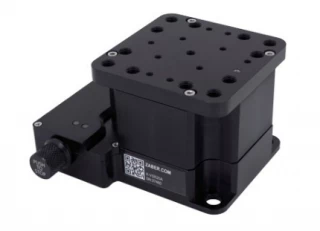

Motorized Vertical Lift Stage X-VSR40A
Zaber Technologies - Vancouver, BC
Zaber\'s X-VSR Series vertical lift stages are computer-controlled, stepper actuator driven platforms capable of moving 10 kg loads. They are stand-alone units requiring only a standard 48 V power supply. An optional indexed knob provides convenient manual control for versatile operation even without a computer. These stages connect ...
  • Vacuum Compatible: Yes
  • Microstep Size (default Resolution): 0.09525 um
  • Built-in Controller: Yes
  • Travel Range: 40 mm
  • Accuracy (unidirectional): 35 um
  • ...
Data Sheet
Motorized Vertical Lift Stage X-VSR20A
Zaber Technologies - Vancouver, BC
Zaber\'s X-VSR Series vertical lift stages are computer-controlled, stepper actuator driven platforms capable of moving 10 kg loads. They are stand-alone units requiring only a standard 48 V power supply. An optional indexed knob provides convenient manual control for versatile operation even without a computer. These stages connect ...
  • Vacuum Compatible: Yes
  • Microstep Size (default Resolution): 0.09525 um
  • Built-in Controller: Yes
  • Travel Range: 20 mm
  • Accuracy (unidirectional): 35 um
  • ...
Data Sheet

Frequently Asked Questions

Aside from the quality of the product and the reputation of the manufacturer, you will want to consider the list of the most important specifications for a motorized vertical translation stage including load capacity, travel range, max height reached, motor torque, weight, accuracy, repeatability, and parallelism. While not exhaustive, this will narrow down the list of potential candidates.

Once you find what you are looking for, simply navigate onto that product page and contact the respective supplier directly.

They find applications in any setting where a precise vertical positioning in space is required. This includes spectroscopic measurements, laser holographic writing, bio-medical experiments and instrumentation, laser crystal alignment, insertion and removal of an optical element into an optical setup and more.

Most motorized stages come with a stepping motor that require DC5~24V of power supply, but it of course varies from model to model. You should consult the specification data sheet for details or inquire from the supplier.

The price on these stages varies significantly from model to model depending on their size, build quality travel range and more. On the low end you might be able to procure these stages for under $1,000, whereas on the high end the price can ran up to several thousand dollars.

If the footprint is not an issue you can use a linear motorized stage with a 90 degree angle bracket. You should of course consult the specification sheet of that stage to ensure the vertical load capacity (when turning the stage by 90 degrees) can handle the load of your specific application.

Did You know?

Vertical Motorized Stages, also known as “motorized lab jacks”, “motorized z-jacs”, or “motorized vertical translation stages” are positioning devices that allow precise height adjustment in space. They usually come with an onboard controller and standard connections to easily be integrated into larger systems. The key parameters to consider when selecting a vertical motorized stage are the load capacity, travel range, max speed of travel, torque of the motor, voltage requirements, repeatability, accuracy and weight. While this list is not exhaustive these parameters are some of the key ones that will help you narrow down to the right product quickly. Vertical Motorized Stages find numerous applications requiring automation of vertical positioning and repositioning. This includes metrology, laser holography writing, laser alignment, spectroscopy, and bio-medical experiments. On FindLight, you can find motorized vertical translation stages from several global suppliers. You can quickly reach out to the respective suppliers directly and inquire about pricing, or technical specifications.
