Description
The Zaber X-VSR-SV2 Series offers an advanced solution for motion control in high-vacuum environments. These motorized vertical lift stages are designed to handle loads up to 10 kg, making them suitable for a variety of demanding applications. With a travel range of either 20 mm or 40 mm, these stages provide precise control and movement, ensuring accuracy and repeatability in every operation. The built-in controller simplifies setup, allowing for seamless integration with other Zaber products through daisy-chaining, which optimizes power distribution and control. These stages are engineered for ease of use and compatibility. They connect effortlessly to a computer via an RS-232 or USB port, providing a straightforward interface for control and monitoring.
The daisy-chain capability not only enhances connectivity but also reduces the complexity of wiring, as only four feedthrough wires are needed to manage all units in the chain. This feature is particularly beneficial when configuring multi-axis systems, as it allows for a streamlined setup and operation. Zaber's commitment to quality and performance is evident in the design of the X-VSR-SV2 Series. The stages are equipped with precision lead screws and ball bearings, ensuring smooth motion and minimal backlash. The devices are also compliant with RoHS and CE standards, guaranteeing that they meet stringent safety and environmental regulations.
With a vacuum compatibility of up to 10-6 Torr, these stages are ideal for use in specialized environments where maintaining a high vacuum is crucial. Whether you're working in research, manufacturing, or any field requiring precise motion control, the X-VSR-SV2 Series provides a reliable and efficient solution.

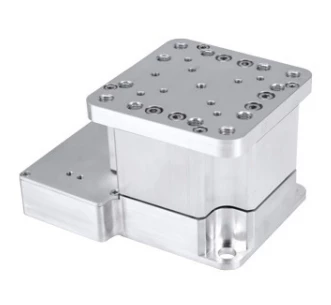

High Vacuum Motorized Vertical Stage X-VSR20A-SV2
Specifications |
|
|---|---|
| Vacuum Compatible: | Yes |
| Microstep Size (default Resolution): | 0.09525 um |
| Built-in Controller: | Yes |
| Travel Range: | 20 mm |
| Accuracy (unidirectional): | 35 um |
| Backlash: | ≤ 35 um |
| Loaded Backlash (10 N): | <10 um |
| Maximum Speed: | 48 mm/s |
| Guiding Mechanism: | Crossed Roller Slides |
| Voltage Requirement: | DC 24V |
Features
- High Vacuum Compatibility: Operates efficiently in environments up to 10-6 Torr.
- Versatile Travel Options: Choose between 20 mm or 40 mm travel ranges.
- Impressive Speed and Thrust: Achieves speeds up to 48 mm/s and thrusts up to 200 N.
- Robust Load Capacity: Supports loads up to 10 kg.
- Compact Design: Available in retracted heights of 55 mm or 85 mm.
- Integrated Controller: Features a built-in controller that easily daisy-chains with other Zaber products.
- Efficient Wiring: Requires only 4 feedthrough wires to control all units in the daisy-chain via serial port (with an X-PIB adaptor).
- Plug and Play: Designed for easy setup and operation, perfect for multi-axis systems with Z-axis configurations.
- Flexible Communication: Connects to RS-232 or USB ports and supports Zaber ASCII and Binary protocols.
- Precision Engineering: Features a precision lead screw and ball bearing guide type for accurate motion.
- Environmentally Compliant: RoHS and CE compliant, ensuring safety and environmental standards.
- Durable Construction: Built to withstand operating temperatures from 0-50 °C.
- Compact and Lightweight: Weighs only 0.560 kg, making it easy to integrate into various systems.
Applications
- Vacuum Chamber Automation: Ideal for positioning tasks in high vacuum experimental setups.
- Semiconductor Manufacturing: Enables precise wafer lift and positioning under vacuum conditions.
- Optics and Photonics Alignment: Supports high-accuracy optical component positioning in research labs.
- Material Science Research: Suitable for sample manipulation in vacuum material analysis systems.
- Multi-Axis Motion Systems: Easily integrates as a Z-axis stage in complex automated assemblies.
Frequently Asked Questions
The X-VSR-SV2 Series is capable of moving 10 kg loads.
The X-VSR-SV2 Series requires a standard 24 V or 48 V power supply.
Yes, the X-VSR-SV2 Series can be daisy-chained with any other Zaber products.
The X-VSR-SV2 Series has a maximum speed of 48 mm/s.
The X-VSR-SV2 Series uses an RS-232 communication interface and Zaber ASCII communication protocol (default).
