Carrier.OB100.C - Scanning Motion Vertical Piezoelectric Stage - Get a price quote from Zolix Instruments CO.,LTD

Name: Carrier.OB100.C - Scanning Motion Vertical Piezoelectric Stage
Brand: Zolix Instruments CO.,LTD
Availability: InStock

Description

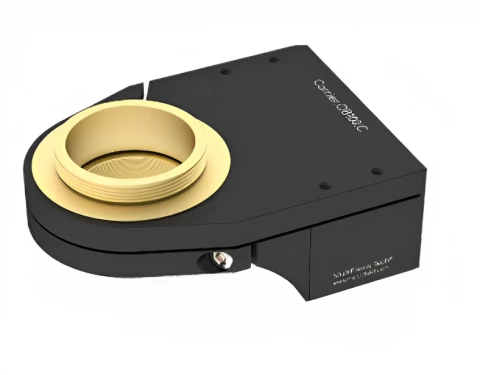

The Carrier.OB100.C objective scanner from MultiFields is a high-performance Z-axis piezo stage specifically designed for precise vertical positioning in microscopy, laser scanning, and optical metrology. With a 100 µm travel range and closed-loop resolution below 1 nm, this stage offers exceptional accuracy and responsiveness, making it ideal for automated focusing applications.

Built with durable stainless steel 304 and aluminum alloy, the Carrier.OB100.C supports payloads up to 500 g and maintains a fast settling time of 15 ms (90%), even under load. The integrated capacitive sensor ensures consistent linearity (error ≤ 0.03%) and stable closed-loop performance. The stage also maintains high dynamic responsiveness with a resonance frequency of 500 Hz unloaded and 250 Hz with 150 g load.

Compatible with the Archimedes Series Motion Controller, this objective scanner provides seamless integration into advanced automation systems. Optional configurations include versions for non-magnetic (.NM), high vacuum (.HV), and ultra-high vacuum (.UHV) environments, offering versatility for scientific and industrial use. Whether for confocal imaging, wafer inspection, or nanometer-scale metrology, the Carrier.OB100.C delivers reliable precision motion control.

Specifications

Load Capacity:	0.5 kg
Vacuum Compatible:	Yes
Microstep Size (default Resolution):	0.001 um
Built-in Controller:	Yes
Travel Range:	0.1 mm
Accuracy (unidirectional):	0.001 um
Backlash:	≤5 um
Loaded Backlash (10 N):	<10 um
Maximum Speed:	15 mm/s
Weight:	0.27 kg
Guiding Mechanism:	Other
Voltage Requirement:	Other
Resolution (close Loop):	1 nm
Resolution (open Loop):	0.2 nm
Resonance Frequency (unloaded):	500 Hz
Direction Of Movement:	Z-axis
Closed-Loop Resolution:	< 1 nm
Open-Loop Resolution:	0.2 nm
Main Body Materials:	Stainless Steel 304, Aluminum Alloy

Download Data Sheet

Features

Extended Z-Axis Travel: Offers 100 µm vertical motion with nanometer-level precision

Closed-Loop Resolution < 1 nm: Enables ultra-fine focus adjustments using capacitive sensing

Fast Settling Time: Achieves full stabilization in just 15 ms (90% response)

High Load Capacity: Supports up to 500 g without loss of performance

Vacuum & Magnetic Compatibility: Optional versions available for UHV, HV, and non-magnetic applications

Durable Build: Made from stainless steel 304 and aluminum alloy for robustness

High Resonance Frequency: 500 Hz unloaded, ensuring responsive motion control

Applications

Automated Microscopy Systems: Enables precise autofocusing and Z-stack imaging

High-Resolution Optical Inspection: Ideal for use in semiconductor and materials testing

Laser Scanning and Metrology: Provides nanometer control for precise vertical positioning

Biomedical Imaging Systems: Supports stable imaging in cellular and tissue analysis

Vacuum-Compatible Research Tools: Optional. HV and. UHV models suitable for cleanroom and cryogenic setups
