Description
The Linear25-z is a compact and high-load linear stage with closed-loop control, designed for precise and reliable motion in low-temperature environments.
With its piezoelectric motion technology and non-magnetic composition, this stage offers exceptional performance even in the presence of strong magnetic fields. It is ideal for applications requiring ultra-high vacuum compatibility and operation at very low temperatures.

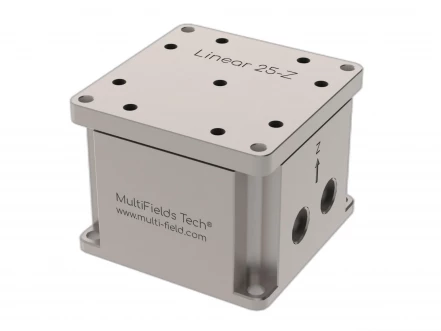

Linear25-z High-Load Piezoelectric Linear Stage Closed-Loop
Specifications
| Load Capacity: | 0.3 kg |
|---|---|
| Vacuum Compatible: | Yes |
| Microstep Size (default Resolution): | 0.1 um |
| Built-in Controller: | No |
| Travel Range: | 6 mm |
| Accuracy (unidirectional): | 2 um |
| Backlash: | Not Specified |
| Loaded Backlash (10 N): | Not Specified |
| Maximum Speed: | 2 mm/s |
| Weight: | 34 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | DC 24V |
| Temperature Range: | 14-400 K |
| Vacuum: | 2e-7 mbar |
| Max. Magnetic Field: | 18 Tesla |
| Mainbody: | Pure Ti, BeCu |
| Drive Voltage Max.: | 200 V |
| Dynamic Force: | 3 N |
| Position Encoder: | Resistive Sensor |
| Encoder Range: | 6 mm |
| Sensor Resolution: | ~ 150 nm |
| Repeatability: | 1-2 um |
Download Data Sheet
Features
- Compact design with dimensions: Dia 25*19.6 mm
- Ultra-high vacuum and very low-temperature compatible: 2 E-11 mbar and 30 mK
- Composed of non-magnetic materials (pure Ti and BeCu) for compatibility with 18 Tesla magnetic
- fields
- High-load capacity and high thrusts: 300 g and 3 N
- Long travel range: 6 mm
- Closed-loop control with position sensing up to 0.1 um resolution
Applications
- Cryogenics systems (He3 or dilution cryogenics)
- Vacuum chambers requiring ultra-high vacuum conditions
- Research and development in low-temperature physics
- Magnetic field experiments and measurements
Frequently Asked Questions
What are the dimensions of the Linear25-z piezo stage?
The dimensions of the Linear25-z piezo stage are Dia 25*19.6 mm.
Is the Linear25-z piezo stage compatible with ultra-high vacuum and very low temperature?
Yes, the Linear25-z piezo stage is compatible with ultra-high vacuum (2 E-11 mbar) and very low temperature (30 mK).
What is the maximum load and thrust capacity of the Linear25-z piezo stage?
The Linear25-z piezo stage has a maximum load capacity of 300 g and a maximum thrust capacity of 3 N.
What is the travel range of the Linear25-z piezo stage?
The Linear25-z piezo stage has a travel range of 6 mm.
Does the Linear25-z piezo stage have closed-loop control with position sensing?
Yes, the Linear25-z piezo stage has closed-loop control with position sensing up to 0.1 um resolution.
