Description
The Carrier.HS100.z.C is a compact and high-performance piezoelectric motion unit designed for room temperature (RT) applications.
The piezo-linear stage features a closed-loop control system and supports resistance type position sensing. With its ultra-quiet motion and 20 kHz drive frequency, it provides smooth and accurate movement. The Carrier.HS100.z.C is available in different versions, including non-magnetic, high vacuum, and ultra-high vacuum options, catering to various application requirements.

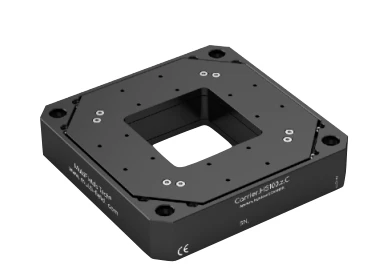

Carrier.HS100.z.C, RT·Piezo Scanning Motion - High Load with Aperture ”Carrier HS serier”
Specifications
| Load Capacity: | 5 kg |
|---|---|
| Vacuum Compatible: | Yes |
| Microstep Size (default Resolution): | 0.001 um |
| Built-in Controller: | No |
| Travel Range: | 0.1 mm |
| Accuracy (unidirectional): | Not Specified |
| Backlash: | Not Specified |
| Loaded Backlash (10 N): | Not Specified |
| Maximum Speed: | Not Specified |
| Weight: | 1 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | Other |
| Linearity Error （Z Direction): | 0.035 % |
| Repeatability: | ± 10 nm |
| Rigidity: | 2.5 N/ um |
Download Data Sheet
Features
- Travel range (Z-direction): 100 um
- Close loop resolution < 1 nm
- Max Load 3 kg
- For microscopy - super resolution solutions.
- Non-magnetic (.NM) and ultra- high vacuum (.UHV) options
Applications
- Precision positioning
- Microscopy
- Optics and photonics research
- Semiconductor manufacturing
- Life science applications
- Metrology and inspection systems
- Work in a glove box
