Description
The LDTDS-50JS is a high-performance motorized vertical stage designed to elevate your precision in various industrial automation applications. This versatile stage offers a travel range of 50mm along the Z-axis, providing smooth and controlled vertical motion.
The LDTDS-50JS boasts exceptional repeatability of 0.02mm, ensuring reliable and consistent operation. An integrated 42BYGH (1.8°) stepper motor guarantees powerful and precise movement at speeds of up to 5mm/second. The robust metal build guarantees long-lasting performance, while the compact design (80 x 120mm platform) allows for seamless integration into existing setups.
This CE and ISO certified stage adheres to global safety standards and offers optional OEM customization to perfectly match your specific requirements.

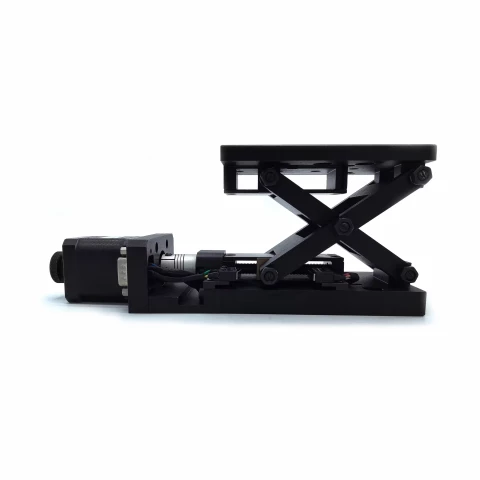

LSDS-50JS: 50mm Travel Motorized High Load Lab Jack Vertical Stage Anodized Aluminum (CE & ISO)
Specifications
| Load Capacity: | 5 kg |
|---|---|
| Vacuum Compatible: | Yes |
| Microstep Size (default Resolution): | 1.8 um |
| Travel Range: | 20 mm |
| Accuracy (unidirectional): | 0.02 um |
| Backlash: | Not Specified |
| Loaded Backlash (10 N): | <10 um |
| Maximum Speed: | 5 mm/s |
| Weight: | 1.3 kg |
| Guiding Mechanism: | Crossed Roller Slides |
| Voltage Requirement: | Other |
| Product Model: | LSDS-50JS |
| Product Model: | LSDS-90JS |
| Travel Range: | 50mm in Z Axis |
| Travel Range: | 90mm in Z Axis |
| Platform Dimension: | 80X120mm |
| Platform Dimension: | 220X140mm |
| Repeating Accuracy: | 0.02mm |
| Motor: | 42BYGH(1.8°) |
| Max Speed: | 5mm/Sec |
| Net Weight: | 1.3kg |
| Net Weight: | 4.7kg |
| Load Capacity: | 5kg |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Accurate Positioning: Achieve exceptional repeatability of 0.02mm for reliable and consistent operation.
- Efficient Motorization: The integrated 42BYGH (1.8°) stepper motor ensures powerful and precise movement at speeds of up to 5mm/second.
- Durable Construction: The robust metal build guarantees long-lasting performance in demanding environments.
- Easy Integration: Compact design (80 x 120mm platform) allows for seamless integration into existing setups.
- Customization Options: We offer OEM customization to tailor the stage to your specific requirements (Brand Name: customization).
- Global Safety Standards: CE and ISO certifications ensure compliance with international safety regulations.
Applications
- Machine vision systems
- Laser processing
- Assembly and pick-and-place operations
- 3D printing
- Material testing
- Any application requiring precise Z-axis control
Frequently Asked Questions
What is the travel range of the LDTDS-50JS?
What is the repeatability of the LDTDS-50JS?
What type of motor does the LDTDS-50JS use?
What is the maximum speed of the LDTDS-50JS?
Does the LDTDS-50JS offer customization options?
Got more questions? Use the inquiry form to ask the supplier directly.
