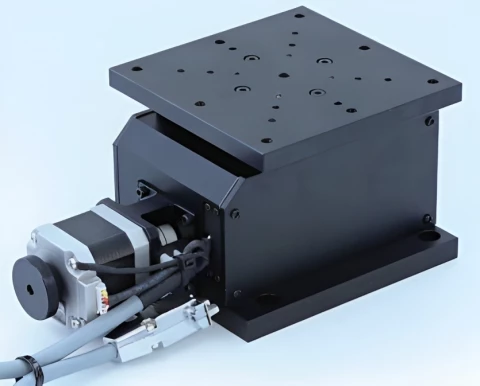

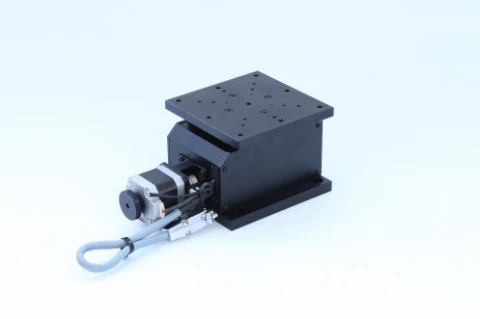

TBZF series Durable Motorized Vertical Motion Stage

Name: TBZF Series Durable Motorized Vertical Motion Stage
Brand: Zolix Instruments CO.,LTD
Availability: InStock

Description

TBZF Series Durable Motorized Vertical Motion Stage is very suitable for applications that require mid to large table platforms and high repetition rates.

Black Anodized Aluminum Body: Good appearance and good wear-resistance are enabled by employing a hard black anodic-oxidation aluminum-alloy body materials.

Precision Machining: We employ fine-grinding techniques for guide surface treatment. This is critical for providing customers with higher motion accuracy and reproducibility.

Precision Drive System: This durable motorized vertical motion stage uses 1-2mm lead-range grinding screws with nuts that are made of wear-resistant tin bronze. As an important component of the drive mechanism, they work with standard two-phase stepping motors, to ensure higher resolution and positioning accuracy.

Specifications

Load Capacity:	20 kg
Vacuum Compatible:	Yes
Microstep Size (default Resolution):	1.82 um
Built-in Controller:	No
Travel Range:	30 mm
Accuracy (unidirectional):	2.5 um
Backlash:	≤5 um
Loaded Backlash (10 N):	Not Specified
Maximum Speed:	6.5 mm/s
Weight:	5 kg
Guiding Mechanism:	Linear Slider Guides
Voltage Requirement:	DC 24V
Table Dimensions:	200 x 200 mm
Transmission Mechanism:	Grinding screw Ф12x2
Guides (guiding Mechanism):	Linear-slider guides

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

TBZF Series Durable Motorized Vertical Motion Stage features the following characteristics:

Fine-grinding screws with nuts made of wear-resistant tin bronze to provide higher durability
Wedge-type structure design to ensure higher rigidity and higher loading capability
Smooth running comes from employing linear slider guides

We currently offer the following two models for this Durable Motorized Vertical Motion Stage:

Model: TBZF10-120 | TBZF30-200
Travel Range: 10 mm | 30 mm
Table Size: 120×120 mm | 200×200 mm
Weight: 2.5 kg | 5 kg
Resolution (step/1/2-step): 1.82/0.91 um | 6.49/3.245 um
Highest Speed: 6 mm/sec | 6.5 mm/sec
Working Current: 1.7A | 2.8A
Load Capacity: 10 kg | 20 kg

Applications

This Durable Motorized Vertical Motion Stage is perfect in applications demanding ample table (baseplate) space and reproducibility.

Optical Element Alignment
Spectroscopic measurements
Astronomy
Bio-medical instrumentation
Prototyping
Photonic Equipment
Laser Crystal Alignment

Name

Work Email

Organization (recommended)

Your message to supplier

FAST RESPONSE

Ships from:

China

Sold by:

Zolix Instruments CO.,LTD ✓ Verified Supplier

On FindLight:

since 2020

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

How much weight can I put on these motorized vertical stages?

We have two models for this vertical motion stages: TBZF10-120 and TBZF30-200. The load capacity is 10 and 20 kg respectively.

Do you have quantity discounts for this vertical motorized stages?

The pricing and lead times vary from product model to model. Please send us an inquiry for a specific model and we will respond quickly.

What is the length of the cables?

The cable length for both models is 20cm.

What type of plugs do these stages use?

Both stages use 1*DB9 (pin) connectors.

How much is the Torque of this vertical motorized stage?

The Torque for the TBZF10-120 model is 0.456 N-m and for the TBZF30-200 model, the torque is 1.44 N-m

How do you measure the highest speed quoted in the specifications?

We measure the highest speed with the conditions of zero-load and motors running at 600rpm angular speed.

What is the TBZF Series Durable Motorized Vertical Motion Stage used for?

The TBZF Series Durable Motorized Vertical Motion Stage is used in applications that require mid to large table platforms and high repetition rates.

What materials are used in the construction of the TBZF Series Durable Motorized Vertical Motion Stage?

The TBZF Series Durable Motorized Vertical Motion Stage is constructed with a black anodized aluminum body for good appearance and wear-resistance.

What is the precision drive system used in the TBZF Series Durable Motorized Vertical Motion Stage?

The TBZF Series Durable Motorized Vertical Motion Stage uses 1-2mm lead-range grinding screws with nuts made of wear-resistant tin bronze, working with standard two-phase stepping motors for higher resolution and positioning accuracy.

What are the features of the TBZF Series Durable Motorized Vertical Motion Stage?

The TBZF Series Durable Motorized Vertical Motion Stage features fine-grinding screws with wear-resistant nuts, a wedge-type structure design for higher rigidity and loading capability, and smooth running with linear slider guides.

What are the available models and specifications for the TBZF Series Durable Motorized Vertical Motion Stage?

The TBZF Series Durable Motorized Vertical Motion Stage is available in two models: TBZF10-120 and TBZF30-200. The specifications include travel range, table size, weight, resolution, highest speed, working current, and load capacity.
