Zaber's X-VSR Series Vertical Lift Stages are designed to simplify motion control with precision and reliability. These computer-controlled, stepper actuator-driven platforms are perfect for applications requiring high load capacity and precise vertical movement. With a robust design capable of moving loads up to 10 kg, these stages offer a compact solution for a variety of setups. The X-VSR stages are stand-alone units that require only a standard 48 V power supply, ensuring ease of integration into existing systems.
The X-VSR Series features a built-in controller, allowing for seamless daisy-chaining with other Zaber products. This capability not only simplifies power management by sharing a single power supply across multiple devices but also enhances communication and control efficiency. The stages connect easily to any computer via RS-232 or USB ports, providing versatile operation options. For added convenience, an optional indexed knob allows for manual control, making the X-VSR Series adaptable to both automated and manual workflows.
Designed with user convenience in mind, the X-VSR Series includes secure 4-pin M8 connectors for reliable connections between units. Despite their powerful performance, these stages maintain a compact form factor, with a retracted height of just 55 mm or 85 mm. This small footprint allows for direct mounting onto Zaber's LST and LSQ series linear stages, further expanding their versatility. Like all Zaber products, the X-VSR Series is engineered for 'plug and play' simplicity, ensuring quick and hassle-free setup and operation.

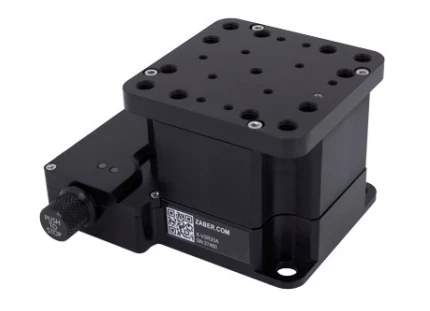

Motorized Vertical Lift Stage X-VSR40A
Specifications |
|
|---|---|
| Vacuum Compatible: | Yes |
| Microstep Size (default Resolution): | 0.09525 um |
| Built-in Controller: | Yes |
| Travel Range: | 40 mm |
| Accuracy (unidirectional): | 35 um |
| Backlash: | Other |
| Loaded Backlash (10 N): | <10 um |
| Maximum Speed: | 48 mm/s |
| Guiding Mechanism: | Crossed Roller Slides |
| Voltage Requirement: | DC 24V, DC 48V |
| Maximum Current Draw: | 950 mA |
| Power Supply: | 24-48 VDC |
| Operating Temperature Range: | 0-50 °C |
| Weight: | 0.813 kg |
Features
- Travel Options: Choose between 20 mm or 40 mm travel ranges.
- Speed and Thrust: Achieve speeds up to 48 mm/s and thrusts up to 200 N.
- Load Capacity: Handles loads up to 10 kg with ease.
- Compact Design: Features a retracted height of 55 mm or 85 mm, perfect for space-constrained setups.
- Built-in Controller: Comes with an integrated controller; easily daisy-chain with other Zaber products for streamlined operations.
- Versatile Connections: Connects via RS-232 or USB ports, with convenient locking 4-pin M8 connectors for secure connections.
- Manual Control Option: Optional indexed knob for manual operation without a computer.
- Plug and Play: Designed for easy setup and operation, compatible with Zaber's LST and LSQ series linear stages.
- High Precision: Offers a default microstep size of 0.09525 µm and repeatability of less than 1 µm.
- Robust Construction: Crossed-roller bearing guide type ensures durability and precision.
- Compliance and Safety: RoHS and CE compliant, ensuring high safety and environmental standards.
- Wide Operating Range: Operates efficiently within a temperature range of 0-50 °C.
Applications
- Automated Microscopy: Enables precise z-axis focusing and sample manipulation in imaging systems.
- Laser Processing: Ideal for adjustable vertical positioning of optics or samples in laser machining setups.
- Metrology and Inspection: Provides accurate height adjustments for part scanning and dimensional measurement.
- Research Laboratories: Suitable for experimental setups requiring compact vertical motion control.
- Multi-Axis Automation Systems: Integrates seamlessly as a vertical axis with Zaber’s linear and rotary stages.
Frequently Asked Questions
The X-VSR Series vertical lift stages are capable of moving 10 kg loads.
The X-VSR Series vertical lift stages have a travel range of 20 mm or 40 mm.
The X-VSR Series vertical lift stages have a speed of up to 48 mm/s.
The X-VSR Series vertical lift stages are computer-controlled and can be connected to the RS-232 port or USB port of any computer.
The X-VSR Series vertical lift stages have a retracted height of 55 mm (X-VSR20) or 85 mm (X-VSR40) when closed.
