Description

Zaber's X-LRQ-SV2 Series represents a breakthrough in high-vacuum, computer-controlled motion control technology. These motorized linear stages are meticulously engineered to deliver exceptional performance with high stiffness, load capacity, and longevity, all within a remarkably compact form factor. Designed as stand-alone units, they operate efficiently with a standard 24 V or 48 V power supply, making them an ideal choice for a variety of demanding applications.

These advanced stages are equipped to connect seamlessly to the RS-232 or USB port of any computer, offering the flexibility to daisy-chain with other Zaber products. This innovative daisy-chain feature not only simplifies connectivity but also allows multiple X-Series products to share a single power supply, streamlining your setup and reducing cable clutter.

Standing at a mere 36 mm high, the X-LRQ-SV2 stages are perfect for scenarios where a low profile is essential. Despite their compact size, they boast impressive capabilities, achieving speeds of up to 205 mm/s and supporting loads up to 100 kg. True to Zaber's commitment to user-friendly designs, the X-LRQ-SV2 Series is 'plug and play,' ensuring a straightforward setup and operation. Additionally, these stages can be easily configured into an XY system, broadening their versatility for complex motion control tasks.

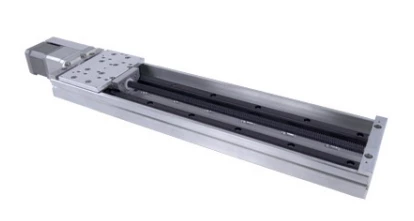

High Vacuum Motorized Linear Stage X-LRQ600AL-SV2

Specifications

Number Of Axes: One
Vacuum Grade: 10 mbar
Vacuum Compatibility: 10-6 Torr
Travel Range: 75, 150, 300, 450, 600 mm
Load Capacity: 100 kg
Maximum Speed: 205 mm/s
Power Supply: 24-48 VDC
Microstep Size: 0.09921875 µm
Minimum Speed: 0.000061 mm/s
Speed Resolution: 0.000061 mm/s
Communication Interface: RS-232
Vertical Runout: < 210 µm
Horizontal Runout: < 77 µm
Maximum Current Draw: 1200 mA
Motor Rated Current: 2100 mA/phase

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Vacuum Compatibility: Designed for high vacuum environments, compatible up to 10-6 Torr.
  • Travel Options: Available in 75, 150, 300, 450, and 600 mm travel lengths.
  • Load Capacity: Supports loads up to 100 kg.
  • Speed and Thrust: Achieves speeds up to 205 mm/s and provides up to 100 N thrust.
  • Built-in Controller: Comes with an integrated controller; can be daisy-chained with other Zaber products.
  • Efficient Wiring: Requires only 4 feedthrough wires to control all units in the daisy-chain via serial port (with an X-PIB adaptor).
  • Compact Design: Stands at only 36 mm high, ideal for applications requiring a low profile.
  • Connectivity: Connects to RS-232 or USB ports and shares power in daisy-chain configurations.
  • Plug and Play: Easy to set up and operate, designed for seamless integration.
  • Precision and Accuracy: Offers a microstep size of 0.09921875 µm with unidirectional accuracy of 150 µm and repeatability of < 2.5 µm.
  • Versatile Mounting: Features M6 and M3 threaded holes for flexible mounting options.
  • Durable Build: Equipped with recirculating ball linear guides for high stiffness and longevity.
  • Temperature Range: Operates efficiently across a wide temperature range.

Applications

  • Vacuum Chamber Automation: Reliable positioning for components in semiconductor fabrication and analysis.
  • Metrology Systems: Ensures precise linear motion for measurement and inspection equipment.
  • Optics Alignment: Facilitates stable optical component positioning in vacuum environments.
  • Scientific Research: Ideal for experiments requiring high precision under vacuum conditions.
  • XY Motion Systems: Easily integrates into multi-axis configurations for complex motion requirements.

Frequently Asked Questions

What is the load capacity of the X-LRQ-SV2 Series?
The X-LRQ-SV2 Series has a load capacity of up to 100 kg.
What is the travel range of the X-LRQ-SV2 Series?
The X-LRQ-SV2 Series has a travel range of 75, 150, 300, 450, or 600 mm.
Can the X-LRQ-SV2 Series be controlled by a computer?
Yes, the X-LRQ-SV2 Series can be connected to the RS-232 port or USB port of any computer.
What is the speed capability of the X-LRQ-SV2 Series?
The X-LRQ-SV2 Series can reach speeds up to 205 mm/s.
Can multiple X-LRQ-SV2 Series products share a single power supply?
Yes, the daisy-chain design of the X-LRQ-SV2 Series allows multiple products to share a single power supply.

Got more questions? Use the inquiry form to ask the supplier directly.
