Zaber's X-LRQ-SV2 Series introduces a breakthrough in motion control technology, offering high-vacuum, computer-controlled, motorized linear stages. These devices are engineered for high stiffness, substantial load-bearing capacity, and extended lifetime, all within a compact form factor. Designed to function as stand-alone units, they require only a standard 24 V or 48 V power supply, making them both versatile and convenient for various applications.
These stages seamlessly connect to the RS-232 or USB port of any computer, allowing for easy integration into existing systems. The ability to daisy-chain with other Zaber products is a standout feature, enabling shared power across multiple X-Series products. This not only simplifies setup but also reduces the need for multiple power sources, enhancing efficiency and reducing clutter in your workspace.
Standing at just 36 mm high, the X-LRQ-SV2 Series is ideal for environments where a low profile is essential. Despite its compact size, the series boasts remarkable performance, achieving speeds up to 205 mm/s and supporting loads up to 100 kg. True to Zaber's 'plug and play' philosophy, these stages are straightforward to set up and operate, ensuring users can quickly get their systems up and running without extensive technical knowledge.
The innovative design of the X-LRQ-SV2 Series not only facilitates high-speed operation but also allows for the creation of XY systems by bolting stages together. This flexibility makes it an excellent choice for complex motion control tasks that require precise, reliable, and scalable solutions.

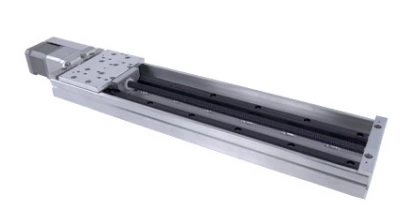

High Vacuum Motorized Linear Stage X-LRQ600BL-SV2
Specifications |
|
|---|---|
| Number Of Axes: | One |
| Vacuum Grade: | 10 mbar |
| Vacuum Compatibility: | 10-6 Torr |
| Travel Range: | 600 mm |
| Load Capacity: | 100 kg |
| Maximum Speed: | 205 mm/s |
| Maximum Current Draw: | 1200 mA |
| Minimum Speed: | 0.000303 mm/s |
| Speed Resolution: | 0.000303 mm/s |
| Vertical Runout: | < 210 µm |
| Horizontal Runout: | < 77 µm |
| Motor Rated Current: | 2100 mA/phase |
| Inductance: | 2.8 mH/phase |
Features
- Vacuum Compatibility: Suitable for high vacuum environments up to 10-6 Torr.
- Travel Range Options: Available in 75, 150, 300, 450, and 600 mm travel ranges.
- High Load Capacity: Supports loads up to 100 kg.
- Fast and Powerful: Achieves speeds up to 205 mm/s with a thrust capacity of up to 100 N.
- Integrated Controller: Features a built-in controller for seamless operation.
- Daisy-Chain Capability: Can be daisy-chained with other Zaber products, requiring only four feedthrough wires via serial port using an X-PIB adaptor.
- Compact Design: With a low profile of only 36 mm, ideal for applications requiring minimal height.
- Easy Connectivity: Connects to RS-232 or USB ports, sharing power with multiple X-Series products for efficient power management.
- Precision and Accuracy: Offers a microstep size of 0.49609375 µm and unidirectional accuracy of 90 µm.
- Repeatability and Backlash: Ensures repeatability of < 2.5 µm and backlash of < 21 µm.
- Robust Construction: Features a recirculating ball linear guide for durability and smooth operation.
- Versatile Integration: Can be bolted together into an XY system for expanded motion control applications.
- Temperature Resilience: Designed to operate effectively across a wide temperature range.
- Advanced Motion Control: Equipped with a stepper motor and precision lead screw for high-performance linear motion.
- Magnetic Home Sensor: Includes a magnetic home sensor for accurate positioning.
Applications
- Semiconductor Manufacturing: Precision positioning in high vacuum wafer processing systems.
- Vacuum Automation Systems: Reliable actuation for vacuum-compatible automation equipment.
- Research Laboratories: Ideal for beamline, synchrotron, and microscopy applications in vacuum.
- Optical Alignment: Accurate motion control for aligning optical components in vacuum environments.
- Material Science Experiments: Enables precise sample manipulation under controlled vacuum conditions.
Frequently Asked Questions
The X-LRQ-SV2 Series has a load capacity of up to 100 kg.
The X-LRQ-SV2 Series can reach speeds up to 205 mm/s.
The X-LRQ-SV2 Series requires a standard 24 V or 48 V power supply.
Yes, the X-LRQ-SV2 Series can be daisy-chained with any other Zaber products.
The X-LRQ-SV2 Series is vacuum compatible to 10-6 Torr.
