High Vacuum Motorized Linear Stage X-LRQ150BL-SV2
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
Zaber's X-LRQ-SV2 Series represents a leap forward in high-vacuum, computer-controlled motion control technology. These motorized linear stages are engineered for high stiffness, impressive load capacities, and extended lifetimes, all while maintaining a compact form factor. Designed as stand-alone units, they require only a standard 24 V or 48 V power supply, making them both efficient and versatile for various applications.
The X-LRQ-SV2 Series stages are equipped with the capability to connect seamlessly to the RS-232 or USB ports of any computer. This connectivity allows for easy integration into existing systems and the ability to daisy-chain with other Zaber products. The daisy-chain feature not only simplifies the setup but also enables power sharing among multiple X-Series products, reducing the need for multiple power supplies.
With a height of just 36 mm, these vacuum stages are ideal for scenarios where a low profile is essential. Despite their compact size, they deliver impressive performance, achieving speeds up to 205 mm/s and supporting loads up to 100 kg. The X-LRQ-SV2 Series is designed with user-friendliness in mind, offering a 'plug and play' experience that simplifies both setup and operation. Additionally, these stages can be easily configured into an XY system by bolting them together, providing further versatility for complex motion control tasks.

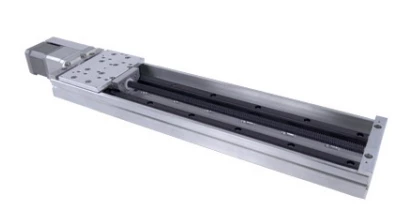

High Vacuum Motorized Linear Stage X-LRQ150BL-SV2
Specifications |
|
|---|---|
| Number Of Axes: | One |
| Vacuum Grade: | 10 mbar |
| Vacuum Compatibility: | 10-6 Torr |
| Travel Range: | 75, 150, 300, 450, 600 mm |
| Load Capacity: | 100 kg |
| Maximum Speed: | 205 mm/s |
| Power Supply: | 24-48 VDC |
| Microstep Size: | 0.49609375 µm |
| Minimum Speed: | 0.000303 mm/s |
| Speed Resolution: | 0.000303 mm/s |
| Communication Interface: | RS-232 |
| Guide Type: | Recirculating Ball Linear Guide |
| Vertical Runout: | < 190 µm |
| Horizontal Runout: | < 31 µm |
| Maximum Current Draw: | 1200 mA |
| Motor Type: | Stepper (2 phase) |
| Motor Rated Current: | 2100 mA/phase |
| Inductance: | 2.8 mH/phase |
Features
- Vacuum Compatibility: Designed for high vacuum environments up to 10-6 Torr.
- Multiple Travel Options: Available in 75, 150, 300, 450, and 600 mm travel lengths to suit various applications.
- Robust Load Capacity: Supports loads up to 100 kg, making it ideal for heavy-duty applications.
- High Speed and Thrust: Achieves speeds up to 205 mm/s and thrusts up to 100 N for efficient operation.
- Integrated Controller: Built-in controller allows easy daisy-chaining with other Zaber products for streamlined control.
- Minimal Wiring: Requires only four feedthrough wires to control all units in a daisy-chain setup via serial port (with an X-PIB adaptor).
- Compact Design: With a height of only 36 mm, it is perfect for applications requiring a low profile.
- Plug and Play Setup: Easy to set up and operate, designed for quick integration into systems.
- High Precision: Features a microstep size of 0.49609375 µm, ensuring precise movements.
- Durable Construction: Equipped with a recirculating ball linear guide for enhanced durability and performance.
- Communication Interface: Connects via RS-232 with support for Zaber ASCII and Zaber Binary protocols.
- Versatile Power Options: Operates on a standard 24 V or 48 V power supply, sharing power in daisy-chained setups.
Applications
- Vacuum System Automation: Precision positioning for high-vacuum chambers and experimental setups.
- Semiconductor Manufacturing: Ideal for wafer handling and inspection requiring compact, precise stages.
- Optical Alignment Systems: Ensures stable and accurate optical component positioning in confined environments.
- Material Testing and Metrology: Suitable for high-load linear motion applications in vacuum testing rigs.
- Research and Development Labs: Facilitates automated experimental workflows with reliable performance.
Frequently Asked Questions
The X-LRQ-SV2 Series linear stage has a load capacity of up to 100 kg.
The X-LRQ-SV2 Series linear stage can achieve speeds up to 205 mm/s.
The default resolution of the X-LRQ-SV2 Series linear stage is 0.49609375 µm.
Yes, the X-LRQ-SV2 Series linear stages can be daisy-chained with other Zaber products and share power, making it possible for multiple X-Series products to share a single power supply.
The X-LRQ-SV2 Series linear stage has an accuracy of 25 µm (unidirectional).
