High Vacuum Motorized Linear Stage X-LRQ300AL-SV2
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
Zaber's X-LRQ-SV2 Series represents a breakthrough in high-vacuum, computer-controlled, motorized linear stages. These devices are engineered to deliver exceptional stiffness, load capacity, and longevity, all within a compact, low-profile design. Standing at just 36 mm high, these stages are ideal for applications requiring a streamlined form factor. The built-in controller simplifies setup, allowing for easy integration into existing systems using only a standard 24 V or 48 V power supply.
Designed with versatility in mind, the X-LRQ-SV2 stages can be connected via RS-232 or USB ports to any computer. The innovative daisy-chain capability means that multiple Zaber products can be linked together, sharing both data and power. This feature greatly simplifies system architecture, reducing the number of required power supplies and enhancing overall efficiency.
Performance is at the core of the X-LRQ-SV2 Series, offering speeds up to 205 mm/s and the ability to handle loads up to 100 kg. This makes them suitable for a wide range of demanding applications. The stages are engineered to be 'plug and play,' ensuring a straightforward setup process. Moreover, the design allows for easy assembly into XY systems, providing further flexibility for complex motion control tasks.
In addition to their impressive mechanical capabilities, these stages are designed to operate in high-vacuum environments up to 10-6 Torr. This makes them particularly well-suited for specialized applications where maintaining a vacuum is critical. With a focus on reliability and ease of use, Zaber's X-LRQ-SV2 Series is an excellent choice for those looking to simplify and enhance their motion control systems.

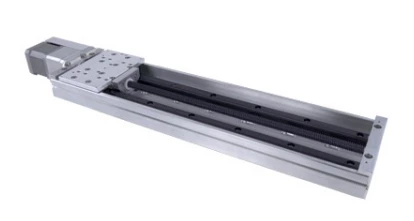

High Vacuum Motorized Linear Stage X-LRQ300AL-SV2
Specifications |
|
|---|---|
| Number Of Axes: | One |
| Vacuum Grade: | 10 mbar |
| Vacuum Compatibility: | 10-6 Torr |
| Travel Range: | 300 mm |
| Load Capacity: | 100 kg |
| Maximum Speed: | 205 mm/s |
| Power Supply: | 24-48 VDC |
| Microstep Size: | 0.09921875 µm |
| Minimum Speed: | 0.000061 mm/s |
| Speed Resolution: | 0.000061 mm/s |
| Communication Interface: | RS-232 |
| Communication Protocol: | Zaber ASCII, Zaber Binary |
| Vertical Runout: | < 190 µm |
| Horizontal Runout: | < 31 µm |
| Maximum Current Draw: | 1200 mA |
| Motor Rated Current: | 2100 mA/phase |
Features
- Vacuum Compatibility: Designed for high vacuum environments, compatible up to 10-6 Torr.
- Travel Range: Available in multiple travel lengths: 75, 150, 300, 450, and 600 mm.
- Load Capacity: Supports up to 100 kg load, with a maximum centered load of 1000 N.
- Speed and Thrust: Achieves speeds up to 205 mm/s and a peak thrust of 100 N.
- Built-in Controller: Integrated controller allows for easy daisy-chaining with other Zaber products.
- Minimal Wiring: Requires only 4 feedthrough wires for control via serial port using an X-PIB adaptor.
- Compact Design: Low profile at only 36 mm high, ideal for applications requiring a compact form factor.
- Plug and Play: Easy setup and operation with standard 24 V or 48 V power supply.
- Communication Interface: Connects via RS-232 or USB, supporting Zaber ASCII and Zaber Binary protocols.
- Precision and Accuracy: Features a microstep size of 0.09921875 µm, unidirectional accuracy of 90 µm, and repeatability of < 2.5 µm.
- Mechanical Drive System: Utilizes a precision lead screw and recirculating ball linear guide for reliable motion.
- Home Sensing: Equipped with a magnetic home sensor for precise positioning.
- Mounting Interface: Includes M6 and M3 threaded holes for versatile mounting options.
- Power and Current: Operates with a maximum current draw of 1200 mA, powered by 24-48 VDC.
- Temperature Range: Suitable for a wide range of operating temperatures.
Applications
- Vacuum-Based Research Systems: For precise positioning within high vacuum chambers in physics and materials labs.
- Semiconductor Manufacturing: Enables accurate wafer positioning and alignment under vacuum conditions.
- Optics and Photonics Alignment: Ideal for aligning optical components in vacuum environments.
- Surface Metrology and Profiling: Facilitates high-resolution scanning of surfaces under vacuum.
- Advanced Microscopy Systems: Supports sample positioning in electron and ion beam microscopes.
Frequently Asked Questions
The X-LRQ-SV2 Series device has a load capacity of up to 100 kg.
The X-LRQ-SV2 Series device can achieve speeds up to 205 mm/s.
Yes, the X-LRQ-SV2 Series device can be daisy-chained with any other Zaber products.
The X-LRQ-SV2 Series device requires only a standard 24 V or 48 V power supply.
The X-LRQ-SV2 Series device is only 36 mm high, making it excellent for applications where a low profile is required.
