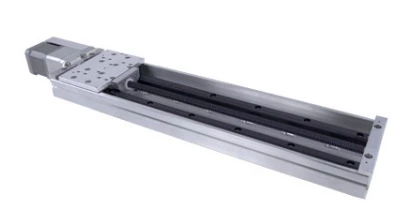

The Zaber X-LRQ-SV2 Series represents a remarkable advancement in vacuum-compatible, computer-controlled motion control technology. These motorized linear stages are engineered to deliver high stiffness and load capacity while maintaining a compact size, making them ideal for a wide range of applications.
Designed to operate in high-vacuum environments up to 10-6 Torr, these stages are built to withstand demanding conditions without compromising performance. Each unit in the X-LRQ-SV2 Series is a stand-alone device that requires only a standard 24 V or 48 V power supply. The stages are equipped with a built-in controller, allowing for seamless integration with other Zaber products through a daisy-chain configuration. This setup not only simplifies the wiring process but also enables multiple devices to share a single power supply, reducing the complexity of the system.
Standing at just 36 mm in height, these stages are perfect for applications that demand a low-profile solution. The innovative design of the X-LRQ-SV2 Series allows for impressive speeds of up to 205 mm/s and can handle loads up to 100 kg. As with all Zaber products, these stages are designed for 'plug and play' functionality, ensuring they are straightforward to set up and operate. Additionally, they can be easily configured into an XY system by bolting multiple stages together, providing flexibility for various motion control needs.
In summary, the Zaber X-LRQ-SV2 Series offers a sophisticated solution for motion control in vacuum environments, combining high performance, ease of use, and robust construction in a compact package.
High Vacuum Motorized Linear Stage X-LRQ150AL-SV2
Specifications |
|
|---|---|
| Number Of Axes: | One |
| Vacuum Grade: | 10 mbar |
| Vacuum Compatibility: | 10-6 Torr |
| Travel Range: | 75, 150, 300, 450, 600 mm |
| Load Capacity: | 100 kg |
| Maximum Speed: | 205 mm/s |
| Power Supply: | 24-48 VDC |
| Microstep Size: | 0.09921875 µm |
| Minimum Speed: | 0.000061 mm/s |
| Speed Resolution: | 0.000061 mm/s |
| Guide Type: | Recirculating Ball Linear Guide |
| Vertical Runout: | < 190 µm |
| Horizontal Runout: | < 31 µm |
| Maximum Current Draw: | 1200 mA |
| Motor Rated Current: | 2100 mA/phase |
Features
- Vacuum Compatibility: Suitable for high vacuum environments up to 10-6 Torr.
- Versatile Travel Options: Available in 75, 150, 300, 450, and 600 mm travel ranges.
- Robust Load Capacity: Supports loads up to 100 kg.
- High Speed and Thrust: Achieves speeds up to 205 mm/s and thrust up to 100 N.
- Integrated Controller: Comes with a built-in controller that can daisy-chain with other Zaber products.
- Efficient Wiring: Requires only 4 feedthrough wires to control all daisy-chained units via serial port (with an X-PIB adaptor).
- Compact Design: At only 36 mm high, ideal for applications needing a low profile.
- Easy Connectivity: Connects to RS-232 or USB ports and shares power across multiple units.
- Precision and Accuracy: Features a microstep size of 0.09921875 µm, unidirectional accuracy of 45 µm, and repeatability of < 2.5 µm.
- Durable Construction: Uses a recirculating ball linear guide for enhanced performance.
- Advanced Motion Control: Maximum centered load of 1000 N and cantilever load up to 3000 N•cm.
- Temperature Resilience: Operates efficiently across a wide temperature range.
- Plug and Play: Designed for easy setup and operation, compatible with Zaber's 'plug and play' system.
- Power Specifications: Operates with a 24-48 VDC power supply, with a maximum current draw of 1200 mA.
- Motor Specifications: Equipped with a 2-phase stepper motor with 2100 mA/phase rated current and 2.8 mH/phase inductance.
- Mounting Flexibility: Features M6 and M3 threaded holes for versatile mounting options.
- Home Sensing: Includes a magnetic home sensor for precise positioning.
Applications
- Vacuum Automation Systems: Ideal for precise positioning in high-vacuum chambers
- Semiconductor Manufacturing: Supports wafer inspection and lithography alignment
- Optical Alignment: Enables stable and repeatable motion for optics setups in research
- Metrology and Inspection: Provides accurate linear motion for measurement systems
- Laboratory Research: Integrates into experimental setups requiring clean and vacuum-compatible motion control
Frequently Asked Questions
The X-LRQ-SV2 Series has a load capacity of up to 100 kg.
The X-LRQ-SV2 Series can achieve speeds up to 205 mm/s.
Yes, the X-LRQ-SV2 Series can be connected to the RS-232 port or USB port of any computer.
The X-LRQ-SV2 Series is only 36 mm high, making it excellent for applications where a low profile is required.
Yes, the X-LRQ-SV2 Series can be daisy-chained with any other Zaber products, and the daisy-chain shares power, making it possible for multiple X-Series products to share a single power supply.
