Description

Zaber's X-LRQ-SV2 Series offers an innovative solution for high-vacuum, computer-controlled motion applications. These motorized linear stages are designed with high stiffness and load capabilities, ensuring a long lifespan in a compact form. The stages operate as stand-alone units, requiring only a standard 24 V or 48 V power supply, making them both versatile and convenient for various settings.

These stages are designed to easily connect to the RS-232 or USB port of any computer, allowing for seamless integration into existing systems. Additionally, they can be daisy-chained with other Zaber products, enabling shared power usage among multiple devices. This feature simplifies the setup process and reduces the need for multiple power supplies, enhancing the efficiency of your motion control system.

With a low profile of just 36 mm, the X-LRQ-SV2 Series is ideal for applications that require a compact design without compromising on performance. The stages are capable of achieving speeds up to 205 mm/s and can handle loads up to 100 kg, making them suitable for demanding tasks. Zaber's commitment to 'plug and play' functionality ensures that the X-LRQ-SV2 Series is user-friendly and straightforward to operate, even for those new to motion control systems.

The X-LRQ-SV2 Series is designed to meet the needs of various applications, particularly where vacuum compatibility is essential. Its ability to operate in high-vacuum environments (up to 10-6 Torr) makes it a reliable choice for specialized settings. Whether you are setting up a new system or integrating into an existing one, the X-LRQ-SV2 Series provides a robust and efficient solution for motion control needs.

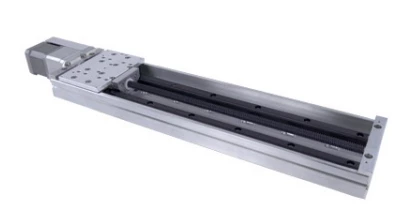

High Vacuum Motorized Linear Stage X-LRQ075AL-SV2

Specifications

Number Of Axes: One
Vacuum Grade: 10 mbar
Vacuum Compatibility: 10-6 Torr
Travel Range: 75, 150, 300, 450, 600 mm
Load Capacity: 100 kg
Speed: Up to 205 mm/s
Power Supply: 24-48 VDC
Microstep Size: 0.09921875 µm
Minimum Speed: 0.000061 mm/s
Speed Resolution: 0.000061 mm/s
Communication Interface: RS-232
Vertical Runout: < 190 µm
Horizontal Runout: < 31 µm
Pitch: 0.034°
Roll: 0.015°
Yaw: 0.044°
Maximum Current Draw: 1200 mA
Motor Rated Current: 2100 mA/phase
Inductance: 2.8 mH/phase

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Vacuum Compatibility: Designed for high-vacuum environments up to 10-6 Torr.
  • Travel Options: Available in 75, 150, 300, 450, and 600 mm travel lengths.
  • Load Capacity: Capable of supporting loads up to 100 kg.
  • High Speed and Thrust: Achieves speeds up to 205 mm/s and thrusts up to 100 N.
  • Built-in Controller: Integrated controller allows for easy daisy-chaining with other Zaber products.
  • Minimal Wiring: Requires only 4 feedthrough wires to control all units in a daisy-chain via serial port (with an X-PIB adaptor).
  • Compact Design: With a height of just 36 mm, ideal for low-profile applications.
  • Plug and Play: Easy setup and operation with standard 24 V or 48 V power supply.
  • Versatile Connectivity: Connects via RS-232 or USB ports and can share power in a daisy-chain configuration.
  • Precision and Accuracy: Features microstep size of 0.09921875 µm, unidirectional accuracy of 23 µm, and repeatability of < 2.5 µm.
  • Robust Mechanical Design: Utilizes a precision lead screw and recirculating ball linear guide for smooth motion.
  • Advanced Sensing and Interface: Includes magnetic home sensor and supports Zaber ASCII and Binary communication protocols.

Applications

  • Vacuum Motion Systems: Ideal for high-vacuum positioning in scientific instruments and chambers.
  • Automated XY Platforms: Combines with other stages for multi-axis precision motion.
  • Research and Development Labs: Enables accurate sample manipulation under vacuum conditions.
  • Optical Alignment Systems: Ensures stable and precise positioning for optical components.
  • Semiconductor and Material Testing: Supports high-load sample movement in vacuum testing setups.

Frequently Asked Questions

What is the load capacity of the X-LRQ-SV2 Series?
The X-LRQ-SV2 Series has a load capacity of up to 100 kg.
Can the X-LRQ-SV2 Series be controlled by a computer?
Yes, the X-LRQ-SV2 Series can be connected to the RS-232 port or USB port of any computer for computer-controlled motion.
What is the speed capability of the X-LRQ-SV2 Series?
The X-LRQ-SV2 Series has a speed capability of up to 205 mm/s.
What is the height of the X-LRQ-SV2 Series?
The X-LRQ-SV2 Series is only 36 mm high, making it an excellent choice for applications where a low profile is required.
Can the X-LRQ-SV2 Series be used in vacuum applications?
Yes, the X-LRQ-SV2 Series is vacuum compatible to 10-6 Torr and is suitable for motion control in vacuum applications.
