Description
Zaber's X-LRQ-SV2 Series represents a significant advancement in high-vacuum, computer-controlled, motorized linear stages. These devices are engineered with a focus on achieving high stiffness, load capacity, and longevity, all while maintaining a compact form factor. The X-LRQ-SV2 Series stands as a testament to Zaber's commitment to providing reliable and efficient motion control solutions. Designed to operate as stand-alone units, they require only a standard 24 V or 48 V power supply, making them incredibly versatile and easy to integrate into existing systems.
One of the standout features of these stages is their ability to connect seamlessly to the RS-232 or USB port of any computer. This connectivity allows for easy daisy-chaining with other Zaber products, enabling shared power among multiple X-Series products with a single power supply. Such a feature simplifies the setup process and reduces the complexity of managing multiple devices, making the X-LRQ-SV2 Series ideal for both new and existing systems.
Despite their robust capabilities, the X-LRQ-SV2 stages maintain a remarkably low profile, standing at only 36 mm high. This makes them perfect for applications where space is at a premium. The innovative design supports speeds up to 205 mm/s and can handle loads up to 100 kg, providing both speed and strength in a compact package. As with all Zaber products, the X-LRQ-SV2 Series is designed for 'plug and play' ease of use, ensuring that setup and operation are straightforward. Additionally, these stages can be easily configured into an XY system, offering further flexibility and adaptability for complex motion control tasks.

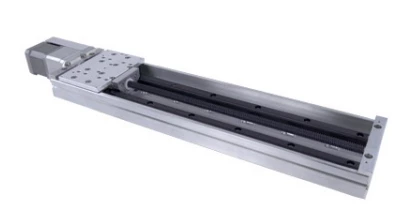

High Vacuum Motorized Linear Stage X-LRQ075BL-SV2
Specifications |
|
|---|---|
| Number Of Axes: | One |
| Vacuum Grade: | 10 mbar |
| Vacuum Compatibility: | 10-6 Torr |
| Travel Range: | 75, 150, 300, 450, 600 mm |
| Load Capacity: | 100 kg |
| Speed: | 205 mm/s |
| Power Supply: | 24-48 VDC |
| Microstep Size: | 0.49609375 µm |
| Maximum Speed: | 205 mm/s |
| Minimum Speed: | 0.000303 mm/s |
| Speed Resolution: | 0.000303 mm/s |
| Communication Interface: | RS-232 |
| Communication Protocol: | Zaber ASCII, Zaber Binary |
| Guide Type: | Recirculating Ball Linear Guide |
| Vertical Runout: | < 190 µm |
| Horizontal Runout: | < 31 µm |
| Motor Rated Current: | 2100 mA/phase |
| Inductance: | 2.8 mH/phase |
Features
- Vacuum Compatibility: High vacuum compatible up to 10-6 Torr, ideal for specialized applications.
- Travel Range Options: Available in 75, 150, 300, 450, and 600 mm travel ranges to suit various needs.
- Impressive Load Capacity: Supports up to 100 kg load capacity, ensuring robust performance.
- High Speed and Thrust: Achieves speeds up to 205 mm/s and thrust up to 100 N, enhancing productivity.
- Built-in Controller: Features an integrated controller, allowing easy daisy-chaining with other Zaber products.
- Minimal Wiring: Only 4 feedthrough wires required for control via serial port, simplifying setup.
- Compact Design: At just 36 mm high, these stages are perfect for low-profile applications.
- Easy Connectivity: Connects to RS-232 or USB ports, enabling seamless integration with computers.
- Power Sharing: Daisy-chain shares power, allowing multiple X-Series products to use a single power supply.
- Precision and Accuracy: Offers a microstep size of 0.49609375 µm and unidirectional accuracy of 15 µm.
- Reliable Repeatability: Ensures repeatability of less than 2.5 µm for consistent performance.
- Durable Construction: Built with a recirculating ball linear guide for long-lasting reliability.
- Versatile Mounting: Features M6 and M3 threaded holes for easy installation.
- Advanced Motion Control: Magnetic home sensor and precision lead screw drive system for optimal control.
- Wide Operating Temperature Range: Designed to perform in diverse environments.
Applications
- Vacuum Semiconductor Manufacturing: Ideal for wafer positioning and microfabrication in vacuum chambers.
- Optical Alignment Systems: Provides precise linear positioning for optics within vacuum setups.
- Research Laboratories: Enables accurate sample or detector positioning in high-vacuum experiments.
- Automated Assembly in Vacuum: Supports motion automation in vacuum-based assembly lines.
- XY Stage Configurations: Easily combines with other X-LRQ stages for multi-axis vacuum applications.
Frequently Asked Questions
The X-LRQ-SV2 series device has a load capacity of up to 100 kg.
The X-LRQ-SV2 series device can reach speeds up to 205 mm/s.
The X-LRQ-SV2 series device requires a standard 24 V or 48 V power supply.
Yes, the X-LRQ-SV2 series device can be daisy-chained with any other Zaber products.
The X-LRQ-SV2 series device is only 36 mm high, making it excellent for applications where a low profile is required.
