SH30.xyz.C-RT Piezo Scanning Motion Solution High Load “SH Series“

Name: SH30.xyz.C-RT Piezo Scanning Motion Solution High Load “SH Series“
Brand: Zolix Instruments CO.,LTD
Availability: InStock

Description

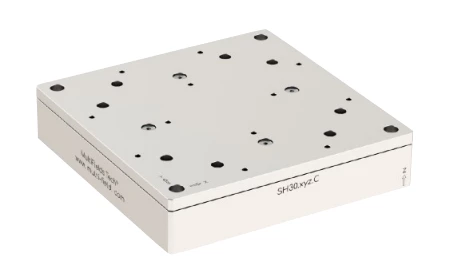

The Piezo·XYZ Scanner SH30.xyz.C is a high-performance, three-axis motion control stage designed for precision applications in high-vacuum and ultra-high-vacuum environments.

With a compact footprint (160 mm x 160 mm x 35 mm), it offers impressive travel ranges of 30 µm x 30 µm x 15 µm along the X, Y, and Z axes. The scanner's closed-loop resolution is < 0.3 nm, providing exceptional accuracy for nanoscale positioning.

This scanner is ideal for applications requiring high precision and can support loads up to 10 kg, making it suitable for both lightweight and heavy components. It is compatible with high-vacuum (.HV) and ultra-high-vacuum (.UHV) environments, ensuring optimal performance in a range of scientific and industrial applications.

The SH30.xyz.C is equipped with a capacitive sensor for enhanced position feedback and repeatability, and it operates over a wide temperature range of -20°C to 80°C.

Whether for nanotechnology, semiconductor research, or other precision applications, the SH30.xyz.C delivers reliable and high-precision motion control.

Specifications

Axes Of Motion:	One
Travel Range:	0.03 mm
Load Capacity (Horizontal):	10 kg
Load Capacity (Vertical):	Not Specified
Max Speed:	Not Specified
Weight:	4 kg
Guiding Mechanism:	Other
Voltage Requirement:	Other
Resonance Frequency:	500 Hz
Max Operating Voltage:	150 V
Movement Directions:	X, Y, Z
Footprint:	160 x 160 x 35 mm
Mainbody Materials:	Stainless Steel
Max Operating Voltage:	150 V
Operating Temperature Range:	-20° to +80 °C
Cable Length:	1 m with D-Sub 3W3 connectors

Download Data Sheet

Features

Compact Design: Footprint of 160 mm x 160 mm x 35 mm for easy integration into lab setups

High-Precision Motion: Travel range of 30 µm x 30 µm x 15 µm with < 0.3 nm closed-loop resolution

High Load Capacity: Supports up to 10 kg, suitable for heavy components

Capacitive Sensor: Provides enhanced position feedback for superior accuracy

Vacuum Compatibility: Available in .HV (high vacuum) and .UHV (ultra-high vacuum) versions

Wide Operating Temperature: Functions in a temperature range from -20°C to 80°C

High Resonance Frequency: Unloaded resonance frequency of 500 Hz for fast response times

Low Weight: Lightweight design with a weight of 4 kg, easy to handle and integrate.

Max Operating Voltage: 150 V for flexible power input requirements

Applications

Nanotechnology Research: Ideal for precise positioning of nanoscale components

Semiconductor Fabrication: Excellent for applications requiring high load capacity and precision motion control

High-Vacuum and UHV Environments: Works in ultra-high vacuum and high-vacuum conditions for research and testing

Surface Science Experiments: Suitable for experiments requiring accurate and repeatable 3D movement

Microscopy and Imaging Systems: Ideal for precise stage movement in microscopy and related systems
