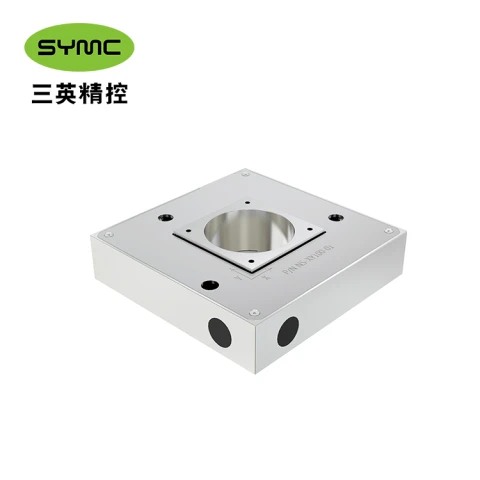

NS-XY100-01 XY-axis Nano Stage
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Sanying MotionControl Instruments Ltd. -
On FindLight:
since 2025
Description
The NS-XY100-01 XY-axis Nano Positioning Stage is a state-of-the-art solution for those requiring ultra-precision in motion control. Developed by Sanying Motion Control Instruments Ltd., this product exemplifies high precision and reliability in two-dimensional nanopositioning. The stage is designed with an integrated XY dimension, offering a closed-loop travel range of 100 x 100 micrometers. This remarkable range ensures that even the most intricate tasks can be executed with unparalleled accuracy.
Engineered for precision, the NS-XY100-01 boasts a closed-loop resolution of up to 0.5 nanometers. This feature guarantees that the positioning stage can meet the demands of the most exacting applications, providing a stable and accurate platform for various high-tech processes. With a load capacity of 1 kg, it is versatile enough to support a wide array of components and experimental setups.
Sanying Motion Control Instruments Ltd. is renowned for its commitment to quality and innovation in ultra-precision motion control products. As a professional manufacturer, they ensure that each product is crafted with meticulous attention to detail, ensuring optimal performance in diverse environments. Located in Tianjin, China, the company continues to set the standard in motion control technology.
NS-XY100-01 XY-axis Nano Stage
Specifications |
|
|---|---|
| Axes Of Motion: | Two |
| Travel Range: | 0.1 mm |
| Load Capacity (Horizontal): | 1 kg |
| Load Capacity (Vertical): | 1 kg |
| Weight: | 0.43 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | Other |
| Range: | 100/100 μm |
| Load: | 1 kg |
| Close-loop Resolution: | 0.5 nm |
Features
- Range 100/100μm
- Load 1kg
- Close-loop resolution up to 0.5nm
Applications
- Microscopy Imaging
- Laser Processing
- Optical Alignment
- Grating Writing
Frequently Asked Questions
The NS-XY100-01 is a high-precision two-dimensional nanopositioning stage designed for ultra-precision motion control, with integrated XY dimensions.
The closed-loop travel range of the NS-XY100-01 can reach 100 x 100 μm.
The NS-XY100-01 can handle a load of up to 1 kg.
The NS-XY100-01 has a closed-loop resolution of up to 0.5 nm.
The NS-XY100-01 is suitable for applications such as microscopy imaging, laser processing, optical alignment, and grating writing.
The NS-XY100-01 is manufactured by Sanying Motion Control Instruments Ltd.
